Parker Fittings接头
Hose Fittings

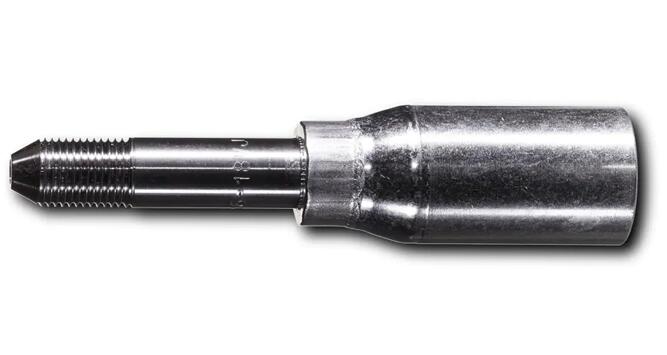

Crimped Thermoplastic UHP Hose Fittings, JX Series

Parker High Pressure JX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure up to 160 MPa.





Parker Polyflex High Pressure JX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.



Crimped Thermoplastic UHP Hose Fittings, JX Series



Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Marine

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Construction and shipbuilding industry
- Industrial cleaning
- Water jetting
- Hydrodemolition and removal accumulated dirt
- Media transfer (petroleum, synthetic hydraulic fluids, gas and chemical fluids)
- Suitable for hydraulic pre-tensioning equipment, test rigs, offshore
- Suitable for hose types with working pressure up to 160 MPa (23.200 psi)



Technical Specifications

Nominal Hose Inside Diameter: 12, 20, 25 mm
Hose I.D. (size): -8, -12, -16
Hose Inside Diameter: 1/2, 3/4, 1 inch
Connection Thread Size: 1 - 12, 1 5/16-12, NA, 1 - 14 inch, NA, 24x1.5, 36x2, 42x2, 18x1.5, 20x1.5 mm
Connection Type: UNF, Metric, UNF-LH, Metric-LH
Length: 86, 90, 96, 108, 121, 133, 146, 141 mm, 3,4, 3,5, 3,8, 4,3, 4,8, 5,2, 5,7, 5,6 inch
Maximum Operating Pressure: 26100, 23200, 21750, 20000, 36250, 43500 psi
Shape: Straight
Product Style: Type ?M? female swivel, Metric female swivel heavy series with O-ring, Medium pressure tube nipple, High pressure tube nipple metric ? LH thread
Materials of Construction: Nipple: very high strength stainless steel
Shell and nut: high strength carbon steel, zinc plated, Nipple: very high strength stainless steel
Shell: stainless steel, Nipple: very high strength stainless steel
Shell: high strength carbon steel, zinc plated



Crimped Thermoplastic UHP Hose Fittings, JX Series 型号

Part Maximum Working Pressure (MPa) Hose I.D. (mm) Fitting Type
1AYJX-11-08W 180 12.7 AY
1AYJX-16-12W 160 19 AY
1C9JX-16-08W 180 12.7 C9
1C9JX-25-12W 160 19 C9
1C9JX-30-16W 150 25.4 C9
1Y2JX-16-12W 137.9 19 Y2
1YMJX-12-08W 300 12.7 YM
