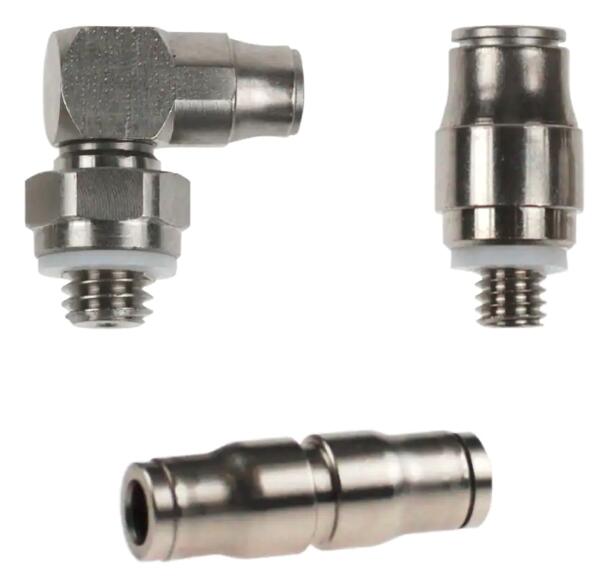

Mini Pneumatic Push-In Fittings (3mm) - LF 3200

Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics.Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness.

Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics.

Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness.

Features/Benefits:

- Compact & Lightweight

- 25% smaller than other fittings on the market for optimum actuator dimensions
- Minimum weight for maximum efficiency
- Reduces energy consumption and limits actuator wear

- Resistance & Performance

- All brass components for excellent impact resistance
- Gripping system with collet for increased robustness and service life
- Excellent resistance to high operating pressures

- Reliability

- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Ideal for very sensitive applications
- Corrosion-resistant

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications


Technologies:

- Miniature Fittings
- Push-In Fittings
- Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Compressed Air, Non-corrosive Fluids
- Materials: Chemical nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar
- Temperature: -15°C to +80°C
- ? metric: 3mm

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 94/9/EC (ATEX )
- DI: 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)

Product Types:

- Stud Fittings
- Tube-To-Tube Fittings
- Tube-To-Tube Accessories

Technical Specifications

Mini Pneumatic Push-In Fittings (3mm) - LF 3200 型号
