Parker Fittings接头
Industrial Fittings

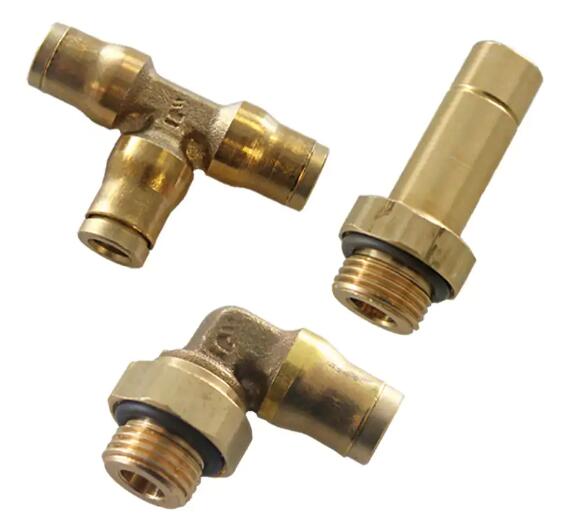

LF 3600 Low Lead Brass Push-In Fittings

This range of low lead brass fittings offers a reliable solution designed for all kind of coffee machine of hot beverages dispenser. Its robust design and proven technology offer
optimum performance for a universal use.





This range of low lead brass fittings offers a high mechanical resistant solution without contamination of beverages at a competitive price. It has been designed especially for all kind of coffee machines of hot beverages dispensers. Its robust design and proven gripping technology technology offer optimum performance for a universal use as alternative of compression fittings technology and stainless steel material.





Features/Benefits:

- Simplicity & Reliability

- Instant connection and disconnection
- Automatic sealing ensured
- Interchangeable fittings
- 100 % leak-tested
- Date coding to guarantee traceability

- Robustness

- All metal
- Increased resistance to impacts, to traction and to cycled pressure
- Tried-and-tested technology in numerous industrial applications
- Maximum thread length according to the ISO standard

- Innovative Design

- Compact fittings and full bore for optimum flow
- An alternative to stainless steel at a lower cost
- Pressure and temperature performance enabling a universal use and stock and maintenance reduced costs


Applications:

- Professional coffee machines
- Home coffee machines
- Beverage dispensers
- Water dispensers


Markets:

- Food, water and beverage


Technologies:

- Push-In Fittings
- Low Lead Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors


Technical Characteristics:

- Fluids: Drinking water and vapour. Other fluids: please consult us
- Materials: fluoroelastomer (FKM), brass CW614N, stainless steel 316L, brass CW510L (>0.2% lead brass)
- Pressure: Vacuum to 30 bar. Models 3609, 3699 and 3639 are limited to 20 bar
- Temperature: -25°C to +150°C


Regulations:

- Regulation 1935/2004
- NSF/ANSI 169
- DM 174: Ministerial decree (Italy)
- CFR 21: Code of Federal Regulation
- European RoHS directives: 2011/65/EC
- REACH regulation: 1907/2006
- DGCCRF n° 2004-64
- EN 16889
- LFGB


Product Types:

- Stud Fitting, Male BSPT Thread
- Stud Fitting, Male BSPP and Metric Thread
- Stud Fitting, Female BSPP Thread
- Stud Standpipe, Male BSPT Thread
- Stud Standpipe, Male BSPP Thread
- Stud Elbow, Male BSPT Thread
- Compact Elbow, Male BSPP and Metric Thread
- Stud Branch Tee, Male BSPT Thread
- Stud Branch Tee, Male BSPP and Metric Thread
- Stud Run Tee, Male BSPP and Metric Thread
- Stud Run Tee, Male BSPT Thread
- Equal Elbow
- Equal Tee
- Equal Bulkhead Elbow
- Male Stem Connector
- Plug-In Barb Connector
- Blanking Plug



Technical Specifications

Body Material: LOW LEAD BRASS
O-Ring Material: FKM
Maximum Operating Pressure: 20 to 30 bar
Minimum Operating Temperature: -25 °C
Maximum Operating Temperature: 150 °C
Vacuum Pressure Rating: 755 mm-Hg
Quantity per Box: 10
Weight: 0,009 to 0,031 kg
Industry Application: Robotics, Automotive Process, Pneumatics, Semi-Conductors, Textile, Water Treatment, Beverage Dispensers
Media Long Description: Water, Beverages, Industrial fluids, Compressed air, Water, Beverages, Industrial fluids, compressed air
Specifications Met: Regulation 1935/2004, NSF/ANSI 169, DM 174: Ministerial decree (Italy), CFR 21: Code of Federal Regulation, European RoHS directives: 2011/65/EC, REACH regulation: 1907/2006, DGCCRF n° 2004-64, EN 16889, LFGB
Connection 3 Tube Outside Diameter: 4 mm
Connection 4 Tube Outside Diameter: 3,2 mm



LF 3600 Low Lead Brass Push-In Fittings 型号

Part Body Shape Product Type Connection 1 Thread Size (metric) Connection 1 Thread Style Connection 2 Tube O.D. (mm)
3601 04 10 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 4
3601 04 13 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings G1/4 BSPP 4
3601 04 19 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings M5x0,8 Metric 4
3601 06 10 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 6
3601 06 13 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings G1/4 BSPP 6
3601 08 10 84 Stud Fitting, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 8
3602 04 00 84 Equal Elbow Tube-to-Tube and Bulkhead Fittings na na 4
3603 04 10 84 Stud Run Tee, Male BSPT Thread Stud Fittings R1/8 BSPT 4
3604 04 00 84 Equal Tee Tube-to-Tube and Bulkhead Fittings na na 4
3604 06 00 84 Equal Tee Tube-to-Tube and Bulkhead Fittings na na 6
3608 04 10 84 Stud Branch Tee, Male BSPT Thread Stud Fittings R1/8 BSPT 4
3609 04 10 84 Stud Elbow, Male BSPT Thread Stud Fittings R1/8 BSPT 4
3609 04 13 84 Stud Elbow, Male BSPT Thread Stud Fittings R1/4 BSPT 4
3609 06 10 84 Stud Elbow, Male BSPT Thread Stud Fittings R1/8 BSPT 6
3609 06 13 84 Stud Elbow, Male BSPT Thread Stud Fittings R1/4 BSPT 6
3614 04 10 84 Stud Fitting, Female BSPP Thread Stud Fittings G1/8 BSPP 4
3614 04 13 84 Stud Fitting, Female BSPP Thread Stud Fittings G1/4 BSPP 4
3614 06 10 84 Stud Fitting, Female BSPP Thread Stud Fittings G1/8 BSPP 6
3614 06 13 84 Stud Fitting, Female BSPP Thread Stud Fittings G1/4 BSPP 6
3620 04 00 84 Male Stem Connector Accessories and Plug-In Accessories na na 4
3620 06 00 84 Male Stem Connector Accessories and Plug-In Accessories na na 6
3621 06 10 84 Stud Standpipe, Male BSPT Thread Accessories and Plug-In Accessories R1/8 BSPT 6
3622 04 53 84 Plug-In Barb Connector Accessories and Plug-In Accessories na na na
3626 04 00 84 Blanking Plug Accessories and Plug-In Accessories na na 4
3631 08 10 84 Stud Standpipe, Male BSPP Thread Accessories and Plug-In Accessories G1/8 BSPP 8
3639 04 00 84 Equal Bulkhead Elbow Tube-to-Tube and Bulkhead Fittings na na 4
3675 04 10 84 Stud Fitting, Male BSPT Thread Stud Fittings R1/8 BSPT 4
3675 04 13 84 Stud Fitting, Male BSPT Thread Stud Fittings R1/4 BSPT 4
3675 06 10 84 Stud Fitting, Male BSPT Thread Stud Fittings R1/8 BSPT 6
3693 04 10 84 Stud Run Tee, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 4
3693 06 10 84 Stud Run Tee, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 6
3698 06 10 84 Stud Branch Tee, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 6
3699 04 10 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 4
3699 04 13 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings G1/4 BSPP 4
3699 04 19 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings M5x0,8 Metric 4
3699 04 52 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings M6x1 Metric 4
3699 06 10 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 6
3699 06 13 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings G1/4 BSPP 6
3699 08 10 84 Compact Elbow, Male BSPP and Metric Thread Stud Fittings G1/8 BSPP 8
