Brass Push-In Fittings for Lubrication and Vacuum Systems - LF 6100

This Fittings range dedicated to lubrication and vacuum systems, combines very high performance and manual connection.
This technology secures the connection and sealing performance, even at high pressure.

This Fittings range dedicated to lubrication and vacuum systems, combines very high performance and manual connection.

This technology secures the connection and sealing performance, even at high pressure.

Fetaures/Benefits:

- Robust

- Designed for mechanically demanding environments
- Excellent pressure and temperature resistance
- Stamped brass forgings for increased service life

- Secure & Reliable

- Perfect sealing guaranteed by the three rings
- The two sealing O-rings positioned before the gripping ring endure no scratching on the tube in the sealing area
- Manual connection for time-saving
- No Fluid loss
- Tube cannot be disconnected without the use of a spanner
- Up to 60 bar with rigid polymer or grooved metal tubing
- 100% leak-tested in production

Markets:

- Machine Tools
- Primary Metal Refining & Processing
- Miscellaneous Manufacturing
- Construction Equipement
- Transportation

Applications:

- Industrial Fluids Conveying at Medium Pressure
- Lubrication
- Measurement Systems
- Suitable for Vacuum Applications

Technologies:

- Brass Fittings
- Lubrication Fittings
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Lubricants, Compressed Air, Vacuum, other fluids and compatible gases
- Materials: Brass, NBR
- Pressure: Vacuum to 60 bar
- Temperature: -20°C to +120°C
- ? metric: 4-10 mm

Regulations:

- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 94/9/EC (ATEX )
- RG: 1907/2006 (REACH)

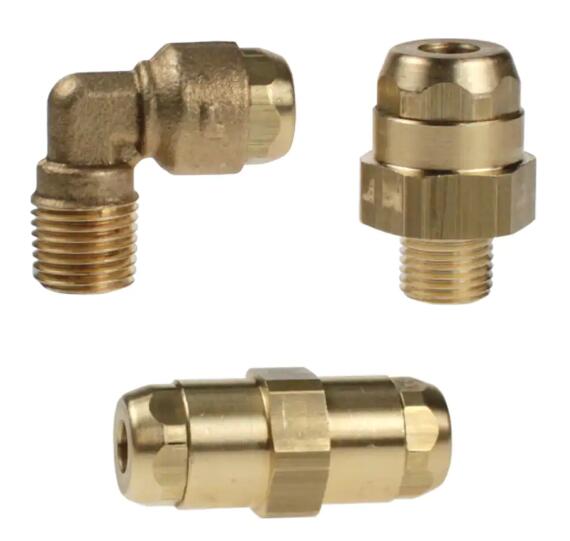

Product Types:

- Stud Fittings
- Stud Elbow
- Equal Tee
- Tube-to-Tube Connector
- Copper Washer

Technical Specifications
