Parker Ball Valves

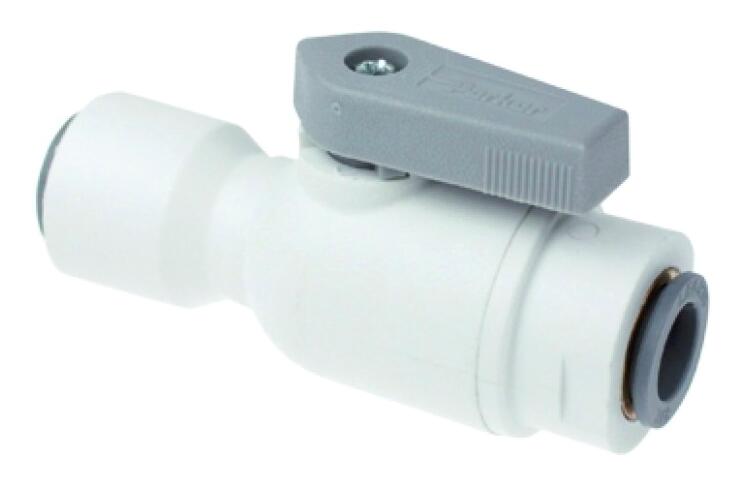

LIQUIfit Polymer Ball Valves for Food and Beverages
This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health.
These compact and reliable valves offer perfect sealing and excellent cleanliness.
This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health. These compact and reliable valves offer perfect sealing and excellent cleanliness.
Features/Benefits:
- Innovative Technology & Increased reliability
- Full flow to limit turbulence
- Full-flow self-cleaning ball maintains the cleanliness of the circuit
- Tube retention with gripping ring prevents pumping effect
- Push-in connection and disconnection
- Sealing technology using patented EPDM seal
- High Performance
- Inert technical polymer providing the best mechanical strength, thermal and chemical resistance
- Carstick? connection providing resistance to water hammer
- Other configurations available on request
Markets:
- Food and Beverage
- Water
Applications:
- Allow/Stop Water and Drinks Circulation in Dispensers, Coolers and Water Purifiers
- Suitable for Hot Beverages
Technologies:
- Water purification
- Water coolers
- Beverage dispensers
- Industrial valves
Technical Characteristics:
- Fluids: Water, drinks, beverages
- Materials: technical polymer, EPDM, self-cleaning technical polymer, polypropylene, silicone free
- Pressure: 0 to 10 bar at 20°C
- Temperature: -15°C to +100°C
Regulations:
- FDA: 21 CFR
- NSF: 51 and lead
Technical Specifications
| Body Material: |
POLYPROPYLENE WITH FIBREGLASS |
| Gripping Ring Material: |
STAINLESS STEEL |
| Handle Type: |
POLYAMIDE |
| O-Ring Material: |
EPDM |
| Stem Material: |
POLYSULFON |
| Maximum Operating Pressure: |
10 bar |
| Minimum Operating Temperature: |
-15 °C |
| Maximum Operating Temperature: |
100 °C |
| Quantity per Box: |
10 |
| Weight: |
0,015 to 0,029 kg |
| Application: |
Beverage Dispensers, Inert Gases, Cooling, Food Process, Water Purifi cation, Water Coolers |
| Media: |
Water, drinks, beverages |
| Specifications Met: |
FDA: 21 CFR, NSF: 51 and lead < 0.25%, WQA: Water Quality Association |
LIQUIfit Polymer Ball Valves for Food and Beverages型号
| Part |
Shape |
Connection 1 Thread Style |
Connection 1 Tube O.D. (inch) |
Connection 2 Tube O.D. (inch) |
| 4020 56 00WP2 |
2/2 in line LIQUIfit ball valve |
na |
na |
1/4 |
| 4020 60 00WP2 |
2/2 in line LIQUIfit ball valve |
na |
na |
3/8 |
| 4021 56 14WP2 |
2/2 in line LIQUIfit ball valve male |
NPTF |
NPT1/4 |
1/4 |
| 4021 60 18WP2 |
2/2 in line LIQUIfit ball valve male |
NPTF |
NPT3/8 |
3/8 |
| 4022 56 14WP2 |
2/2 right angled LIQUIfit ball valve female |
NPTF |
NPT1/4 |
1/4 |
| 4022 60 18WP2 |
2/2 right angled LIQUIfit ball valve female |
NPTF |
NPT3/8 |
3/8 |
| 4023 56 14WP2 |
2/2 in line LIQUIfit ball valve female |
NPTF |
NPT1/4 |
1/4 |
| 4023 60 18WP2 |
2/2 in line LIQUIfit ball valve female |
NPTF |
NPT3/8 |
3/8 |
|
