Parker 球阀
Parker Ball Valves

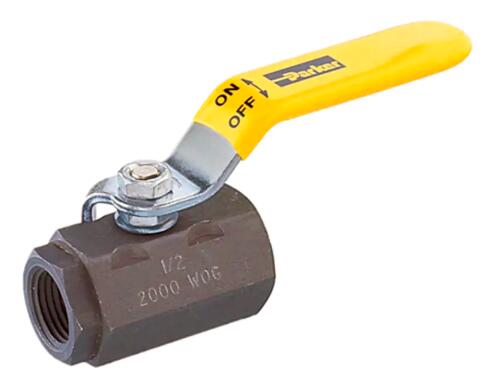

Low Pressure Ball Valves - V500 Series
Parker's V500 series ball valves are a high quality low pressure ball valve that provides full shut-off capabilities.
Parker's V500 series ball valves are machined from high quality forgings that provide extended service life and resist failure caused by severe temperature conditions. The valves can be used in air, water and oil applications. They are available in a variety of materials, sizes and port styles.
Low Pressure Ball Valves - V500 Series
Markets:
- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil & Gas
- Power Generation
- Vehicle Assembly Facilities
Features/Benefits:
- Available in sizes from ?” to 3”
- Port options include NPT and SAE
- Material offerings are brass, carbon steel, and stainless steel
- Pressures range from 250 PSI to 2,000 PSI depending on the series variation
Applications:
- Suitable for general hydraulic applications
Technical Specifications
| Stem Material: |
Zinc Plated Carbon Steel, Chrome Plated Brass, 316 Stainless Steel |
| Maximum Operating Pressure: |
138, 41, 103, 31, 17 bar |
| Media: |
Air, Oil, Water |
Low Pressure Ball Valves - V500 Series 型号
| Part |
Valve Body Material |
Port Size |
Thread Type |
Connection |
Mounting |
Options |
Vented |
Ball Material |
Maximum Pressure (psi) |
| V500CS12 |
Zinc Plated Carbon Steel |
3/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Zinc Plated Carbon Steel |
2000 |
| V500CS16 |
Zinc Plated Carbon Steel |
1" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Zinc Plated Carbon Steel |
2000 |
| V500CS4 |
Zinc Plated Carbon Steel |
1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Zinc Plated Carbon Steel |
2000 |
| V500CS6 |
Zinc Plated Carbon Steel |
3/8" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Zinc Plated Carbon Steel |
2000 |
| V500CS8 |
Zinc Plated Carbon Steel |
1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Zinc Plated Carbon Steel |
2000 |
| V500P12 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P1201 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V500P1203 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
316 Stainless Steel |
600 |
| V500P1204 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V500P16 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P1601 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V500P1602 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
Chrome Plated Brass |
600 |
| V500P1603 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
316 Stainless Steel |
600 |
| V500P20 |
Brass |
1-1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P2002 |
Brass |
1-1/4" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
Chrome Plated Brass |
600 |
| V500P2402 |
Brass |
1-1/2" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
Chrome Plated Brass |
600 |
| V500P32 |
Brass |
2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P4 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P401 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V500P403 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
316 Stainless Steel |
600 |
| V500P6 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P601 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V500P603 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
316 Stainless Steel |
600 |
| V500P8 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V500P801 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V500P803 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
N/A |
316 Stainless Steel |
600 |
| V500P804 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V501P12 |
Brass |
3/4" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V501P16 |
Brass |
1" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V501P404 |
Brass |
1/4" |
NPT |
Male-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V501P6 |
Brass |
3/8" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V501P604 |
Brass |
3/8" |
NPT |
Male-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V501P8 |
Brass |
1/2" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V501P804 |
Brass |
1/2" |
NPT |
Male-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V501SS1201 |
316 Stainless Steel |
3/4" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V501SS1601 |
316 Stainless Steel |
1" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V501SS401 |
316 Stainless Steel |
1/4" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V501SS601 |
316 Stainless Steel |
3/8" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V501SS801 |
316 Stainless Steel |
1/2" |
NPT |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V502CS24 |
Zinc Plated Carbon Steel |
1-1/2" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Zinc Plated Carbon Steel |
1500 |
| V502P12 |
Brass |
3/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V502P16 |
Brass |
1" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V502P4 |
Brass |
1/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V502P6 |
Brass |
3/8" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V502P8 |
Brass |
1/2" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V502SS1201 |
316 Stainless Steel |
3/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V502SS1601 |
316 Stainless Steel |
1" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V502SS2001 |
316 Stainless Steel |
1-1/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
1500 |
| V502SS2401 |
316 Stainless Steel |
1-1/2" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
1500 |
| V502SS3201 |
316 Stainless Steel |
2" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
1500 |
| V502SS401 |
316 Stainless Steel |
1/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V502SS601 |
316 Stainless Steel |
3/8" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V502SS801 |
316 Stainless Steel |
1/2" |
NPT |
Female-Female |
Panel Mount |
N/A |
N/A |
316 Stainless Steel |
2000 |
| V506P12 |
Brass |
12 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V506P16 |
Brass |
16 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V506P20 |
Brass |
20 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V506P24 |
Brass |
24 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V506P32 |
Brass |
32 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V506P8 |
Brass |
8 |
SAE |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P12 |
Brass |
12 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P16 |
Brass |
16 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P4 |
Brass |
4 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P6 |
Brass |
6 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P604 |
Brass |
6 |
SAE |
Male-Female |
In-Line |
T- Handle |
N/A |
Chrome Plated Brass |
600 |
| V510P8 |
Brass |
8 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
600 |
| V510P801 |
Brass |
8 |
SAE |
Male-Female |
In-Line |
N/A |
N/A |
316 Stainless Steel |
600 |
| V520P12 |
Brass - U.L. Listed |
3/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P16 |
Brass - U.L. Listed |
1" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P20 |
Brass - U.L. Listed |
1-1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P24 |
Brass - U.L. Listed |
1-1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P32 |
Brass - U.L. Listed |
2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P4 |
Brass - U.L. Listed |
1/4" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P40 |
Brass - U.L. Listed |
2-1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
450 |
| V520P48 |
Brass - U.L. Listed |
3" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
450 |
| V520P6 |
Brass - U.L. Listed |
3/8" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V520P8 |
Brass - U.L. Listed |
1/2" |
NPT |
Female-Female |
In-Line |
N/A |
N/A |
Chrome Plated Brass |
650 |
| V590P4 |
Brass |
1/4" |
NPT |
Male-Female |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| V590P6 |
Brass |
3/8" |
NPT |
Male-Female |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| V590P8 |
Brass |
1/2" |
NPT |
Male-Female |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| V591P4 |
Brass |
1/4" |
NPT |
Male-Male |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| V591P6 |
Brass |
3/8" |
NPT |
Male-Male |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| V591P8 |
Brass |
1/2" |
NPT |
Male-Male |
90° |
N/A |
N/A |
Chrome Plated Brass |
250 |
| VP500CS12 |
Zinc Plated Carbon Steel |
3/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
2000 |
| VP500CS16 |
Zinc Plated Carbon Steel |
1" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
2000 |
| VP500CS4 |
Zinc Plated Carbon Steel |
1/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
2000 |
| VP500CS6 |
Zinc Plated Carbon Steel |
3/8" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
2000 |
| VP500CS8 |
Zinc Plated Carbon Steel |
1/2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
2000 |
| VP500P12 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P16 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P20 |
Brass |
1-1/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P24 |
Brass |
1-1/2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P32 |
Brass |
2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P4 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P6 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P8 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP500P801 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
N/A |
316 Stainless Steel |
600 |
| VP501P12 |
Brass |
3/4" |
NPT |
Male-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP501P6 |
Brass |
3/8" |
NPT |
Male-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP501P8 |
Brass |
1/2" |
NPT |
Male-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP502CS20 |
Zinc Plated Carbon Steel |
1-1/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
1500 |
| VP502CS224 |
Zinc Plated Carbon Steel |
1-1/2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
1500 |
| VP502CS32 |
Zinc Plated Carbon Steel |
2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Zinc Plated Carbon Steel |
1500 |
| VP502P12 |
Brass |
3/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP502P4 |
Brass |
1/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP502P6 |
Brass |
3/8" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP502P8 |
Brass |
1/2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP502SS1201 |
316 Stainless Steel |
3/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
2000 |
| VP502SS1601 |
316 Stainless Steel |
1" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
2000 |
| VP502SS2001 |
316 Stainless Steel |
1-1/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
1500 |
| VP502SS2401 |
316 Stainless Steel |
1-1/2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
1500 |
| VP502SS3201 |
316 Stainless Steel |
2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
1500 |
| VP502SS401 |
316 Stainless Steel |
1/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
2000 |
| VP502SS601 |
316 Stainless Steel |
3/8" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
2000 |
| VP502SS801 |
316 Stainless Steel |
1/2" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
N/A |
316 Stainless Steel |
2000 |
| VP506P8 |
Brass |
8 |
SAE |
Female-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP510P12 |
Brass |
12 |
SAE |
Male-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VP510P8 |
Brass |
8 |
SAE |
Male-Female |
In-Line |
Locking Handle |
N/A |
Chrome Plated Brass |
600 |
| VV500P12 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV500P4 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV500P6 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV500P801 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
316 Stainless Steel Handle and Nut |
Vented |
316 Stainless Steel |
250 |
| VV501P12 |
Brass |
3/4" |
NPT |
Male-Female |
In-Line |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV501P4 |
Brass |
1/4" |
NPT |
Male-Female |
In-Line |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV502P4 |
Brass |
1/4" |
NPT |
Female-Female |
Panel Mount |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV502P6 |
Brass |
3/8" |
NPT |
Female-Female |
Panel Mount |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VV502P8 |
Brass |
1/2" |
NPT |
Female-Female |
Panel Mount |
N/A |
Vented |
Chrome Plated Brass |
250 |
| VVP500P12 |
Brass |
3/4" |
NPT |
Female-Female |
In-Line |
Locking Handle; 316 Staniless Steel Handle and Nut |
Vented |
Chrome Plated Brass |
250 |
| VVP500P16 |
Brass |
1" |
NPT |
Female-Female |
In-Line |
Locking Handle |
Vented |
Chrome Plated Brass |
600 |
| VVP500P4 |
Brass |
1/4" |
NPT |
Female-Female |
In-Line |
Locking Handle |
Vented |
Chrome Plated Brass |
600 |
| VVP500P6 |
Brass |
3/8" |
NPT |
Female-Female |
In-Line |
Locking Handle; 316 Staniless Steel Handle and Nut |
Vented |
Chrome Plated Brass |
250 |
| VVP500P8 |
Brass |
1/2" |
NPT |
Female-Female |
In-Line |
Locking Handle |
Vented |
Chrome Plated Brass |
600 |
| VVP502P4 |
Brass |
1/4" |
NPT |
Female-Female |
Panel Mount |
Locking Handle |
Vented |
Chrome Plated Brass |
600 |
|
