Parker Fittings接头

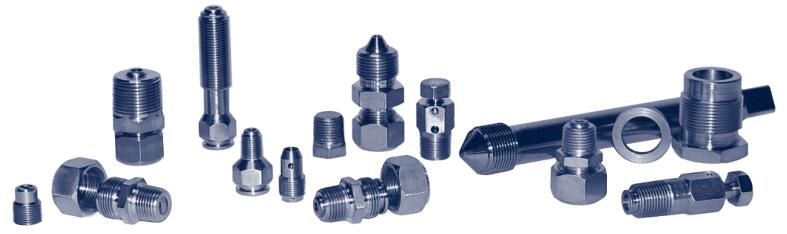

Grease Fittings
Wellhead Grease Fittings, McEvoy Style Series

Parker PGI's McEvoy Style Compound and Grease Fittings are specifically designed for use with McEvoy gate valves.





Parker PGI's McEvoy Style Compound and Grease Fittings come in two types. Both types of McEvoy body cavity fittings are offered by Parker PGI. These styles include 3/4”-16 UNF straight threads, a pinned ball retainer and a 1” wrench hex.

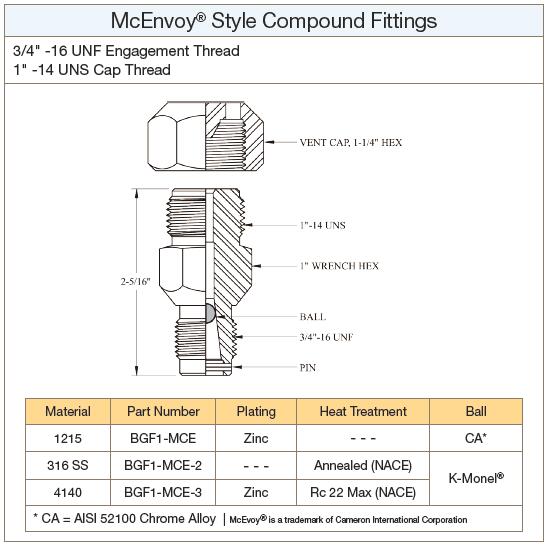

The McEvoy Style Compound Fitting fits a standard 1”-14 UNS screw-on coupler thread.

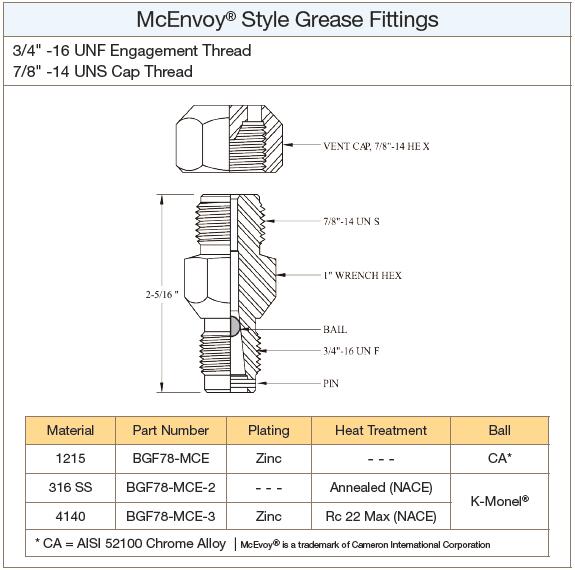

The McEvoy Style Grease Fitting fits a standard 7/8”-14 UNS screw-on coupler thread.

[McEvoy is a trademark of the Cameron International Corporation.]

Markets:
- Chemical
- Petrochemical
- Oil and Gas

Features/Benefits:
- Vent Cap
- Heat treated Ball for durability
- Floating ball-taper cavity

Applications:
- McEvoy Equipment Lube Systems







Technical Specifications

Vent Type: Vent Cap, 1-1/4" Hex | Vent Cap, 7/8"-14 Hex
Thread Size: 3/4"-16 UNF Engagement Thread with 1"-14 UNS Cap Thread | 3/4"-16 UNF Engagement Thread with 7/8"-14 UNS Cap Thread
Body Material: 1215 | 316 SS | 4140 | Consult factory for additional materials
Plating Type: Zinc | N/A
Heat Treatment: Annealed (NACE) | Rc 22 Max (NACE) | N/A
Ball Material: AISI 52100 Chrome Alloy | K-Monel | Consult factory for additional materials



Wellhead Grease Fittings, McEvoy Style Series型号

Part Vent Type Body Material
BGF1-MCE Vent Cap, 1-1/4" Hex 1215
BGF1-MCE-2 Vent Cap, 1-1/4" Hex 316 SS
BGF1-MCE-3 Vent Cap, 1-1/4" Hex 4140
BGF78-MCE Vent Cap, 7/8"-14 Hex 1215
BGF78-MCE-2 Vent Cap, 7/8"-14 Hex 316 SS
BGF78-MCE-3 Vent Cap, 7/8"-14 Hex 4140
