Parker Quick Couplings

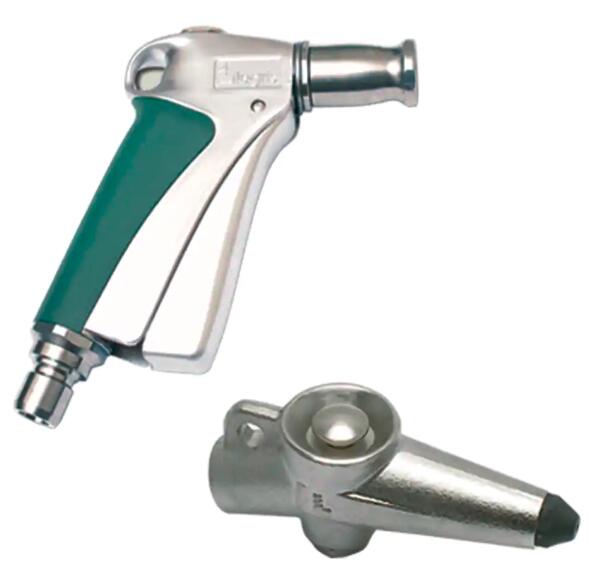

Metal Blowguns and Water Pistols
This range of robust blowguns guarantees a longer service life under severe conditions (crushing, impact, shock and corrosion).It includes two versions to meet all requirements for blowing and spraying in industrial applications.
This range of robust blowguns guarantees a longer service life under severe conditions (crushing, impact, shock and corrosion). It includes two versions to meet all requirements for blowing and spraying in industrial applications.
Features/Benefits:
- Workshop Blowgun
- Compact for easy incorporation into compressed air ring mains
- Nickel-plated forged brass for increased corrosion resistance
- Water Pistol
- Intended for the transmission of water and fluids
- Designed for precise flow control and optimisation of the power and shape of the jet
- Optimum use of industrial fluids
- Excellent ergonomics and service life
Markets:
- Factory Automation
- Miscellaneous manufacturing
- Packaging
- Vehicle Assembly Facilities
Applications:
- Suitable for Applications in Severe Conditions
- Manufacturing Workshops
- Cleaning
- Cooling
- Ejection
Technologies:
- Water pistol
- Water transmission
- Adjustable nozzle
- Corrosion resistance
- Water transmission
- Air blower gun
Technical Characteristics:
- Fluids:
Metal blowgun: compressed air, industrial fluids
Water pistol: water, oil, industrial fluids
- Materials: treated steel, nickel-plated brass, painted steel, nickel-plated steel, treated zamak, chromium-plated zamak, nickel-plated forged brass, nitrile, silicone free
- Pressure:
Metal blowgun: 0 to 10 bar
Water pistol: 10 to 20 bar
- Temperature:
Metal blowgun:
air: -15°C to +50°C
dry air: -20°C to 80°C
Water pistol: -20°C to +100°C
Regulations:
Compliance for all blowguns:
- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
Product Types:
- Lever-Operated Blowgun, Female BSPP Thread
- Button-Operated Blowgun, Female BSPP Thread
- Water Pistol
- Adjustable Nozzle
Technical Specifications
| Valve Type: |
no valve |
| Materials of Construction: |
Nickel-plated brass, Zamac, |
| Seal Material: |
NBR |
| Application: |
Manufacturing Workshops, Assembly machines, Robotics, Ejection, Cooling, Packaging, Automotive Process |
| Brand: |
Legris |
| Fitting Connection Type: |
Female thread, BSPP |
| Media: |
Compressed air, water, Other fluids: contact us |
| Specifications Met: |
REACH, ROHS |
| Flow Rate: |
1440 (air), 16.2 (water) L/min |
| Diameter: |
Nominal: 2.0 or 12 mm |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Maximum Operating Pressure: |
20 bar |
| Quantity per Box: |
1 to 5 |
| Weight: |
0,119 to 0,468 kg |
Metal Blowguns and Water Pistols 型号
| Part |
Shape |
Body Material |
Diameter Nominal (DN) |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
| 0622 26 73 |
Metal blowgun button operated female |
NICKEL PLATED BRASS |
2 |
BSPP |
G1/4 |
| 0623 10 35 |
Metal blowgun lever operated female |
NICKEL PLATED BRASS |
2 |
BSPP |
G1/4 |
| 2299 12 01 |
Water pistol |
ZAMAK |
12 |
na |
na |
| 2299 12 20 |
Adjustable nozzle |
NICKEL PLATED BRASS |
12 |
na |
na |
|
