Metal Cartridges

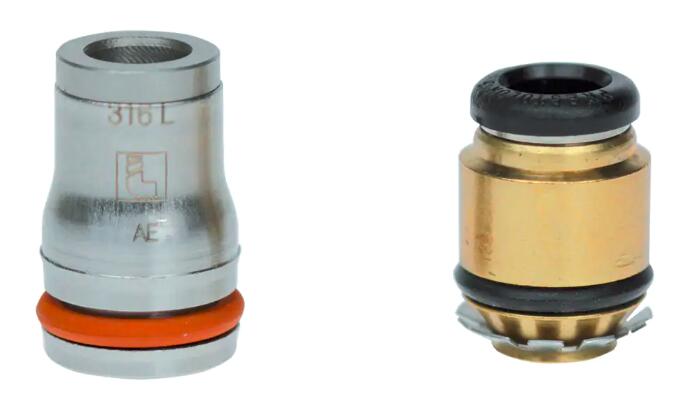

For full compatibility with many fluids and severe conditions, Parker Legris has developed two types of patented cartridges.Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal.
For full compatibility with many fluids and severe conditions (+150°C), Parker Legris has developed two types of patented cartridges. Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal.
Features/Benefits:
- LF Cartridges, LF 3600, LF 3800, LF 3900
- All the advantages of the LF 3600, LF 3800 and LF 3900 fittings applied to cartridge technology
- All-metal product to provide the greatest mechanical strength and chemical resistance
- Resistant at high temperatures (+150°C)
- Can be installed in either polymer or metal housings
- FTL Cartridge
- Possibility to have several tubing diameters in the same cavity
- Visible retention and sealing system, can be disassembled using the dedicated tool
Markets:
- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Packaging Machinery
- Refrigeration
Applications:
- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications
Technologies:
- Chemical resistance
- Mechanical strength
- Sealing system
- Metal cartridge
- Cartridge technology
- Metal cartridges
Technical Characteristics:
LF Cartridges
- Fluids: Compressed Air, grease, lubricant, water ...
- Materials: Nickel-plated brass, FKM, stainless steel 303, stainless steel 316L
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
FTL Cartridge
- Fluids: Compressed Air
- Materials: Technical polymer, brass, stainless steel, NBR
- Pressure: Vacuum to 16 bar
- Temperature: -25°C to +80°C
Regulations:
LF Cartridges
- DI: 97/23/CE (PED)
- RG: 21CFR (FDA)
- RG: 1935/2004/CE (minimum flow 0.02 l/hr)
- DI: 2011/65/CE (RoHS)
- USDA NSF H1: grease
- ASTM B733-04: self-catalytic nickel coating
- DI: 94/9/CE (ATEX)
FTL Cartridge
- DI: 97/23/CE (PED)
- DI: 2011/65/CE (RoHS)
Product Types:
- One-Piece Cartridge
- Cartridge
- Disconnection Tool
Technical Specifications
| Maximum Operating Temperature: |
150 °C, 302 °F |
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
| Minimum Operating Temperature: |
-25 °C, -17 °F |
| Maximum Operating Pressure: |
3 MPa, 30 bar, 435 psi |
| Tube Outside Diameter: |
4 to 14 mm |
| Specifications Met: |
DI: 97/23/EC (PED) - RG: 21 CFR (FDA) - RG: 1935/2004/CE - DI: 2011/65/EC (RoHs) - USDA NSF H1: Grease - ASTM B733-04: self catalytic niclek coating - DI: 94/9/CE (ATEX), LF 3600, LF 3800, LF 3900: DI: 97/23/CE (PED), RG: 21CFR (FDA), RG: 1935/2004/CE (minimum flow 0.02 l/hr), DI: 2011/65/CE (RoHS), USDA NSF H1: grease, ASTM B733-04: self-catalytic nickel coating, DI: 94/9/CE (ATEX) -- TL: DI: 97/23/CE (PED), DI: 2011/65/ |
| Materials of Construction: |
Nickel Plated Brass, Brass, 316 Stainless Steel, Rubber |
| Connection Type: |
Push-to-Connect |
| Shape: |
Straight |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Quantity per Box: |
2 to 10 |
| Weight: |
0,006 to 0,031 kg |
| Media: |
LF Cartridges: Fluids: see corresponding chapters -- TL Cartridge: Compressed air |
