Parker 接头
Parker Adapters

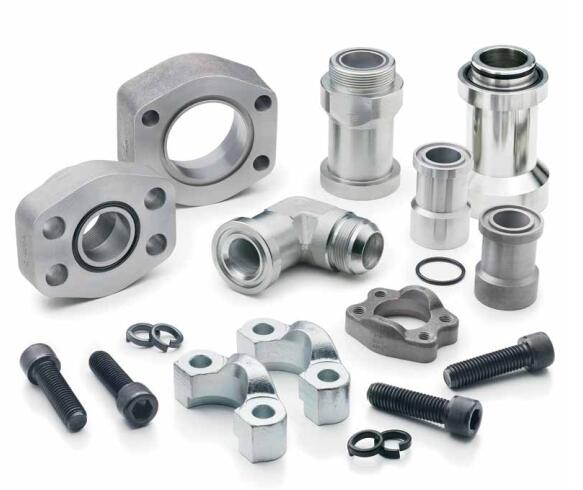

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters

Parker's flange adapters with 4-bolt flange connections adapt to Parker's Seal-Lok? O-ring Face Seal (ORFS), Triple-Lok? 37° flare, Ferulok? inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.





Parker's flange adapters with 4-bolt flange connections conform SAE J518 and ISO 6162-1 and -2. These proven leak-free connections adapt to Parker's Seal-Lok? O-ring Face Seal (ORFS), Triple-Lok? 37° flare, Ferulok? inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.



O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters



Markets:
- Construction
- Agriculture
- Oil & Gas
- Transportation
- Mining
- Forestry

Features/Benefits:
- Adapts to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld.
- Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
- 13 configurations available, with custom designs available on request.
- Ease of disassembly with use of split clamps.
- Available in steel in sizes ?” through 1 ?” with working pressures up to 5000 psi.

Applications:
- Hydraulic fluid and gas handling connections



Technical Specifications

Maximum Operating Pressure: 5000 (Dynamic Pressure) psi, 34 (Dynamic Pressure) MPa, 345 (Dynamic Pressure) bar
Connection Type: Flare, Flareless, O-ring Face Seal
Materials of Construction: Steel, Zinc Plated
Application: Various
Shape: Straight and 90°
Specifications Met: ISO 6162-1 and -2, SAE J518
O-Ring Material: 90 Durometer Nitrile



O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters型号

Part Shape Flange Connection Style Connection Tube O.D. (inch) Flange Size (inch) Body Material
12 F5OHQ1-S Straight Code 61 SAE-ORB 3/4 3/4 Steel, Chromium 6 Free
12 LOEQ1-S 90° Elbow Code 61 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 LOEQ2-S 90° Elbow Code 62 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 LOHQ1-S Straight Code 61 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 LOHQ2-S Straight Code 62 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 LOHQ2-S ZJ Straight Code 62 O-ring Face Seal 3/4 3/4 Steel, Zinc Nickel
12 LOVQ1-S 45° Elbow Code 61 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 LOVQ2-S 45° Elbow Code 62 O-ring Face Seal 3/4 3/4 Steel, Chromium 6 Free
12 XEQ1-S 90° Elbow Code 61 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12 XEQ2-S 90° Elbow Code 62 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12 XHQ1-S Straight Code 61 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12 XHQ2-S Straight Code 62 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12 XVQ1-S 45° Elbow Code 61 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12 XVQ2-S 45° Elbow Code 62 37° Flare 3/4 3/4 Steel, Chromium 6 Free
12-16 XEQ1-S 90° Elbow Code 61 37° Flare 3/4 1 Steel, Chromium 6 Free
12-16 XHQ1-S Straight Code 61 37° Flare 3/4 1 Steel, Chromium 6 Free
12-16 XHQ2-S Straight Code 62 37° Flare 3/4 1 Steel, Chromium 6 Free
12-20 XHQ1-S Straight Code 61 37° Flare 3/4 1 1/4 Steel, Chromium 6 Free
16 F5OHQ1-S Straight Code 61 SAE-ORB 1 1 Steel, Chromium 6 Free
16 LOEQ1-S 90° Elbow Code 61 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOEQ2-S 90° Elbow Code 62 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOEQ2-S ZJ 90° Elbow Code 62 O-ring Face Seal 1 1 Steel, Zinc Nickel
16 LOHQ1-S Straight Code 61 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOHQ2-S Straight Code 62 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOVQ1-S 45° Elbow Code 61 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOVQ2-S 45° Elbow Code 62 O-ring Face Seal 1 1 Steel, Chromium 6 Free
16 LOVQ2-S ZJ 45° Elbow Code 62 O-ring Face Seal 1 1 Steel, Zinc Nickel
16 XEQ1-S 90° Elbow Code 61 37° Flare 1 1 Steel, Chromium 6 Free
16 XEQ2-S 90° Elbow Code 62 37° Flare 1 1 Steel, Chromium 6 Free
16 XHQ1-S Straight Code 61 37° Flare 1 1 Steel, Chromium 6 Free
16 XHQ2-S Straight Code 62 37° Flare 1 1 Steel, Chromium 6 Free
16 XVQ1-S 45° Elbow Code 61 37° Flare 1 1 Steel, Chromium 6 Free
16 XVQ2-S 45° Elbow Code 62 37° Flare 1 1 Steel, Chromium 6 Free
16-12 XEQ2-S 90° Elbow Code 62 37° Flare 1 3/4 Steel, Chromium 6 Free
16-12 XHQ1-S Straight Code 61 37° Flare 1 3/4 Steel, Chromium 6 Free
16-12 XHQ2-S Straight Code 62 37° Flare 1 3/4 Steel, Chromium 6 Free
16-20 XEQ1-S 90° Elbow Code 61 37° Flare 1 1 1/4 Steel, Chromium 6 Free
16-20 XHQ1-S Straight Code 61 37° Flare 1 1 1/4 Steel, Chromium 6 Free
16-20 XHQ2-S Straight Code 62 37° Flare 1 1 1/4 Steel, Chromium 6 Free
16-24 XHQ1-S Straight Code 61 37° Flare 1 1 1/2 Steel, Chromium 6 Free
16-24 XHQ2-S Straight Code 62 37° Flare 1 1 1/2 Steel, Chromium 6 Free
20 F5OHQ1-S Straight Code 61 SAE-ORB 1 1/4 1 1/4 Steel, Chromium 6 Free
20 F5OHQ2-S Straight Code 62 SAE-ORB 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOEQ1-S 90° Elbow Code 61 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOEQ2-S 90° Elbow Code 62 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOEQ2-S ZJ 90° Elbow Code 62 O-ring Face Seal 1 1/4 1 1/4 Steel, Zinc Nickel
20 LOHQ1-S Straight Code 61 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOHQ1-S ZJ Straight Code 61 O-ring Face Seal 1 1/4 1 1/4 Steel, Zinc Nickel
20 LOHQ2-S Straight Code 62 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOVQ1-S 45° Elbow Code 61 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOVQ2-S 45° Elbow Code 62 O-ring Face Seal 1 1/4 1 1/4 Steel, Chromium 6 Free
20 LOVQ2-S ZJ 45° Elbow Code 62 O-ring Face Seal 1 1/4 1 1/4 Steel, Zinc Nickel
20 XEQ1-S 90° Elbow Code 61 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20 XEQ2-S 90° Elbow Code 62 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20 XHQ1-S Straight Code 61 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20 XHQ2-S Straight Code 62 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20 XVQ1-S 45° Elbow Code 61 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20 XVQ2-S 45° Elbow Code 62 37° Flare 1 1/4 1 1/4 Steel, Chromium 6 Free
20-16 XHQ1-S Straight Code 61 37° Flare 1 1/4 1 Steel, Chromium 6 Free
20-16 XHQ2-S Straight Code 62 37° Flare 1 1/4 1 Steel, Chromium 6 Free
20-24 XEQ1-S 90° Elbow Code 61 37° Flare 1 1/4 1 1/2 Steel, Chromium 6 Free
20-24 XEQ2-S 90° Elbow Code 62 37° Flare 1 1/4 1 1/2 Steel, Chromium 6 Free
20-24 XHQ1-S Straight Code 61 37° Flare 1 1/4 1 1/2 Steel, Chromium 6 Free
20-24 XHQ2-S Straight Code 62 37° Flare 1 1/4 1 1/2 Steel, Chromium 6 Free
24 F5OHQ1-S Straight Code 61 SAE-ORB 1 1/2 1 1/2 Steel, Chromium 6 Free
24 F5OHQ2-S Straight Code 62 SAE-ORB 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOEQ1-S 90° Elbow Code 61 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOEQ2-S 90° Elbow Code 62 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOHQ1-S Straight Code 61 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOHQ2-S Straight Code 62 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOVQ1-S 45° Elbow Code 61 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 LOVQ2-S 45° Elbow Code 62 O-ring Face Seal 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XEQ1-S 90° Elbow Code 61 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XEQ2-S 90° Elbow Code 62 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XHQ1-S Straight Code 61 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XHQ1-S ZJ Straight Code 61 37° Flare 1 1/2 1 1/2 Steel, Zinc Nickel
24 XHQ2-S Straight Code 62 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XVQ1-S 45° Elbow Code 61 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24 XVQ2-S 45° Elbow Code 62 37° Flare 1 1/2 1 1/2 Steel, Chromium 6 Free
24-20 XHQ1-S Straight Code 61 37° Flare 1 1/2 1 1/4 Steel, Chromium 6 Free
24-20 XHQ2-S Straight Code 62 37° Flare 1 1/2 1 1/4 Steel, Chromium 6 Free
24-32 XHQ1-S Straight Code 61 37° Flare 1 1/2 2 Steel, Chromium 6 Free
32 F5OHQ1-S Straight Code 61 SAE-ORB 2 2 Steel, Chromium 6 Free
32 XEQ1-S 90° Elbow Code 61 37° Flare 2 2 Steel, Chromium 6 Free
32 XHQ1-S Straight Code 61 37° Flare 2 2 Steel, Chromium 6 Free
32 XHQ2-S Straight Code 62 37° Flare 2 2 Steel, Chromium 6 Free
32 XVQ1-S 45° Elbow Code 61 37° Flare 2 2 Steel, Chromium 6 Free
8 XEQ1-S 90° Elbow Code 61 37° Flare 1/2 1/2 Steel, Chromium 6 Free
8 XHQ1-S Straight Code 61 37° Flare 1/2 1/2 Steel, Chromium 6 Free
8-12 XEQ1-S 90° Elbow Code 61 37° Flare 1/2 3/4 Steel, Chromium 6 Free
8-12 XHQ1-S Straight Code 61 37° Flare 1/2 3/4 Steel, Chromium 6 Free
