Parker Fittings接头
Pneumatic Fittings
Oscillating Elbows

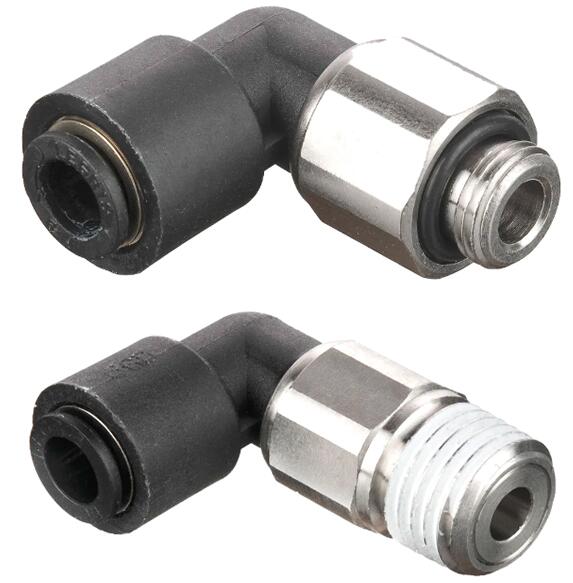

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing.





Being the world's leader in push-to-connect fitting technology Parker's osciliating elbows simplifies circuit assembly. The oscillating fitting features low-friction washers enabling the fitting to rotate in conjunction with the stroke of the cylinder piston. Parker's oscillating elbows reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A D-seal in the oscillating elbow provides a positive seal on the O.D. of the tubing in both static and dynamic positions. The D-seal deforms during insertion of the tubing lowering the insertion force without compromising the sealing feature. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.
For use with the following Parker Parflex Division tubing.



Oscillating Elbows



- Semi-Rigid nylon
- Nylon
- Polyurethane 95 Durometer Shore A
- Fluoropolymer

Markets:
- Pneumatic
- Robotic
- Packaging
- Textile
- Semi-conductor

Features/Benefits:
- Glass reinforced nylon 6.6 body
- Stainless steel gripping ring
- Low-friction washers
- Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
- Nitrile o-ring
- Nickel plated brass threads

Applications:
- Air
- Cutting
- Inert Gases



Technical Specifications

Connection Type: Push-to-Connect, Thread
Shape: 90° Elbow
Minimum Operating Temperature: -4 °F, -20 °C
Maximum Operating Temperature: 175 °F, 80 °C
Maximum Operating Pressure: 290 psi, 20 bar
Fitting Material: Glass Reinforced Nylon 6.6
Tube Material: Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer
Seal Material: Nitrile
Gripping Ring Material: Stainless Steel
Specifications Met: ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Application: Air, Cutting Fluids, Inert Gases
Product Style: Tube to Pipe
Connection 1 Size: Push-to-Connect



Oscillating Elbows 型号

Part Shape Connection 1 Tube O.D. (inch) Connection 1 Tube O.D. (mm) Connection 2 Thread Size (inch) Connection 2 Thread Size (mm) Connection 2 Thread Style
369PLPO-10M-4G 90° Elbow na 10 na 1/4 BSPP
369PLPO-10M-6G 90° Elbow na 10 na 3/8 BSPP
369PLPO-12M-4G 90° Elbow na 12 na 1/4 BSPP
369PLPO-12M-6G 90° Elbow na 12 na 3/8 BSPP
369PLPO-4M-2G 90° Elbow na 4 na 1/8 BSPP
369PLPO-4M-M5 90° Elbow na 4 na M5 Metric
369PLPO-6M-2G 90° Elbow na 6 na 1/8 BSPP
369PLPO-6M-4G 90° Elbow na 6 na 1/4 BSPP
369PLPO-6M-M5 90° Elbow na 6 na M5 Metric
369PLPO-8M-2G 90° Elbow na 8 na 1/8 BSPP
369PLPO-8M-4G 90° Elbow na 8 na 1/4 BSPP
369PLPO-8M-6G 90° Elbow na 8 na 3/8 BSPP
W369PLPO-10M-4R 90° Elbow na 10 na 1/4 BSPT
W369PLPO-10M-6R 90° Elbow na 10 na 3/8 BSPT
W369PLPO-12M-4R 90° Elbow na 12 na 1/4 BSPT
W369PLPO-12M-6R 90° Elbow na 12 na 3/8 BSPT
W369PLPO-4-2 90° Elbow 1/4 na 1/8 na NPT
W369PLPO-4-4 90° Elbow 1/4 na 1/4 na NPT
W369PLPO-4M-2 90° Elbow 5/32 4 1/8 na NPT
W369PLPO-4M-2R 90° Elbow na 6 na 1/8 BSPT
W369PLPO-6M-2R 90° Elbow na 6 na 1/8 BSPT
W369PLPO-6M-4R 90° Elbow na 6 na 1/4 BSPT
W369PLPO-8M-2R 90° Elbow na 8 na 1/8 BSPT
W369PLPO-8M-4R 90° Elbow na 8 na 1/4 BSPT
W369PLPO-8M-6R 90° Elbow na 8 na 3/8 BSPT
