Grease Fittings
Wellhead Grease Fittings, Packing Glands Series

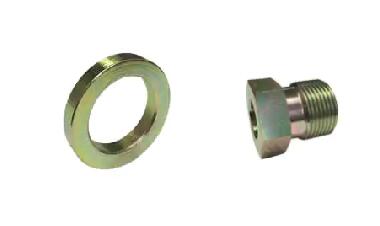

Parker PGI's Packing Glands compress the stem packing, effectively sealing upon the stem of the lockscrew.
Parker PGI's Packing Glands feature both standard and extended length packing glands. Standard packing glands are produced from 1215 material and are Zinc plated. Additional materials available upon request.
Wellhead Grease Fittings, Packing Glands Series
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- 1215 Material
- Zinc Plated for protection
Applications:
- Wellhead Equipment
Technical Specifications
| Connection Thread Size: |
1-1/2"-6 UNC | 1-1/2"-8 UN | 1-1/2"-10 UN | 1-3/4"-8 UN | 1-5/8"-12 UN | 1-1/2"-12 UNF | 1-3/4"-12 UN inch |
| Bore Diameter: |
57/64" | 1-5/32" | 1-1/32" | 53/64" | 1-1/64" inch |
| Length: |
1-1/4" | 1-7/8" | 2-3/4" | 2-1/8" | 2-11/16" |
| Body Size: |
7/8" | 1-1/4" | 1-5/16" | 1-3/4" | 1-15/16" inch |
| Nut Hex Size: |
1-5/8" | 2" | 1-3/4" | 1-1/2" inch |
| Body Material: |
1215 |
| Heat Treatment: |
Zinc Plated |
| Accessories Included: |
Junk Rings Required: JR10-10 | JR11-10 | JR12-10 | JR14-10 | JR20-10 |
