Parker派克电磁阀

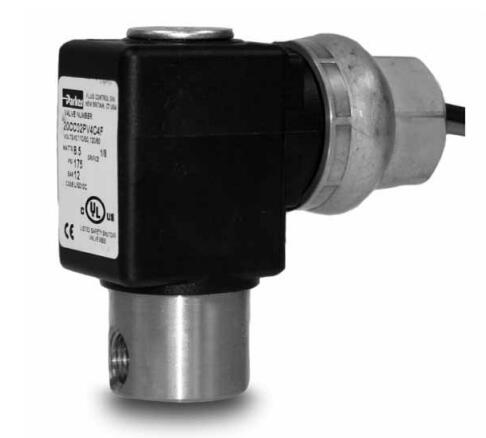

Parker 2-Way Normally Closed, 1/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/8" NPT Solenoid Valves provide operating pressures up to 3000 PSI and flow factors up to 0.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.





Parker's 2-Way Normally Closed 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction.



Parker 2-Way Normally Closed, 1/8" NPT General Purpose Solenoid Valves

Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment

Technical Specifications

Application: General Purpose Valves
Product Series: 3000, 7000 and 204 Series
Valve Type: 2-Way
Function: Normally Closed
Port Size: 1/8 inch
Input Voltage: Up to 240/60 (AC) or 24 (VDC)
Body Material: Stainless or Brass
Seal Material: NBR, FKM, Nylon or PCTFE
Orifice 1 Size: 1/32 to 5/32 inch
Flow Coefficient 1: 0.02 to 0.5 Cv
Power Consumption: 6 to 24 (AC) or 1.5 to 22 (DC) W
Coil Type: 1/2" Conduit, 18" Leads, DIN Form A, Grommet Housing, 12" Leads, Hazardous Location Coil, Integrated Molded, 1/4" Tab, Open Frame, 1/4" Tab or Open Frame, 18" Leads
Maximum Pressure Differential: 100 to 3000 (AC) or 30 to 3000 (DC) psi
Number of Ports: 2
Actuation Type: Direct Acting
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: -20 °F
Maximum Fluid Temperature: 240 °F
Coil Specifications Met: Nema 4X or n/a



Parker 2-Way Normally Closed, 1/8" NPT General Purpose Solenoid Valves型号



Part
Voltage (V)
Body Material
Seal Material
Orifice 1 Size (inch)
Flow Factor 1 (Cv)
Power (Watts)
Coil Type
Maximum Pressure Differential (psi)
12 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
1/2" Conduit, 18" Leads
390 psi (DC)
24 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
1/2" Conduit, 18" Leads
390 psi (DC)
24/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
1/2" Conduit, 18" Leads
950 psi (AC)
110/50-120/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
1/2" Conduit, 18" Leads
950 psi (AC)
220/50-240/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
1/2" Conduit, 18" Leads
950 psi (AC)
12 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
DIN Form A
390 psi (DC)
24 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
DIN Form A
390 psi (DC)
24/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
DIN Form A
950 psi (AC)
110/50-120/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
DIN Form A
950 psi (AC)
220/50-240/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
DIN Form A
950 psi (AC)
12 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
Open Frame, 18" Leads
390 psi (DC)
24 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
Open Frame, 18" Leads
390 psi (DC)
24/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 18" Leads
950 psi (AC)
110/50-120/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 18" Leads
950 psi (AC)
220/50-240/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 18" Leads
950 psi (AC)
12 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
Open Frame, 1/4" Tab
390 psi (DC)
24 VDC
Stainless
FKM
3/64
0.06
8 Watts (DC)
Open Frame, 1/4" Tab
390 psi (DC)
24/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 1/4" Tab
950 psi (AC)
110/50-120/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 1/4" Tab
950 psi (AC)
220/50-240/60
Stainless
FKM
3/64
0.06
8.5 Watts (AC)
Open Frame, 1/4" Tab
950 psi (AC)
12 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
1/2" Conduit, 18" Leads
255 psi (DC)
24 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
1/2" Conduit, 18" Leads
255 psi (DC)
24/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
1/2" Conduit, 18" Leads
625 psi (AC)
110/50-120/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
1/2" Conduit, 18" Leads
625 psi (AC)
220/50-240/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
1/2" Conduit, 18" Leads
625 psi (AC)
12 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
DIN Form A
255 psi (DC)
24 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
DIN Form A
255 psi (DC)
24/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
DIN Form A
625 psi (AC)
110/50-120/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
DIN Form A
625 psi (AC)
220/50-240/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
DIN Form A
625 psi (AC)
12 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
Open Frame, 18" Leads
255 psi (DC)
24 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
Open Frame, 18" Leads
255 psi (DC)
24/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 18" Leads
625 psi (AC)
110/50-120/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 18" Leads
625 psi (AC)
220/50-240/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 18" Leads
625 psi (AC)
12 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
Open Frame, 1/4" Tab
255 psi (DC)
24 VDC
Stainless
FKM
1/16
0.1
8 Watts (DC)
Open Frame, 1/4" Tab
255 psi (DC)
24/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 1/4" Tab
625 psi (AC)
110/50-120/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 1/4" Tab
625 psi (AC)
220/50-240/60
Stainless
FKM
1/16
0.1
8.5 Watts (AC)
Open Frame, 1/4" Tab
625 psi (AC)
12 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
1/2" Conduit, 18" Leads
130 psi (DC)
24 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
1/2" Conduit, 18" Leads
130 psi (DC)
24/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
1/2" Conduit, 18" Leads
320 psi (AC)
110/50-120/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
1/2" Conduit, 18" Leads
320 psi (AC)
220/50-240/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
1/2" Conduit, 18" Leads
320 psi (AC)
12 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
DIN Form A
130 psi (DC)
24 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
DIN Form A
130 psi (DC)
24/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
DIN Form A
320 psi (AC)
110/50-120/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
DIN Form A
320 psi (AC)
220/50-240/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
DIN Form A
320 psi (AC)
12 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
Open Frame, 18" Leads
130 psi (DC)
24 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
Open Frame, 18" Leads
130 psi (DC)
24/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 18" Leads
320 psi (AC)
110/50-120/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 18" Leads
320 psi (AC)
220/50-240/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 18" Leads
320 psi (AC)
12 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
Open Frame, 1/4" Tab
130 psi (DC)
24 VDC
Stainless
FKM
3/32
0.22
8 Watts (DC)
Open Frame, 1/4" Tab
130 psi (DC)
24/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 1/4" Tab
320 psi (AC)
110/50-120/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 1/4" Tab
320 psi (AC)
220/50-240/60
Stainless
FKM
3/32
0.22
8.5 Watts (AC)
Open Frame, 1/4" Tab
320 psi (AC)
12 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
1/2" Conduit, 18" Leads
100 psi (DC)
24 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
1/2" Conduit, 18" Leads
100 psi (DC)
24/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
1/2" Conduit, 18" Leads
245 psi (AC)
110/50-120/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
1/2" Conduit, 18" Leads
245 psi (AC)
220/50-240/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
1/2" Conduit, 18" Leads
245 psi (AC)
12 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
DIN Form A
100 psi (DC)
24 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
DIN Form A
100 psi (DC)
24/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
DIN Form A
245 psi (AC)
110/50-120/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
DIN Form A
245 psi (AC)
220/50-240/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
DIN Form A
245 psi (AC)
12 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
Open Frame, 18" Leads
100 psi (DC)
24 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
Open Frame, 18" Leads
100 psi (DC)
24/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 18" Leads
245 psi (AC)
110/50-120/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 18" Leads
245 psi (AC)
220/50-240/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 18" Leads
245 psi (AC)
12 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
Open Frame, 1/4" Tab
100 psi (DC)
24 VDC
Stainless
FKM
7/64
0.28
8 Watts (DC)
Open Frame, 1/4" Tab
100 psi (DC)
24/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 1/4" Tab
245 psi (AC)
110/50-120/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 1/4" Tab
245 psi (AC)
220/50-240/60
Stainless
FKM
7/64
0.28
8.5 Watts (AC)
Open Frame, 1/4" Tab
245 psi (AC)
12 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
1/2" Conduit, 18" Leads
60 psi (DC)
24 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
1/2" Conduit, 18" Leads
60 psi (DC)
24/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
1/2" Conduit, 18" Leads
175 psi (AC)
110/50-120/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
1/2" Conduit, 18" Leads
175 psi (AC)
220/50-240/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
1/2" Conduit, 18" Leads
175 psi (AC)
12 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
DIN Form A
60 psi (DC)
24 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
DIN Form A
60 psi (DC)
24/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
DIN Form A
175 psi (AC)
110/50-120/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
DIN Form A
175 psi (AC)
220/50-240/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
DIN Form A
175 psi (AC)
12 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
Open Frame, 18" Leads
60 psi (DC)
24 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
Open Frame, 18" Leads
60 psi (DC)
24/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 18" Leads
175 psi (AC)
110/50-120/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 18" Leads
175 psi (AC)
220/50-240/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 18" Leads
175 psi (AC)
12 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
Open Frame, 1/4" Tab
60 psi (DC)
24 VDC
Stainless
FKM
1/8
0.32
8 Watts (DC)
Open Frame, 1/4" Tab
60 psi (DC)
24/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 1/4" Tab
175 psi (AC)
110/50-120/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 1/4" Tab
175 psi (AC)
220/50-240/60
Stainless
FKM
1/8
0.32
8.5 Watts (AC)
Open Frame, 1/4" Tab
175 psi (AC)
12 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
1/2" Conduit, 18" Leads
30 psi (DC)
24 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
1/2" Conduit, 18" Leads
30 psi (DC)
24/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
1/2" Conduit, 18" Leads
100 psi (AC)
110/50-120/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
1/2" Conduit, 18" Leads
100 psi (AC)
220/50-240/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
1/2" Conduit, 18" Leads
100 psi (AC)
12 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
DIN Form A
30 psi (DC)
24 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
DIN Form A
30 psi (DC)
24/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
DIN Form A
100 psi (AC)
110/50-120/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
DIN Form A
100 psi (AC)
220/50-240/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
DIN Form A
100 psi (AC)
12 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
Open Frame, 18" Leads
30 psi (DC)
24 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
Open Frame, 18" Leads
30 psi (DC)
24/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 18" Leads
100 psi (AC)
110/50-120/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 18" Leads
100 psi (AC)
220/50-240/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 18" Leads
100 psi (AC)
12 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
Open Frame, 1/4" Tab
30 psi (DC)
24 VDC
Stainless
FKM
5/32
0.38
8 Watts (DC)
Open Frame, 1/4" Tab
30 psi (DC)
24/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 1/4" Tab
100 psi (AC)
110/50-120/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 1/4" Tab
100 psi (AC)
220/50-240/60
Stainless
FKM
5/32
0.38
8.5 Watts (AC)
Open Frame, 1/4" Tab
100 psi (AC)
24 VDC
Brass
NBR
1/16
0.09
6 Watts (DC)
Integrated Molded, 1/4" Tab
300 psi (DC)
110/50-120/60
Brass
NBR
1/16
0.09
6 Watts (AC)
Integrated Molded, 1/4" Tab
300 psi (AC)
24 VDC
Brass
NBR
1/16
0.09
6 Watts (DC)
Grommet Housing, 12" Leads
300 psi (DC)
24/60
Brass
NBR
1/16
0.09
7.5 Watts (AC)
Grommet Housing, 12" Leads
300 psi (AC)
110/50-120/60
Brass
NBR
1/16
0.09
6 Watts (AC)
Grommet Housing, 12" Leads
300 psi (AC)
24 VDC
Brass
NBR
3/32
0.18
6 Watts (DC)
Integrated Molded, 1/4" Tab
175 psi (DC)
24/60
Brass
NBR
3/32
0.18
7.5 Watts (AC)
Integrated Molded, 1/4" Tab
175 psi (AC)
110/50-120/60
Brass
NBR
3/32
0.18
6 Watts (AC)
Integrated Molded, 1/4" Tab
175 psi (AC)
12 VDC
Brass
NBR
3/32
0.18
6 Watts (DC)
Grommet Housing, 12" Leads
175 psi (DC)
24 VDC
Brass
NBR
3/32
0.18
6 Watts (DC)
Grommet Housing, 12" Leads
175 psi (DC)
110/50-120/60
Brass
NBR
3/32
0.18
6 Watts (AC)
Grommet Housing, 12" Leads
175 psi (AC)
24 VDC
Brass
NBR
1/8
0.24
6 Watts (DC)
Integrated Molded, 1/4" Tab
100 psi (DC)
110/50-120/60
Brass
NBR
1/8
0.24
6 Watts (AC)
Integrated Molded, 1/4" Tab
100 psi (AC)
220/50-240/60
Brass
NBR
1/8
0.24
6 Watts (AC)
Integrated Molded, 1/4" Tab
100 psi (AC)
12 VDC
Brass
NBR
1/8
0.24
6 Watts (DC)
Grommet Housing, 12" Leads
100 psi (DC)
24 VDC
Brass
NBR
1/8
0.24
6 Watts (DC)
Grommet Housing, 12" Leads
100 psi (DC)
110/50-120/60
Brass
NBR
1/8
0.24
6 Watts (AC)
Grommet Housing, 12" Leads
100 psi (AC)
24 VDC
Stainless
FKM
1/16
0.09
6 Watts (DC)
Integrated Molded, 1/4" Tab
300 psi (DC)
110/50-120/60
Stainless
FKM
1/16
0.09
6 Watts (AC)
Integrated Molded, 1/4" Tab
300 psi (AC)
24 VDC
Stainless
FKM
1/16
0.09
6 Watts (DC)
Grommet Housing, 12" Leads
300 psi (DC)
110/50-120/60
Stainless
FKM
1/16
0.09
6 Watts (AC)
Grommet Housing, 12" Leads
300 psi (AC)
24 VDC
Stainless
FKM
3/32
0.18
6 Watts (DC)
Integrated Molded, 1/4" Tab
175 psi (DC)
24 VDC
Stainless
FKM
3/32
0.18
6 Watts (DC)
Grommet Housing, 12" Leads
175 psi (DC)
24/60
Stainless
FKM
3/32
0.18
7.5 Watts (AC)
Integrated Molded, 1/4" Tab
175 psi (AC)
12 VDC
Stainless
NBR
3/32
0.18
10 Watts (DC)
1/2" Conduit, 18" Leads
275 psi (DC)
24 VDC
Stainless
NBR
3/32
0.18
10 Watts (DC)
1/2" Conduit, 18" Leads
275 psi (DC)
220/50-240/60
Stainless
NBR
3/32
0.18
10 Watts (AC)
1/2" Conduit, 18" Leads
275 psi (AC)
12 VDC
Stainless
NBR
3/32
0.18
10 Watts (DC)
DIN Form A
275 psi (DC)
24 VDC
Stainless
NBR
3/32
0.18
10 Watts (DC)
DIN Form A
275 psi (DC)
110/50-120/60
Stainless
NBR
3/32
0.18
10 Watts (AC)
DIN Form A
275 psi (AC)
12 VDC
Stainless
NBR
3/32
0.18
10 Watts (DC)
Hazardous Location Coil
275 psi (DC)
24 VDC
Stainless
NBR
3/32
0.18
22 Watts (DC)
Hazardous Location Coil
275 psi (DC)
110/50-120/60
Stainless
NBR
3/32
0.18
22 Watts (AC)
Hazardous Location Coil
275 psi (AC)
220/50-240/60
Stainless
NBR
3/32
0.18
22 Watts (AC)
Hazardous Location Coil
275 psi (AC)
24 VDC
Stainless
NBR
3/32
0.18
1.5 Watts (DC)
Hazardous Location Coil
275 psi (DC)
110/50-120/60
Stainless
NBR
3/32
0.18
24 Watts (AC)
Hazardous Location Coil
275 psi (AC)
24 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
1/2" Conduit, 18" Leads
150 psi (AC)
24 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
1/2" Conduit, 18" Leads
200 psi (DC)
24 VDC
Stainless
NBR
1/8
0.28
10 Watts (DC)
1/2" Conduit, 18" Leads
200 psi (DC)
24 VDC
Stainless
NBR
1/8
0.28
10 Watts (DC)
DIN Form A
200 psi (DC)
110/50-120/60
Stainless
NBR
1/8
0.28
22 Watts (AC)
DIN Form A
200 psi (AC)
220/50-240/60
Stainless
NBR
1/8
0.28
10 Watts (AC)
DIN Form A
200 psi (AC)
12 VDC
Stainless
NBR
1/8
0.28
10 Watts (DC)
DIN Form A
200 psi (DC)
110/50-120/60
Stainless
NBR
1/8
0.28
10 Watts (AC)
DIN Form A
200 psi (AC)
12 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
DIN Form A
200 psi (DC)
24 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
DIN Form A
200 psi (DC)
12 VDC
Stainless
NBR
1/8
0.28
10 Watts (DC)
Hazardous Location Coil
200 psi (DC)
24 VDC
Stainless
NBR
1/8
0.28
10 Watts (DC)
Hazardous Location Coil
200 psi (DC)
110/50-120/60
Stainless
NBR
1/8
0.28
10 Watts (AC)
Hazardous Location Coil
200 psi (AC)
12 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
Hazardous Location Coil
200 psi (DC)
24 VDC
Stainless
NBR
1/8
0.28
22 Watts (DC)
Hazardous Location Coil
200 psi (DC)
110/50-120/60
Stainless
NBR
1/8
0.28
22 Watts (AC)
Hazardous Location Coil
200 psi (AC)
220/50-240/60
Stainless
NBR
1/8
0.28
22 Watts (AC)
Hazardous Location Coil
200 psi (AC)
24 VDC
Stainless
NBR
1/8
0.28
1.5 Watts (DC)
Hazardous Location Coil
200 psi (DC)
110/50-120/60
Stainless
NBR
1/8
0.28
24 Watts (AC)
Hazardous Location Coil
200 psi (AC)
110/50-120/60
Stainless
Nylon
1/32
0.2
10 Watts (AC)
1/2" Conduit, 18" Leads
3000 psi (AC)
12 VDC
Stainless
Nylon
1/32
0.021
10 Watts (DC)
1/2" Conduit, 18" Leads
3000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.2
10 Watts (DC)
1/2" Conduit, 18" Leads
3000 psi (DC)
110/50-120/60
Stainless
Nylon
1/32
0.021
10 Watts (AC)
1/2" Conduit, 18" Leads
3000 psi (AC)
12 VDC
Stainless
Nylon
1/32
0.2
10 Watts (DC)
1/2" Conduit, 18" Leads
3000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.02
22 Watts (DC)
1/2" Conduit, 18" Leads
3000 psi (DC)
220/50-240/60
Stainless
Nylon
1/16
0.07
10 Watts (AC)
DIN Form A
3000 psi (AC)
12 VDC
Stainless
Nylon
1/8
0.5
22 Watts (DC)
DIN Form A
3000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.02
22 Watts (DC)
DIN Form A
3000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.02
10 Watts (DC)
Hazardous Location Coil
3000 psi (DC)
110/50-120/60
Stainless
Nylon
1/32
0.021
10 Watts (AC)
Hazardous Location Coil
3000 psi (AC)
24 VDC
Stainless
Nylon
1/32
0.02
22 Watts (DC)
Hazardous Location Coil
3000 psi (DC)
220/50-240/60
Stainless
Nylon
1/32
0.21
22 Watts (AC)
Hazardous Location Coil
3000 psi (AC)
12 VDC
Stainless
Nylon
1/16
0.07
10 Watts (DC)
1/2" Conduit, 18" Leads
1250 psi (DC)
24 VDC
Stainless
Nylon
1/16
0.07
10 Watts (DC)
1/2" Conduit, 18" Leads
1250 psi (AC)
110/50-120/60
Stainless
Nylon
1/16
0.07
10 Watts (AC)
1/2" Conduit, 18" Leads
1250 psi (AC)
220/50-240/60
Stainless
Nylon
1/16
0.07
10 Watts (AC)
1/2" Conduit, 18" Leads
1250 psi (AC)
12 VDC
Stainless
Nylon
1/16
0.07
10 Watts (DC)
1/2" Conduit, 18" Leads
1000 psi (DC)
24 VDC
Stainless
Nylon
1/16
0.07
10 Watts (DC)
1/2" Conduit, 18" Leads
1250 psi (DC)
220/50-240/60
Stainless
Nylon
1/16
0.07
10 Watts (AC)
1/2" Conduit, 18" Leads
1000 psi (AC)
12 VDC
Stainless
Nylon
1/16
0.07
22 Watts (DC)
1/2" Conduit, 18" Leads
1000 psi (DC)
24 VDC
Stainless
Nylon
1/16
0.07
22 Watts (DC)
1/2" Conduit, 18" Leads
1000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.02
10 Watts (DC)
DIN Form A
2500 psi (DC)
12 VDC
Stainless
Nylon
1/16
0.07
22 Watts (DC)
DIN Form A
1000 psi (DC)
24 VDC
Stainless
Nylon
1/32
0.021
22 Watts (DC)
DIN Form A
1000 psi (DC)
110/50-120/60
Stainless
Nylon
1/16
0.07
10 Watts (AC)
Hazardous Location Coil
1000 psi (AC)
220/50-240/60
Stainless
Nylon
1/16
0.07
22 Watts (AC)
Hazardous Location Coil
1250 psi (AC)
12 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
1/2" Conduit, 18" Leads
205 psi (DC)
24 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
1/2" Conduit, 18" Leads
205 psi (DC)
110/50-120/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
1/2" Conduit, 18" Leads
365 psi (AC)
220/50-240/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
1/2" Conduit, 18" Leads
205 psi (AC)
24 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
1/2" Conduit, 18" Leads
365 psi (DC)
220/50-240/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
1/2" Conduit, 18" Leads
365 psi (AC)
24 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
1/2" Conduit, 18" Leads
125 psi (DC)
110/50-120/60
Brass
PCTFE
1/8
0.31
22 Watts (AC)
1/2" Conduit, 18" Leads
365 psi (AC)
12 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
DIN Form A
365 psi (DC)
24 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
DIN Form A
365 psi (AC)
110/50-120/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
DIN Form A
205 psi (AC)
220/50-240/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
DIN Form A
205 psi (AC)
12 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
DIN Form A
125 psi (DC)
110/50-120/60
Brass
PCTFE
1/8
0.31
10 Watts (AC)
DIN Form A
365 psi (AC)
12 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
DIN Form A
205 psi (DC)
24 VDC
Brass
PCTFE
1/16
0.11
22 Watts (DC)
DIN Form A
125 psi (DC)
12 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
Hazardous Location Coil
205 psi (DC)
24 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
Hazardous Location Coil
125 psi (DC)
24 VDC
Brass
PCTFE
1/8
0.31
10 Watts (DC)
Hazardous Location Coil
365 psi (DC)
12 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
Hazardous Location Coil
365 psi (DC)
24 VDC
Brass
PCTFE
1/8
0.31
22 Watts (DC)
Hazardous Location Coil
365 psi (DC)
110/50-120/60
Brass
PCTFE
1/8
0.31
22 Watts (AC)
Hazardous Location Coil
365 psi (AC)
220/50-240/60
Brass
PCTFE
1/8
0.31
22 Watts (AC)
Hazardous Location Coil
365 psi (AC)






信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
