Parker Skinner Solenoid Valves

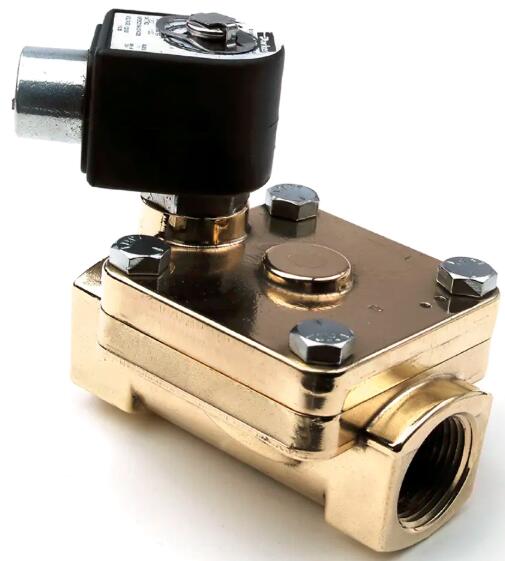

Parker 2-Way Normally Closed, 1" NPT Steam Valves
Parker 2-Way Normally Closed, 1" NPT Steam Valves provide operating pressures up to 125 PSI and flow factors of 12.2 CV's. They have a brass body, offer multiple coil options and are made for high temperature water and steam applications.
Parker 2-Way Normally Closed, 1" NPT Steam Valves are specifically designed to withstand harsh conditions and high temperatures for water and steam applications. These valves offer brass bodies, hung diaphragm or diaphragm pivoted edge actuation, and EPDM or PTFE seals. Many designs
include integral stainless steel main and pilot orifices.
Parker 2-Way Normally Closed, 1" NPT Steam Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Commercial Kitchen
- Process Control
- Sterilization
- Hospital Equipment
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Industrial laundry machines
- Industrial dish washing machines
- Institutional cooking and food warming equipment
- Steam tables, steam cookers/kettles
- Sterilizers
- Dry cleaning equipment and steam irons
- Hospital equipment
- Steam presses
- Steam baths
- Autoclaves
Technical Specifications
| Product Series: |
Gold Ring Series |
| Valve Type: |
Steam Valve |
| Function: |
Normally Closed |
| Port Size: |
1 inch |
| Input Voltage: |
24/60 to 220/50-240/60 (AC) |
| Body Material: |
Brass |
| Seal Material: |
EPDM or PTFE |
| Orifice 1 Size: |
1 inch |
| Flow Coefficient 1: |
12.2 Cv |
| Power Consumption: |
11 Watt (AC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 4X Or 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 Or DIN Form A, Class F or H |
| Maximum Pressure Differential: |
Up to 125 psi (AC) psi |
| Number of Ports: |
2 |
| Actuation Type: |
Diaphragm, Pivoted Edge |
| Media: |
General Purpose for Steam |
| Port Type: |
NPT |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
1 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
353 °F |
| Coil Specifications Met: |
Class F or Class H |
Parker 2-Way Normally Closed, 1" NPT Steam Valves型号
| Part |
Voltage (V) |
Seal Material |
Coil Type |
Maximum Pressure Differential (psi) |
| 16FS5C2364ACF4C01 |
24/60 |
E7736 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
50 psi (AC) |
| 16FS5C2364ACF4C05 |
110/50-120/60 |
E7736 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
50 psi (AC) |
| 16FS5C2364ACFEC01 |
24/60 |
E7736 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
50 psi (AC) |
| 16FS5C2364ACFEC05 |
110/50-120/60 |
E7736 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
50 psi (AC) |
| 16FS5C2364ACFEC15 |
220/50-240/60 |
E7736 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
50 psi (AC) |
| 16FS5C2364ACFPH01 |
24/60 |
E7736 |
DIN Form A, Class F |
50 psi (AC) |
| 16FS5C2364ACFPH05 |
110/50-120/60 |
E7736 |
DIN Form A, Class F |
50 psi (AC) |
| 16FS5C2364ACFPH15 |
220/50-240/60 |
E7736 |
DIN Form A, Class F |
50 psi (AC) |
| 16FS5C2464ACF4C01 |
24/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
80 psi (AC) |
| 16FS5C2464ACF4C05 |
110/50-120/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
80 psi (AC) |
| 16FS5C2464ACF4C15 |
220/50-240/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
80 psi (AC) |
| 16FS5C2464ACFEC01 |
24/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
80 psi (AC) |
| 16FS5C2464ACFEC05 |
110/50-120/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
80 psi (AC) |
| 16FS5C2464ACFEC15 |
220/50-240/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
80 psi (AC) |
| 16FS5C2464ACFPH01 |
24/60 |
PTFE |
DIN Form A, Class F |
80 psi (AC) |
| 16FS5C2464ACFPH05 |
110/50-120/60 |
PTFE |
DIN Form A, Class F |
80 psi (AC) |
| 16FS5C2464ACFPH15 |
220/50-240/60 |
PTFE |
DIN Form A, Class F |
80 psi (AC) |
| 16FS5C2464ACH4C01 |
24/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
125 psi (AC) |
| 16FS5C2464ACH4C15 |
220/50-240/60 |
PTFE |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
125 psi (AC) |
| 16FS5C2464ACHPH01 |
24/60 |
PTFE |
DIN Form A, Class H |
125 psi (AC) |
|
