Parker派克电磁阀
Parker Solenoid Valves

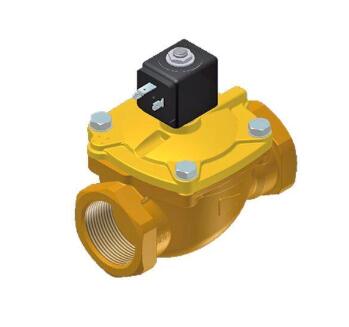

Parker 2-Way Normally Open, 1-1/2" General Purpose Solenoid Valves

Parkers' 2-Way Normally Open G 1-1/2" Solenoid Valves provide operating pressures up to 12 bar and flow factors up to 30 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.





Parkers' 2-Way Normally Open G 1-1/2" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .

Markets
- Beverage
- Process Control
- Life Sciences
- Industrial Equipment

Features/Benefits:
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Vast chemical compatibilities
- Compact design
- Long life expectancy
- Coil Modularity

Application
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation





Technical Specifications

Product Series: General Purpose Solenoid Valves
Valve Type: 2-Way
Function: Normally Open
Port Size: 1-1/2 inch
Input Voltage: 220-230VAC/50Hz or 24VDC
Body Material: Brass
Seal Material: FKM, NBR
Orifice 1 Size: 40 mm
Flow Coefficient 1: 25.2 to 30 m3/hour, 420 to 500 L/min
Power Consumption: 8 to 9 W
Coil Type: DIN, Screw Terminal, Explosion Proof, Flame Proof, 32 to 40 mm
Maximum Pressure Differential: 10 to 12 bar
Minimum Pressure Differential: 0.1 to 0.3 bar
Number of Ports: 2
Actuation Type: Pilot Operated
Media: General Purpose for Air, Liquids, Gases and Oil
Port Type: BSP
Orifice 2 Size: n/a
Flow Coefficient 2: n/a, n/a
Minimum Fluid Temperature: -10 °C
Maximum Fluid Temperature: 90 °C
Coil Specifications Met: IP44, IP65, IP67



Parker 2-Way Normally Open, 1-1/2" General Purpose Solenoid Valves型号

Part Voltage (V) Seal Material Flow Factor 1 (l/min) Power (Watts) Coil Type
322G39-2995-4818653D 220-230VAC/50Hz NBR 420 8 Coil for DIN plug connection, 32 mm
322G39-2995-481865C2 24VDC NBR 420 9 Coil for DIN plug connection, 32 mm
322G39-4270-4810003D 220-230VAC/50Hz NBR 420 8 Coil with screw terminal, 40 mm
322G39-4270-481000C2 24VDC NBR 420 8 Coil with screw terminal, 40 mm
322G3906-2995-4818653D 220-230VAC/50Hz FKM 420 8 Coil for DIN plug connection, 32 mm
322G3906-2995-481865C2 24VDC FKM 420 9 Coil for DIN plug connection, 32 mm
322G3906-4270-4810003D 220-230VAC/50Hz FKM 420 8 Coil with screw terminal, 40 mm
322G3906-4270-481000C2 24VDC FKM 420 8 Coil with screw terminal, 40 mm
322G3910-4270-4810003D 220-230VAC/50Hz NBR 425 8 Coil with screw terminal, 40 mm
322G3910-4270-481000C2 24VDC NBR 425 8 Coil with screw terminal, 40 mm
550052DIS 24VDC NBR 500 9 Coil for DIN plug connection, 32 mm
550053DIS 220-230VAC/50Hz NBR 500 8 Coil for DIN plug connection, 32 mm
550147DIS 24VDC NBR 500 8 Flame proof encapsulated electrical part "db mb", 37 mm
550148DIS 230VAC/50Hz NBR 500 8 Flame proof encapsulated electrical part "db mb", 37 mm
550187DIS 24VDC NBR 500 9 Explosion proof electrical part "nAc nCc", 32 mm
550188DIS 220-230VAC/50Hz NBR 500 8 Explosion proof electrical part "nAc nCc", 32 mm
