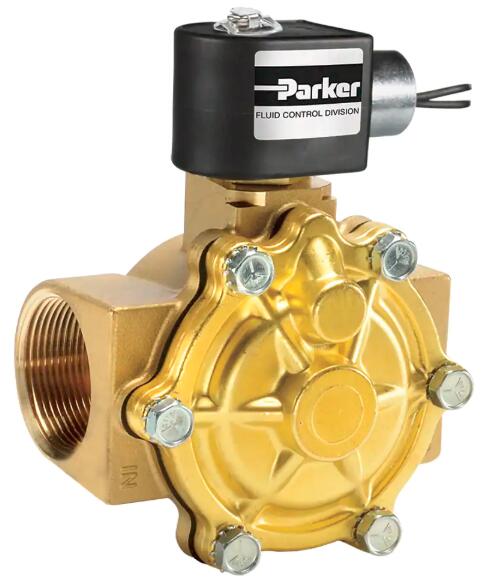

Parker 2-Way Normally Open, 1-1/2" NPT General Purpose Solenoid Valves
Parker 2-Way Normally Open, 1-1/2" NPT Solenoid Valves provide operating pressures of 125 PSI and flow factors of 22.5 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Parker's 2-Way Normally Open 1-1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Parker 2-Way Normally Open, 1-1/2" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment
Technical Specifications
| Product Series: |
Gold Ring Series |
| Valve Type: |
2-Way |
| Function: |
Normally Open |
| Port Size: |
1-1/2 inch |
| Input Voltage: |
Up to 240/60 (AC) |
| Body Material: |
Brass |
| Seal Material: |
NBR |
| Orifice 1 Size: |
1-1/4 inch |
| Flow Coefficient 1: |
22.5 Cv |
| Power Consumption: |
11 Watts (AC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X or DIN Form A, Class F |
| Maximum Pressure Differential: |
125 psi (AC) psi |
| Number of Ports: |
2 |
| Actuation Type: |
Offset Diaphragm, Piloted |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
5 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
180 °F |
| Coil Specifications Met: |
Class F |
Parker 2-Way Normally Open, 1-1/2" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Coil Type |
| 24F24O2180ACF4C01 |
24/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 24F24O2180ACF4C05 |
110/50-120/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 24F24O2180ACF4C15 |
220/50-240/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 24F24O2180ACFPH01 |
24/60 |
DIN Form A, Class F |
| 24F24O2180ACFPH05 |
110/50-120/60 |
DIN Form A, Class F |
| 24F24O2180ACFPH15 |
220/50-240/60 |
DIN Form A, Class F |
|
