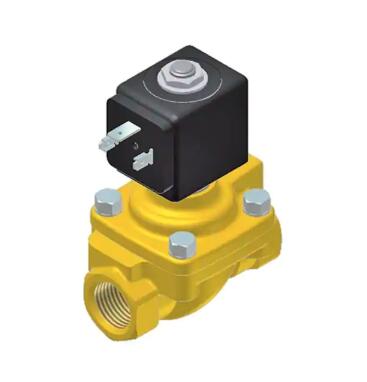

Parker 2-Way Normally Open, 1/2" General Purpose Solenoid Valves
Parkers' 2-Way Normally Open G 1/2" Solenoid Valves provide operating pressures up to 40 bar and flow factors up to 3.6 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 2-Way Normally Open G 1/2" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets:
- Beverage
- Process Control
- Life Sciences
- Industrial Equipment
Features/Benefits:
- Robust and solid design
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
Product Series: |
General Purpose Solenoid Valves |
Valve Type: |
2-Way |
Function: |
Normally Open |
Port Size: |
1/2 inch |
Input Voltage: |
220-230VAC/50Hz or 24VDC |
Body Material: |
Brass |
Seal Material: |
FKM, NBR, PUR |
Orifice 1 Size: |
12 to 15 mm |
Flow Coefficient 1: |
3 to 3.6 m3/hour, 50 to 60 L/min |
Power Consumption: |
8 to 14 W |
Coil Type: |
DIN, Screw, Flame Proof and Explosion Proof from 32 to 40mm |
Maximum Pressure Differential: |
12 to 40 bar |
Minimum Pressure Differential: |
0.1 to 1.5 bar |
Number of Ports: |
2 |
Actuation Type: |
Pilot Operated |
Media: |
General Purpose for Air, Liquids, Gases and Oil |
Port Type: |
BSP |
Orifice 2 Size: |
n/a |
Flow Coefficient 2: |
n/a, n/a |
Minimum Fluid Temperature: |
-10 °C |
Maximum Fluid Temperature: |
100 °C |
Coil Specifications Met: |
IP44, IP65, IP67 |
Parker 2-Way Normally Open, 1/2" General Purpose Solenoid Valves型号
Part |
Voltage (V) |
Seal Material |
Orifice 1 Size (mm) |
Flow Factor 1 (l/min) |
Power (Watts) |
Coil Type |
322G75-2995-4818653D |
220-230VAC/50Hz |
NBR |
15 |
60 |
8 |
Coil for DIN plug connection, 32 mm |
322G75-2995-481865C2 |
24VDC |
NBR |
15 |
60 |
9 |
Coil for DIN plug connection, 32 mm |
322G75-2995-4958703D |
220-230VAC/50Hz |
NBR |
15 |
60 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
322G75-2995-495870C2 |
24VDC |
NBR |
15 |
60 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
322G75-4270-4810003D |
220-230VAC/50Hz |
NBR |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322G75-4270-481000C2 |
24VDC |
NBR |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322G75-495905C2 |
24VDC |
NBR |
15 |
60 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
322G75-495905F4 |
230VAC/50Hz |
NBR |
15 |
60 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
322G7506-2995-4818653D |
220-230VAC/50Hz |
FKM |
15 |
60 |
8 |
Coil for DIN plug connection, 32 mm |
322G7506-2995-481865C2 |
24VDC |
FKM |
15 |
60 |
9 |
Coil for DIN plug connection, 32 mm |
322G7506-4270-4810003D |
220-230VAC/50Hz |
FKM |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322G7506-4270-481000C2 |
24VDC |
FKM |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322G7506-4270-486265C2 |
24VDC |
FKM |
15 |
60 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
322G7506-4270-486265F4 |
230VAC/50Hz |
FKM |
15 |
60 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
322H35-2995-4818653D |
220-230VAC/50Hz |
PUR |
15 |
60 |
8 |
Coil for DIN plug connection, 32 mm |
322H35-2995-481865C2 |
24VDC |
PUR |
15 |
60 |
9 |
Coil for DIN plug connection, 32 mm |
322H35-4270-4810003D |
220-230VAC/50Hz |
PUR |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322H35-4270-481000C2 |
24VDC |
PUR |
15 |
60 |
8 |
Coil with screw terminal, 40 mm |
322H75-4270-486265C2 |
24VDC |
NBR |
15 |
60 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
322H75-4270-486265F4 |
230VAC/50Hz |
NBR |
15 |
60 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
322H7506-2995-4958703D |
220-230VAC/50Hz |
FKM |
15 |
60 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
322H7506-2995-495870C2 |
24VDC |
FKM |
15 |
60 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
322H7506-495905C2 |
24VDC |
FKM |
15 |
60 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
322H7506-495905F4 |
230VAC/50Hz |
FKM |
15 |
60 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
322K4506-2995-4818653D |
220-230VAC/50Hz |
FKM |
12 |
50 |
8 |
Coil for DIN plug connection, 32 mm |
322K4506-2995-481865C2 |
24VDC |
FKM |
12 |
50 |
9 |
Coil for DIN plug connection, 32 mm |
322K4506-2995-4958703D |
220-230VAC/50Hz |
FKM |
12 |
50 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
322K4506-2995-495870C2 |
24VDC |
FKM |
12 |
50 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
322K4506-4270-4810003D |
220-230VAC/50Hz |
FKM |
12 |
50 |
8 |
Coil with screw terminal, 40 mm |
322K4506-4270-481000C2 |
24VDC |
FKM |
12 |
50 |
8 |
Coil with screw terminal, 40 mm |
322K4506-495905C2 |
24VDC |
FKM |
12 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
322K4506-495905F4 |
230VAC/50Hz |
FKM |
12 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
550046DIS |
24VDC |
NBR |
13 |
50 |
9 |
Coil for DIN plug connection, 32 mm |
550047DIS |
220-230VAC/50Hz |
NBR |
13 |
50 |
8 |
Coil for DIN plug connection, 32 mm |
550141DIS |
24VDC |
NBR |
13 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
550142DIS |
230VAC/50Hz |
NBR |
13 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
550181DIS |
24VDC |
NBR |
13 |
50 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
550182DIS |
220-230VAC/50Hz |
NBR |
13 |
50 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
|
