Parker派克电磁阀
Parker Skinner Solenoid Valves

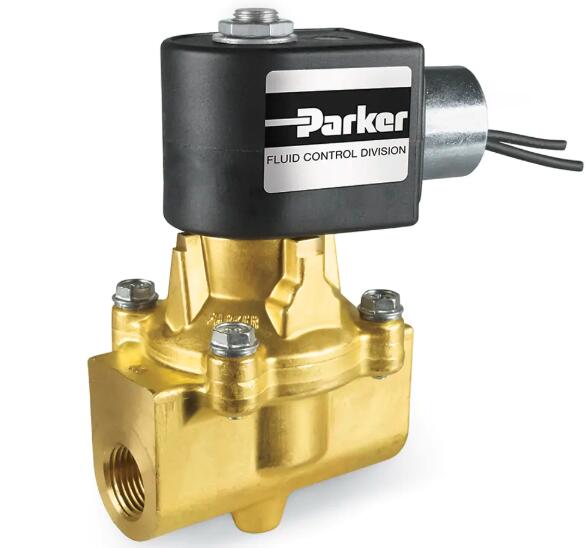

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/2" NPT Solenoid Valves provide operating pressures up to 150 PSI and a flow factor of 4 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.





Parker's 2-Way Normally Open 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves



Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment



Technical Specifications

Product Series: 7000 and Gold Ring Series
Valve Type: 2-Way
Function: Normally Open
Port Size: 1/2 inch
Input Voltage: Up to 240/60 (AC) or 24 (VDC)
Body Material: Brass or 316 Stainless
Seal Material: NBR or FKM
Orifice 1 Size: 5/8 inch
Flow Coefficient 1: 4 Cv
Power Consumption: 10 to 22 (AC) or 10 to 22 (DC) W
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H and 1/4 " Tab Terminal, Class F
Maximum Pressure Differential: 125 to 150 (AC) or 125 to 150 (DC) psi
Number of Ports: 2
Actuation Type: Direct Lift, Manual/Mech. Operated or Hung Diaphragm
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: NEMA 4X or NEMA 7, 9, Class F or Class H



Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves型号

Part
Voltage (V) Body Material Seal Material Orifice 1 Size (inch) Power (Watts) Coil Type Maximum Pressure Differential (psi)
08F23O2140A3F4C75 12 VDC Brass NBR 5/8 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 125 psi (DC)
08F23O2140A3F4C80 24 VDC Brass NBR 5/8 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 125 psi (DC)
08F23O2140A3FPH75 12 VDC Brass NBR 5/8 11.5 Watt (DC) DIN Form A, Class F 125 psi (DC)
08F23O2140A3FPH80 24 VDC Brass NBR 5/8 11.5 Watt (DC) DIN Form A, Class F 125 psi (DC)
08F23O2140ACF4C01 24/60 Brass NBR 5/8 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (AC)
08F23O2140ACF4C05 110/50-120/60 Brass NBR 5/8 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (AC)
08F23O2140ACF4C15 220/50-240/60 Brass NBR 5/8 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (AC)
08F23O2140ACFPH01 24/60 Brass NBR 5/8 11 Watt (AC) DIN Form A, Class F 150 psi (AC)
08F23O2140ACFPH05 110/50-120/60 Brass NBR 5/8 11 Watt (AC) DIN Form A, Class F 150 psi (AC)
08F23O2140ACFPH15 220/50-240/60 Brass NBR 5/8 11 Watt (AC) DIN Form A, Class F 150 psi (AC)
72228BN4UV00N0C322C1 12 VDC Brass FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (DC)
72228BN4UV00N0C322C2 24 VDC Brass FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (DC)
72228BN4UV00N0C322P3 110/50-120/60 Brass FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (AC)
72228BN4UV00N0D300C1 12 VDC Brass FKM 7/16 22 Watt (DC) DIN Form A, Class H 125 psi (DC)
72228BN4UV00N0D300C2 24 VDC Brass FKM 7/16 22 Watt (DC) DIN Form A, Class H 125 psi (DC)
72228BN4UV00N0H322C1 12 VDC Brass FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (DC)
72228BN4UV00N0H322C2 24 VDC Brass FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (DC)
72228BN4UV00N0H322P3 110/50-120/60 Brass FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (AC)
72228BN4UV00N0H322Q3 220/50-240/60 Brass FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (AC)
72228RN4UV00N0C322C1 12 VDC 316 Stainless FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (DC)
72228RN4UV00N0C322C2 24 VDC 316 Stainless FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (DC)
72228RN4UV00N0C322P3 110/50-120/60 316 Stainless FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 125 psi (AC)
72228RN4UV00N0D300C1 12 VDC 316 Stainless FKM 7/16 22 Watt (DC) DIN Form A, Class H 125 psi (DC)
72228RN4UV00N0D300C2 24 VDC 316 Stainless FKM 7/16 22 Watt (DC) DIN Form A, Class H 125 psi (DC)
72228RN4UV00N0H322C1 12 VDC 316 Stainless FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (DC)
72228RN4UV00N0H322C2 24 VDC 316 Stainless FKM 7/16 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (DC)
72228RN4UV00N0H322P3 110/50-120/60 316 Stainless FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (AC)
72228RN4UV00N0H322Q3 220/50-240/60 316 Stainless FKM 7/16 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 125 psi (AC)
73228BN4UN00N0C111C1 12 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (DC)
73228BN4UN00N0C111C2 24 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (DC)
73228BN4UN00N0C111P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (AC)
73228BN4UN00N0C111Q3 220/50-240/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 150 psi (AC)
73228BN4UN00N0C222C1 12 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 150 psi (DC)
73228BN4UN00N0C222C2 24 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 150 psi (DC)
73228BN4UN00N0C222P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 150 psi (AC)
73228BN4UN00N0C222Q3 220/50-240/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 150 psi (AC)
73228BN4UN00N0D100C1 12 VDC Brass NBR 7/16 10 Watt (DC) DIN Form A, Class F 150 psi (DC)
73228BN4UN00N0D100C2 24 VDC Brass NBR 7/16 10 Watt (DC) DIN Form A, Class F 150 psi (DC)
73228BN4UN00N0D100P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) DIN Form A, Class F 150 psi (AC)
73228BN4UN00N0D100Q3 220/50-240/60 Brass NBR 7/16 10 Watt (AC) DIN Form A, Class F 150 psi (AC)
73228BN4UN00N0D200C1 12 VDC Brass NBR 7/16 10 Watt (DC) DIN Form A, Class H 150 psi (DC)
73228BN4UN00N0D200P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) DIN Form A, Class H 150 psi (AC)
73228BN4UN00N0H111C1 12 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 150 psi (DC)
73228BN4UN00N0H111C2 24 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 150 psi (DC)
73228BN4UN00N0H111P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 150 psi (AC)
73228BN4UN00N0H111Q3 220/50-240/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 150 psi (AC)
73228BN4UN00N0H222C2 24 VDC Brass NBR 7/16 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 150 psi (DC)
73228BN4UN00N0H222P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 150 psi (AC)
73228BN4UN00N0H222Q3 220/50-240/60 Brass NBR 7/16 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 150 psi (AC)
73228BN4UN00N0T100P3 110/50-120/60 Brass NBR 7/16 10 Watt (AC) 1/4 " Tab Terminal, Class F 150 psi (AC)
