Parker派克电磁阀
Parker Skinner Solenoid Valves

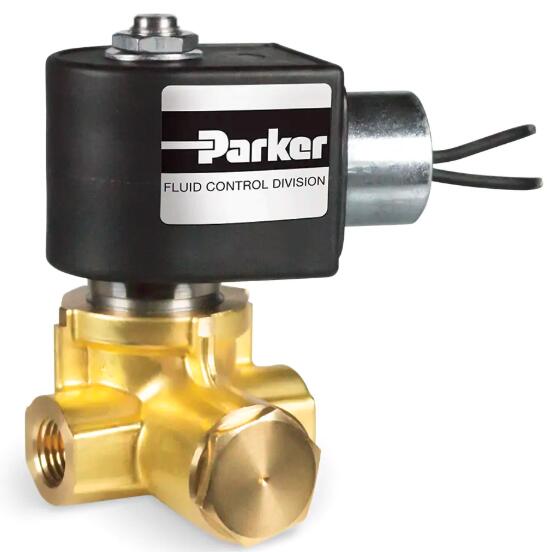

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.





Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves



Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment



Technical Specifications

Product Series: 7000 and Gold Ring Series
Valve Type: 2-Way
Function: Normally Open
Port Size: 1/4 inch
Input Voltage: Up to 240/60 (AC) or 24 (VDC)
Body Material: Brass
Seal Material: NBR, EPDM or PCTFE
Orifice 1 Size: 3/32 to 7/16 inch
Flow Coefficient 1: 0.17 to 0.96 Cv
Power Consumption: 10 to 11 Watts (AC) or 10 Watts (DC) W
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H and 1/4 " Tab Terminal, Class F
Maximum Pressure Differential: 30 to 300 (AC) or 175 to 200 (DC) psi
Number of Ports: 2
Actuation Type: Manual/Mech. Operated, Direct Acting
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: NEMA 4X or NEMA 7, 9, Class F or Class H



Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves型号

Part
Voltage (V) Seal Material Orifice 1 Size (inch) Flow Factor 1 (Cv) Power (Watts) Coil Type Maximum Pressure Differential (psi)
04F20O1106ACF4C01 24/60 NBR 3/32 0.17 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 300 psi (AC)
04F20O1106ACF4C05 110/50-120/60 NBR 3/32 0.17 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 300 psi (AC)
04F20O1106ACF4C15 220/50-240/60 NBR 3/32 0.17 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 300 psi (AC)
04F20O1106ACFPH01 24/60 NBR 3/32 0.17 11 Watt (AC) DIN Form A, Class F 300 psi (AC)
04F20O1106ACFPH05 110/50-120/60 NBR 3/32 0.17 11 Watt (AC) DIN Form A, Class F 300 psi (AC)
04F20O1106ACFPH15 220/50-240/60 NBR 3/32 0.17 11 Watt (AC) DIN Form A, Class F 300 psi (AC)
04F20O1108ACF4C01 24/60 NBR 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1108ACF4C05 110/50-120/60 NBR 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1108ACF4C15 220/50-240/60 NBR 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1108ACFPH01 24/60 NBR 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O1108ACFPH05 110/50-120/60 NBR 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O1108ACFPH15 220/50-240/60 NBR 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O1308ACF4C01 24/60 E7736 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1308ACF4C05 110/50-120/60 E7736 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1308ACF4C15 220/50-240/60 E7736 1/8 0.35 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 130 psi (AC)
04F20O1308ACFPH01 24/60 E7736 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O1308ACFPH05 110/50-120/60 E7736 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O1308ACFPH15 220/50-240/60 E7736 1/8 0.35 11 Watt (AC) DIN Form A, Class F 130 psi (AC)
04F20O2118ACF4C01 24/60 NBR 9/32 0.96 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 30 psi (AC)
04F20O2118ACF4C05 110/50-120/60 NBR 9/32 0.96 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 30 psi (AC)
04F20O2118ACF4C15 220/50-240/60 NBR 9/32 0.96 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 30 psi (AC)
04F20O2118ACFPH01 24/60 NBR 9/32 0.96 11 Watt (AC) DIN Form A, Class F 30 psi (AC)
04F20O2118ACFPH05 110/50-120/60 NBR 9/32 0.96 11 Watt (AC) DIN Form A, Class F 30 psi (AC)
04F20O2118ACFPH15 220/50-240/60 NBR 9/32 0.96 11 Watt (AC) DIN Form A, Class F 30 psi (AC)
7122KBN2LF00N0C111C1 12 VDC PCTFE 3/32 0.21 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 175 psi (DC)
7122KBN2LF00N0C111C2 24 VDC PCTFE 3/32 0.21 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 175 psi (DC)
7122KBN2LF00N0C111P3 110/50-120/60 PCTFE 3/32 0.21 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 175 psi (AC)
7122KBN2LF00N0C222C1 12 VDC PCTFE 3/32 0.21 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 175 psi (DC)
7122KBN2LF00N0C222C2 24 VDC PCTFE 3/32 0.21 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 175 psi (DC)
7122KBN2LF00N0D100C2 24 VDC PCTFE 3/32 0.21 10 Watt (DC) DIN Form A, Class F 175 psi (DC)
7122KBN2LF00N0H111C2 24 VDC PCTFE 3/32 0.21 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 175 psi (DC)
7122KBN2LF00N0H111P3 110/50-120/60 PCTFE 3/32 0.21 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 175 psi (AC)
73222BN2MN00N0C111C1 12 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC)
73222BN2MN00N0C111C2 24 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC)
73222BN2MN00N0C111P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC)
73222BN2MN00N0C111Q3 220/50-240/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC)
73222BN2MN00N0C222C1 12 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC)
73222BN2MN00N0C222C2 24 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC)
73222BN2MN00N0C222P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC)
73222BN2MN00N0C222Q3 220/50-240/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC)
73222BN2MN00N0D100C1 12 VDC NBR 7/16 0.76 10 Watt (DC) DIN Form A, Class F 200 psi (DC)
73222BN2MN00N0D100C2 24 VDC NBR 7/16 0.76 10 Watt (DC) DIN Form A, Class F 200 psi (DC)
73222BN2MN00N0D100P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) DIN Form A, Class F 200 psi (AC)
73222BN2MN00N0D100Q3 220/50-240/60 NBR 7/16 0.76 10 Watt (AC) DIN Form A, Class F 200 psi (AC)
73222BN2MN00N0D200C1 12 VDC NBR 7/16 0.76 10 Watt (DC) DIN Form A, Class H 200 psi (DC)
73222BN2MN00N0D200P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) DIN Form A, Class H 200 psi (AC)
73222BN2MN00N0H111C1 12 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC)
73222BN2MN00N0H111C2 24 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC)
73222BN2MN00N0H111P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC)
73222BN2MN00N0H111Q3 220/50-240/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC)
73222BN2MN00N0H222C2 24 VDC NBR 7/16 0.76 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (DC)
73222BN2MN00N0H222P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC)
73222BN2MN00N0H222Q3 220/50-240/60 NBR 7/16 0.76 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC)
73222BN2MN00N0T100P3 110/50-120/60 NBR 7/16 0.76 10 Watt (AC) 1/4 " Tab Terminal, Class F 200 psi (AC)
