Parker派克电磁阀
Parker Solenoid Valves

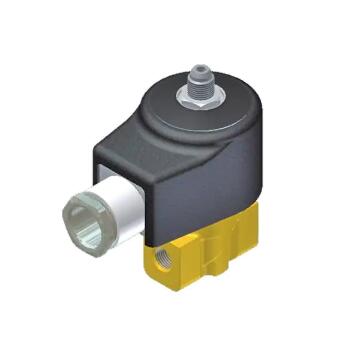

Parker 2-Way Normally Open, 1/8" General Purpose Solenoid Valves

Parkers' 2-Way Normally Open G 1/8" Solenoid Valves provide operating pressures up to 30 bar and flow factors up to 0.24 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.





Parkers' 2-Way Normally Open G 1/8" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .

Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas

Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities

Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation





Technical Specifications

Product Series: General Purpose Solenoid Valves
Valve Type: 2-Way
Function: Normally Open
Port Size: 1/8 inch
Input Voltage: 230VAC/50Hz or 24VDC
Body Material: Brass
Seal Material: Ruby
Orifice 1 Size: 2.5 to 3 mm
Flow Coefficient 1: 0.21 to 0.24 m3/hour, 3.5 to 4 L/min
Power Consumption: 14 to 19 W
Coil Type: DIN and Screw, 40 mm
Maximum Pressure Differential: 30 bar
Minimum Pressure Differential: 0 bar
Number of Ports: 2
Actuation Type: Direct Operated
Media: General Purpose for Air, Liquids, Gases and Oil
Port Type: BSP
Orifice 2 Size: n/a
Flow Coefficient 2: n/a, n/a
Minimum Fluid Temperature: n/a
Maximum Fluid Temperature: n/a
Coil Specifications Met: IP44, IP65, IP67



Parker 2-Way Normally Open, 1/8" General Purpose Solenoid Valves型号

Part Voltage (V) Orifice 1 Size (mm) Flow Factor 1 (l/min) Power (Watts) Coil Type
122K9321-8520.23-483824T1 230-240VAC/50-60Hz 2.5 3.5 19 Coil with screw terminal, high temperature-high power, 40 mm
122K9363-4270-481044F4 230VAC/50Hz 2.5 3.5 14 Coil with screw terminal High power, 40 mm
122K9363-4270-486265C2 24VDC 2.5 3.5 14 Coil with screw terminal,high temperature-high power, 40 mm
122K9363-4270-486265F4 230VAC/50Hz 2.5 3.5 14 Coil with screw terminal,high temperature-high power, 40 mm
PM120.4IR ZB14 230/50-60 230VAC/50-60Hz 3 4 14 Coil for DIN plug connection, high power - high temperature series
PM120.4IR ZH14 230/50-60 230VAC/50-60Hz 3 4 14 Coil for DIN plug connection, high power - high temperature series
