Parker派克电磁阀
Parker Skinner Solenoid Valves

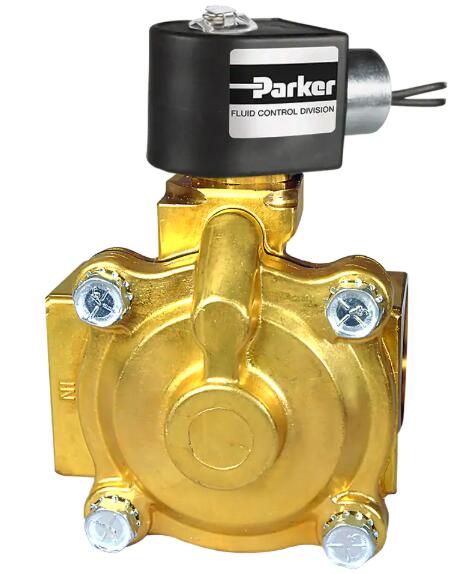

Parker 2-Way Normally Open, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1" NPT Solenoid Valves provide operating pressures of 125 PSI and flow factors of 13 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.





Parker's 2-Way Normally Open 1" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Parker 2-Way Normally Open, 1 " NPT General Purpose Solenoid Valves



Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment



Technical Specifications

Product Series: Gold Ring Series
Valve Type: 2-Way
Function: Normally Open
Port Size: 1 inch
Input Voltage: Up to 240/60 (AC)
Body Material: Brass
Seal Material: NBR
Orifice 1 Size: 1 inch
Flow Coefficient 1: 13 Cv
Power Consumption: 11 Watts (AC) W
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X or DIN Form A, Class F
Maximum Pressure Differential: 125 psi (AC) psi
Number of Ports: 2
Actuation Type: Offset Diaphragm, Piloted
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 5 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 180 °F
Coil Specifications Met: Class F



Parker 2-Way Normally Open, 1" NPT General Purpose Solenoid Valves型号

Part Voltage (V) Coil Type
16F24O2164ACF4C01 24/60 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
16F24O2164ACF4C05 110/50-120/60 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
16F24O2164ACF4C15 220/50-240/60 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
16F24O2164ACFPH01 24/60 DIN Form A, Class F
16F24O2164ACFPH05 110/50-120/60 DIN Form A, Class F
16F24O2164ACFPH15 220/50-240/60 DIN Form A, Class F
