Parker Skinner Solenoid Valves

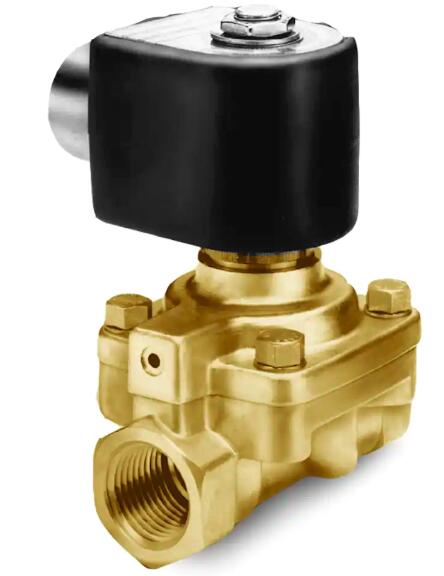

Parker 2-Way Normally Open, 2" NPT General Purpose Solenoid Valves
Parker 2-Way Normally Open, 2" NPT Solenoid Valves provide operating pressures of 170 PSI and flow factors of 38.6 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Parker's 2-Way Normally Open 2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Parker 2-Way Normally Open, 2" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment
Technical Specifications
| Product Series: |
7000 Series |
| Valve Type: |
2-Way |
| Function: |
Normally Open |
| Port Size: |
2 inch |
| Input Voltage: |
Up to 240/60 (AC) or 24 (VDC) |
| Body Material: |
Brass |
| Seal Material: |
NBR |
| Orifice 1 Size: |
1-9/16 inch |
| Flow Coefficient 1: |
38.6 Cv |
| Power Consumption: |
10 Watts (AC or DC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H and 1/4 " Tab Terminal, Class F |
| Maximum Pressure Differential: |
170 psi (AC or DC) psi |
| Number of Ports: |
2 |
| Actuation Type: |
Pilot |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
5 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
185 °F |
| Coil Specifications Met: |
NEMA 4X or NEMA 7, 9 |
Parker 2-Way Normally Open, 2" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Power (Watts) |
Coil Type |
Maximum Pressure Differential (psi) |
| 7322GBN99N00N0C111C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
170 psi (DC) |
| 7322GBN99N00N0C111C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
170 psi (DC) |
| 7322GBN99N00N0C111P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
170 psi (AC) |
| 7322GBN99N00N0C111Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
170 psi (AC) |
| 7322GBN99N00N0C222C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
170 psi (DC) |
| 7322GBN99N00N0C222C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
170 psi (DC) |
| 7322GBN99N00N0C222P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
170 psi (AC) |
| 7322GBN99N00N0C222Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
170 psi (AC) |
| 7322GBN99N00N0D100C1 |
12 VDC |
10 Watt (DC) |
DIN Form A, Class F |
170 psi (DC) |
| 7322GBN99N00N0D100C2 |
24 VDC |
10 Watt (DC) |
DIN Form A, Class F |
170 psi (DC) |
| 7322GBN99N00N0D100P3 |
110/50-120/60 |
10 Watt (AC) |
DIN Form A, Class F |
170 psi (AC) |
| 7322GBN99N00N0D100Q3 |
220/50-240/60 |
10 Watt (AC) |
DIN Form A, Class F |
170 psi (AC) |
| 7322GBN99N00N0D200C1 |
12 VDC |
10 Watt (DC) |
DIN Form A, Class H |
170 psi (DC) |
| 7322GBN99N00N0D200P3 |
110/50-120/60 |
10 Watt (AC) |
DIN Form A, Class H |
170 psi (AC) |
| 7322GBN99N00N0H111C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
170 psi (DC) |
| 7322GBN99N00N0H111C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
170 psi (DC) |
| 7322GBN99N00N0H111P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
170 psi (AC) |
| 7322GBN99N00N0H111Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
170 psi (AC) |
| 7322GBN99N00N0H222C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
170 psi (DC) |
| 7322GBN99N00N0H222P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
170 psi (AC) |
| 7322GBN99N00N0H222Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
170 psi (AC) |
| 7322GBN99N00N0T100P3 |
110/50-120/60 |
10 Watt (AC) |
1/4 " Tab Terminal, Class F |
170 psi (AC) |
|
