Parker Solenoid Valves

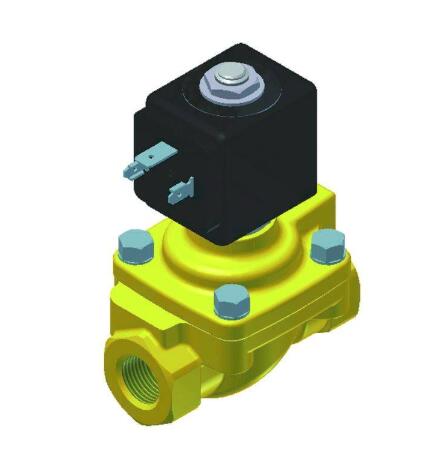

Parker 2-Way Normally Open, 3/8" General Purpose Solenoid Valves
Parkers' 2-Way Normally Open G 3/8" Solenoid Valves provide operating pressures up to 40 bar and flow factors up to 3 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 2-Way Controlled by Electric Impulse G 3/8" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas
Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
2-Way |
| Function: |
Normally Open |
| Port Size: |
3/8 inch |
| Input Voltage: |
220-230VAC/50Hz |
| Body Material: |
Brass |
| Seal Material: |
FKM, NBR |
| Orifice 1 Size: |
11 to 13 mm |
| Flow Coefficient 1: |
2.7 to 3 m3/hour, 45 to 50 L/min |
| Power Consumption: |
8 to 14 W |
| Coil Type: |
DIN, Screw Terminal, Explosion Proof, Flame Proof, 32 to 40 mm |
| Maximum Pressure Differential: |
12 to 40 bar |
| Minimum Pressure Differential: |
0.1 to 0.3 bar |
| Number of Ports: |
2 |
| Actuation Type: |
Pilot Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
BSP |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a, n/a |
| Minimum Fluid Temperature: |
-10 °C |
| Maximum Fluid Temperature: |
90 °C |
| Coil Specifications Met: |
IP44, IP65, IP67 |
Parker 2-Way Normally Open, 3/8" General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Seal Material |
Orifice 1 Size (mm) |
Flow Factor 1 (l/min) |
Power (Watts) |
Coil Type |
| 322H73-2995-4818653D |
220-230VAC/50Hz |
NBR |
11 |
50 |
8 |
Coil for DIN plug connection, 32 mm |
| 322H73-2995-481865C2 |
24VDC |
NBR |
11 |
50 |
9 |
Coil for DIN plug connection, 32 mm |
| 322H73-4270-4810003D |
220-230VAC/50Hz |
NBR |
11 |
50 |
8 |
Coil with screw terminal, 40 mm |
| 322H73-4270-481000C2 |
24VDC |
NBR |
11 |
50 |
8 |
Coil with screw terminal, 40 mm |
| 322H73-4270-486265C2 |
24VDC |
NBR |
11 |
50 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
| 322H73-4270-486265F4 |
230VAC/50Hz |
NBR |
11 |
50 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
| 322H7306-2995-4818653D |
220-230VAC/50Hz |
FKM |
11 |
50 |
8 |
Coil for DIN plug connection, 32 mm |
| 322H7306-2995-481865C2 |
24VDC |
FKM |
11 |
50 |
9 |
Coil for DIN plug connection, 32 mm |
| 322H7306-4270-4810003D |
220-230VAC/50Hz |
FKM |
11 |
50 |
8 |
Coil with screw terminal, 40 mm |
| 322H7306-4270-481000C2 |
24VDC |
FKM |
11 |
50 |
8 |
Coil with screw terminal, 40 mm |
| 322H7306-4270-486265C2 |
24VDC |
FKM |
11 |
50 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
| 322H7306-4270-486265F4 |
230VAC/50Hz |
FKM |
11 |
50 |
14 |
Coil with screw terminal,high temperature-high power, 40 mm |
| 322K4306-2995-4818653D |
220-230VAC/50Hz |
FKM |
12 |
45 |
8 |
Coil for DIN plug connection, 32 mm |
| 322K4306-2995-481865C2 |
24VDC |
FKM |
12 |
45 |
9 |
Coil for DIN plug connection, 32 mm |
| 322K4306-4270-4810003D |
220-230VAC/50Hz |
FKM |
12 |
45 |
8 |
Coil with screw terminal, 40 mm |
| 322K4306-4270-481000C2 |
24VDC |
FKM |
12 |
45 |
8 |
Coil with screw terminal, 40 mm |
| 550056DIS |
24VDC |
NBR |
13 |
50 |
9 |
Coil for DIN plug connection, 32 mm |
| 550057DIS |
220-230VAC/50Hz |
NBR |
13 |
50 |
8 |
Coil for DIN plug connection, 32 mm |
| 550151DIS |
24VDC |
NBR |
13 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
| 550152DIS |
230VAC/50Hz |
NBR |
13 |
50 |
8 |
Flame proof encapsulated electrical part "db mb", 37 mm |
| 550191DIS |
24VDC |
NBR |
13 |
50 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
| 550192DIS |
220-230VAC/50Hz |
NBR |
13 |
50 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
|
