Parker派克电磁阀
Parker Solenoid Valves

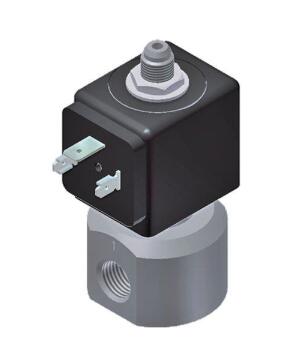

Parker 3-Way Electric Impulse, 1/4" General Purpose Solenoid Valves
Parkers' 3-Way Electric Impulse controlled G 1/4" Solenoid Valves provide operating pressures up to 16 bar and flow factors up to 0.21 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 3-Way Controlled by Electric Impulse G 1/4" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas
Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
3-Way |
| Function: |
Latching (Electric Impulse) |
| Port Size: |
1/4 inch |
| Input Voltage: |
220-230VAC/50Hz or 24VDC |
| Body Material: |
Brass or 303 Stainless st. |
| Seal Material: |
Ruby or FKM |
| Orifice 1 Size: |
1.5 to 2.5 mm |
| Flow Coefficient 1: |
0.09 to 0.21 m3/hour, 1.5 to 3.5 L/min |
| Power Consumption: |
8 to 13 W |
| Coil Type: |
Screw terminal and Explosion Proof, from 32 to 40 mm |
| Maximum Pressure Differential: |
4 to 16 bar |
| Minimum Pressure Differential: |
0 bar |
| Number of Ports: |
3 |
| Actuation Type: |
Direct Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
BSP |
| Orifice 2 Size: |
1.5 to 2.5 mm |
| Flow Coefficient 2: |
0.09 to 0.21 m3/hour, 1.5 to 3.5 L/min |
| Minimum Fluid Temperature: |
n/a |
| Maximum Fluid Temperature: |
n/a |
| Coil Specifications Met: |
IP44 or IP65 |
Parker 3-Way Electric Impulse, 1/4" General Purpose Solenoid Valves规格
| Part |
Voltage (V) |
Body Material |
Seal Material |
Orifice 1 Size (mm) |
Flow Factor 1 (l/min) |
Power (Watts) |
Coil Type |
| 133V5463-2995-4958703D |
220-230VAC/50Hz |
303 Stainless St. |
Ruby |
1.5 |
1.5 |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
| 133V5463-2995-495870C2 |
24VDC |
303 Stainless St. |
Ruby |
1.5 |
1.5 |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
| 135K03-4269-485400C2 |
24VDC |
Brass |
FKM |
2.5 |
3.5 |
13 |
Coil with screw terminal,bistable,for impulse applications, 40 mm |
| 135K04-4269-485400C2 |
24VDC |
Brass |
FKM |
1.5 |
1.5 |
13 |
Coil with screw terminal,bistable,for impulse applications, 40 mm |
|
