Parker Skinner Solenoid Valves

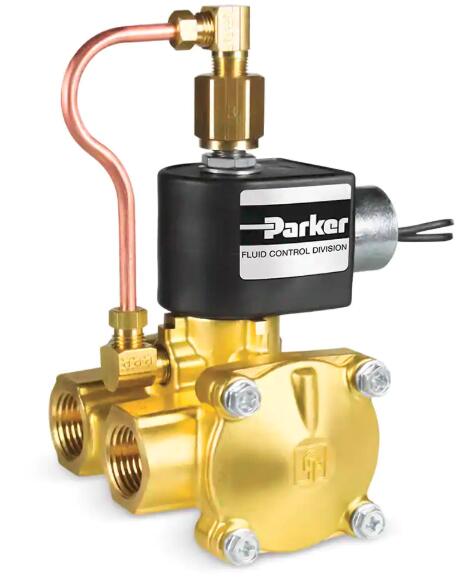

Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves
Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Parker's 3-Way Normally Closed, Direct Acting 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Single acting spring return cylinder control
- Selection or diversion of process media
- HVAC damper control
- Instrumentation Equipment
- Pneumatic positioning
- Automatic dispensing equipment
- Gas sampling
- Small compressors
- Water treatment
- Air dryers
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Textile and Dry Cleaning Equipment
- Irrigation Equipment
Technical Specifications
| Product Series: |
7000 Series |
| Valve Type: |
3-Way |
| Function: |
Normally Closed |
| Port Size: |
1/2 inch |
| Input Voltage: |
110/50-120/60 to 220/50-240/60 (AC) or 12 to 24 (VDC) |
| Body Material: |
Brass |
| Seal Material: |
NBR |
| Main Orifice Size: |
1/4 or 1/2 inch |
| Main Flow Coefficient: |
3.6 or 4 Cv |
| Power Consumption: |
10 Watt (AC) or (DC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H and 1/4 " Tab Terminal, Class F |
| Maximum Pressure Differential: |
150 psi or 180 psi (AC or DC) psi |
| Additional Options: |
Exhaust Return Pipe, Manual Override w/Exhaust Return Pipe or No Oprion |
| Number of Ports: |
3 |
| Actuation Type: |
Manual/Mech. Operated |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Exhaust Orifice Size: |
n/a |
| Exhaust Flow Coefficient: |
n/a |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
10 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
185 °F |
| Coil Specifications Met: |
NEMA 4X, 7 or 9 or Class F or H |
Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Orifice Main (inch) |
Flow Factor Main (Cv) |
Power (Watts) |
Coil Type |
Maximum Pressure Differential (psi) |
Mechanical Option |
| 73312BN4UNJ0N0C111C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C111C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C111P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C111Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C222C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C222C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C222P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0C222Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D100C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class F |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D100C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class F |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D100P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class F |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D100Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class F |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D200C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class H |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0D200P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class H |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H111C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H111C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H111P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H111Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H222C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (DC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H222P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0H222Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNJ0N0T100P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/4 " Tab Terminal, Class F |
180 psi (AC) |
Exhaust Return Pipe |
| 73312BN4UNMJN0C111C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C111C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C111P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C111Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C222C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C222C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C222P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0C222Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D100C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class F |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D100C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class F |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D100P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class F |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D100Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class F |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D200C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
DIN Form A, Class H |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0D200P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
DIN Form A, Class H |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H111C1 |
12 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H111C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H111P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H111Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H222C2 |
24 VDC |
1/2 |
3.6 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (DC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H222P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0H222Q3 |
220/50-240/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73312BN4UNMJN0T100P3 |
110/50-120/60 |
1/2 |
3.6 |
10 Watt (AC) |
1/4 " Tab Terminal, Class F |
180 psi (AC) |
Manual Override w/Exhaust Return Pipe |
| 73317BN4UN00N0C111C1 |
12 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (DC) |
No Option |
| 73317BN4UN00N0C111C2 |
24 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (DC) |
No Option |
| 73317BN4UN00N0C111P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (AC) |
No Option |
| 73317BN4UN00N0C111Q3 |
220/50-240/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (AC) |
No Option |
| 73317BN4UN00N0C222C1 |
12 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (DC) |
No Option |
| 73317BN4UN00N0C222C2 |
24 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (DC) |
No Option |
| 73317BN4UN00N0C222P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (AC) |
No Option |
| 73317BN4UN00N0C222Q3 |
220/50-240/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (AC) |
No Option |
| 73317BN4UN00N0D100C1 |
12 VDC |
1/4 |
4 |
10 Watt (DC) |
DIN Form A, Class F |
150 psi (DC) |
No Option |
| 73317BN4UN00N0D100C2 |
24 VDC |
1/4 |
4 |
10 Watt (DC) |
DIN Form A, Class F |
150 psi (DC) |
No Option |
| 73317BN4UN00N0D100P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
DIN Form A, Class F |
150 psi (AC) |
No Option |
| 73317BN4UN00N0D100Q3 |
220/50-240/60 |
1/4 |
4 |
10 Watt (AC) |
DIN Form A, Class F |
150 psi (AC) |
No Option |
| 73317BN4UN00N0D200C1 |
12 VDC |
1/4 |
4 |
10 Watt (DC) |
DIN Form A, Class H |
150 psi (DC) |
No Option |
| 73317BN4UN00N0D200P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
DIN Form A, Class H |
150 psi (AC) |
No Option |
| 73317BN4UN00N0H111C1 |
12 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (DC) |
No Option |
| 73317BN4UN00N0H111C2 |
24 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (DC) |
No Option |
| 73317BN4UN00N0H111P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (AC) |
No Option |
| 73317BN4UN00N0H111Q3 |
220/50-240/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (AC) |
No Option |
| 73317BN4UN00N0H222C2 |
24 VDC |
1/4 |
4 |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (DC) |
No Option |
| 73317BN4UN00N0H222P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (AC) |
No Option |
| 73317BN4UN00N0H222Q3 |
220/50-240/60 |
1/4 |
4 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (AC) |
No Option |
| 73317BN4UN00N0T100P3 |
110/50-120/60 |
1/4 |
4 |
10 Watt (AC) |
1/4 " Tab Terminal, Class F |
150 psi (AC) |
No Option |
|
