Parker Skinner Solenoid Valves

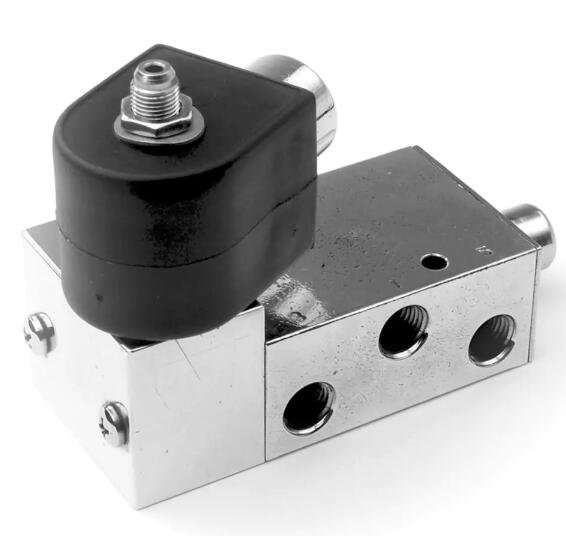

Parker 4-Way, 1/4" 2 Position, Single Operator, NPT General Purpose Solenoid Valves
Parker 4-Way 1/4" 2 Position, Single Operator, Valves provide operating pressures of 150 PSI and flow factors of 1.2 CV's. They offer a brass body, multiple mounting positions and various coil options for all general purpose flow control applications.
Parker's 4-Way, 2 Position, Single Operator, 1/4" NPT Solenoid Valves are used in applications for actuation of double acting cylinders and piloting of larger control valves. Ideally suited for general purpose air, liquids and gases, these valves are available in brass construction with NBR seals.
Parker 4-Way, 1/4" 2 Position, Single Operator, NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Pilot valve actuation of control valves
- Oil and gas including off-shore
- Double acting cylinder control
- Air vises and Air motors
- Damper control
Technical Specifications
| Product Series: |
7000 Series |
| Valve Type: |
4-Way |
| Function: |
2 Position, Single Operator |
| Port Size: |
1/4 inch |
| Input Voltage: |
110/50-120/60 to 220/50-240/60 (AC) or 12 to 24 (VDC) |
| Body Material: |
Brass |
| Seal Material: |
NBR |
| Orifice 1 Size: |
1/4 inch |
| Flow Coefficient 1: |
1.2 Cv |
| Power Consumption: |
10 Watt (AC) or (DC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 4X, 7 or 9, DIN Form A, Class F or H or 1/4 " Tab Terminal, Class F |
| Maximum Pressure Differential: |
150 psi (AC or DC) psi |
| Additional Options: |
No Option |
| Number of Ports: |
4 or 5 |
| Actuation Type: |
Manual/Mech. Operated |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Main Orifice Size: |
n/a |
| Exhaust Orifice Size: |
n/a |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
30 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
167 °F |
| Coil Specifications Met: |
NEMA 4X or NEMA 7, 9 and Class F or Class H |
Parker 4-Way, 1/4" 2 Position, Single Operator, NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Power (Watts) |
Coil Type |
Maximum Pressure Differential (psi) |
| 73417BN2PN00N0C111C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (DC) |
| 73417BN2PN00N0C111C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (DC) |
| 73417BN2PN00N0C111P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (AC) |
| 73417BN2PN00N0C111Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
150 psi (AC) |
| 73417BN2PN00N0C222C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (DC) |
| 73417BN2PN00N0C222C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (DC) |
| 73417BN2PN00N0C222P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (AC) |
| 73417BN2PN00N0C222Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X |
150 psi (AC) |
| 73417BN2PN00N0D100C1 |
12 VDC |
10 Watt (DC) |
DIN Form A, Class F |
150 psi (DC) |
| 73417BN2PN00N0D100C2 |
24 VDC |
10 Watt (DC) |
DIN Form A, Class F |
150 psi (DC) |
| 73417BN2PN00N0D100P3 |
110/50-120/60 |
10 Watt (AC) |
DIN Form A, Class F |
150 psi (AC) |
| 73417BN2PN00N0D100Q3 |
220/50-240/60 |
10 Watt (AC) |
DIN Form A, Class F |
150 psi (AC) |
| 73417BN2PN00N0D200C1 |
12 VDC |
10 Watt (DC) |
DIN Form A, Class H |
150 psi (DC) |
| 73417BN2PN00N0D200P3 |
110/50-120/60 |
10 Watt (AC) |
DIN Form A, Class H |
150 psi (AC) |
| 73417BN2PN00N0H111C1 |
12 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (DC) |
| 73417BN2PN00N0H111C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (DC) |
| 73417BN2PN00N0H111P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (AC) |
| 73417BN2PN00N0H111Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
150 psi (AC) |
| 73417BN2PN00N0H222C2 |
24 VDC |
10 Watt (DC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (DC) |
| 73417BN2PN00N0H222P3 |
110/50-120/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (AC) |
| 73417BN2PN00N0H222Q3 |
220/50-240/60 |
10 Watt (AC) |
1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 |
150 psi (AC) |
| 73417BN2PN00N0T100P3 |
110/50-120/60 |
10 Watt (AC) |
1/4 " Tab Terminal, Class F |
150 psi (AC) |
|
