Parker派克电磁阀
Parker Solenoid Valves

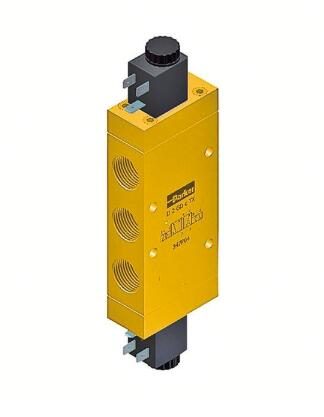

Parker 5-Way Dual Solenoids, 1/2" General Purpose Solenoid Valves

Parkers' 5-Way Dual Solenoids G 1/2" Solenoid Valves provide operating pressures up to 10 bar and flow factors up to 45 l/min. They offer multiple body and sealing materials for all general purpose fluid control applications.





Parkers' 5-Way Dual Solenoids G 1/2" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .



Parker 5-Way Dual Solenoids, 1/2" General Purpose Solenoid Valves



Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas

Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities


Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation



Technical Specifications

Product Series: General Purpose Solenoid Valves
Valve Type: 5-Way
Function: Dual Solenoid
Port Size: 1/2 inch
Input Voltage: 220-230VAC/50-60Hz or 24VDC
Body Material: Anodized Aluminium
Seal Material: NBR
Orifice 1 Size: 12 mm
Flow Coefficient 1: n/a, 45 L/min
Power Consumption: 3 to 9 W
Coil Type: DIN, Screw, Explosion Proof and Flame Proof, from 22 to 37 mm
Maximum Pressure Differential: 10 bar
Minimum Pressure Differential: 2.5 bar
Number of Ports: 5
Actuation Type: Pilot Operated
Media: General Purpose for Air, Liquids, Gases and Oil
Port Type: BSP
Orifice 2 Size: n/a
Flow Coefficient 2: n/a, n/a
Minimum Fluid Temperature: -20 °C
Maximum Fluid Temperature: 50 °C
Coil Specifications Met: IP65 or IP67



Parker 5-Way Dual Solenoids, 1/2" General Purpose Solenoid Valves规格

Part Voltage (V) Power (Watts) Coil Type
347P04-496131C2 24VDC 3 Coil for DIN plug connection, double frequency, 22 mm
347P04-496131P9 230VAC/50-60Hz 3 Coil for DIN plug connection, double frequency, 22 mm
347P04-496482C2 24VDC 3 Coil for DIN plug connection, double frequency coil, 22 mm
347P04-496482P9 230VAC/50-60Hz 3 Coil for DIN plug connection, double frequency coil, 22 mm
347P04-496637C2 24VDC 3 Explosion proof electrical part "nAc nCc", double frequency, 22 mm
347P04-496637P9 230VAC/50-60Hz 3 Explosion proof electrical part "nAc nCc", double frequency, 22 mm
347P34-2995-4818653D 220-230VAC/50Hz 8 Coil for DIN plug connection, 32 mm
347P34-2995-481865C2 24VDC 9 Coil for DIN plug connection, 32 mm
347P34-2995-4958703D 220-230VAC/50Hz 8 Explosion proof electrical part "nAc nCc", 32 mm
347P34-2995-495870C2 24VDC 9 Explosion proof electrical part "nAc nCc", 32 mm
347P34-495905C2 24VDC 8 Flame proof encapsulated electrical part "db mb", 37 mm
347P34-495905F4 230VAC/50Hz 8 Flame proof encapsulated electrical part "db mb", 37 mm
