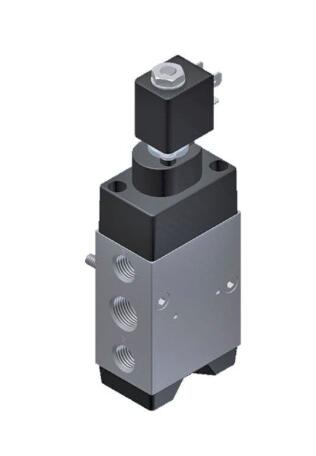

Parker 5-Way Spring Return, 3/8" General Purpose Solenoid Valves
Parkers' 5-Way Spring Return G 3/8" Solenoid Valves provide operating pressures up to 10 bar and flow factors up to 21 l/min. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 5-Way Spring Return G 3/8" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas
Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
5-Way |
| Function: |
Spring Return |
| Port Size: |
3/8 inch |
| Input Voltage: |
220-230VAC/50Hz or 24/28VDC |
| Body Material: |
316L Stainless St. |
| Seal Material: |
NBR |
| Orifice 1 Size: |
8 mm |
| Flow Coefficient 1: |
n/a, 21 L/min |
| Power Consumption: |
0.3 to 9 W |
| Coil Type: |
DIN, Screw and Explosion Proof, from 22 to 50 mm |
| Maximum Pressure Differential: |
10 bar |
| Minimum Pressure Differential: |
2 bar |
| Number of Ports: |
5 |
| Actuation Type: |
Pilot Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
NPT |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a, n/a |
| Minimum Fluid Temperature: |
n/a |
| Maximum Fluid Temperature: |
n/a |
| Coil Specifications Met: |
IP44, IP65, IP66, IP67 |
Parker 5-Way Spring Return, 3/8" General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Power (Watts) |
Coil Type |
| U341P0250-4826063D |
220-230VAC/50Hz |
2 |
Explosion proof encapsulated electrical part "mb", low power, 32 mm |
| U341P0250-482606C2 |
24VDC |
2.5 |
Explosion proof encapsulated electrical part "mb", low power, 32 mm |
| U341P0250-8993-4810453D |
220-230VAC/50Hz |
2 |
- |
| U341P0250-8993-481045C2 |
24VDC |
2.5 |
- |
| U341P3250-2995-4818653D |
220-230VAC/50Hz |
8 |
Coil for DIN plug connection, 32 mm |
| U341P3250-2995-481865C2 |
24VDC |
9 |
Coil for DIN plug connection, 32 mm |
| U341P3250-2995-4924533D |
220-230VAC/50Hz |
8 |
Coil for DIN plug connection, high temperature, 32 mm |
| U341P3250-2995-492453C2 |
24VDC |
9 |
Coil for DIN plug connection, high temperature, 32 mm |
| U341P3250-2995-4958703D |
220-230VAC/50Hz |
8 |
Explosion proof electrical part "nAc nCc", 32 mm |
| U341P3250-2995-495870C2 |
24VDC |
9 |
Explosion proof electrical part "nAc nCc", 32 mm |
| U341P3250-4270-4810003D |
220-230VAC/50Hz |
8 |
Coil with screw terminal, 40 mm |
| U341P3250-4270-481000C2 |
24VDC |
8 |
Coil with screw terminal, 40 mm |
| U341P3292-2995-483580.01N7 |
28VDC |
0.5 to 3 |
Explosion proof intrinsically safe electrical part "ia", 32 mm |
| U341P3295-492310C2 |
24VDC |
6 |
Explosion proof increased safety and encapsulated electrical part "eb", 50 mm |
| U341P3295-492310P9 |
230VAC/50-60Hz |
6 |
Explosion proof increased safety and encapsulated electrical part "eb", 50 mm |
| U341P3295-492965.01N7 |
28VDC |
0.3 to 3 |
Explosion proof intrinsically safe electrical part "ia", " Booster", 50 mm |
| U341P3295-496565N7 |
28VDC |
0.3 |
Explosion proof intrinsically safe electrical part "ia", " Booster", 37 mm |
| U341P3295-496895C2 |
24VDC |
8 |
Coil for DIN plug connection for oil and gas, 37 mm |
| U341P3295-496895P9 |
230VAC/50-60Hz |
8 |
Coil for DIN plug connection for oil and gas, 37 mm |
|
