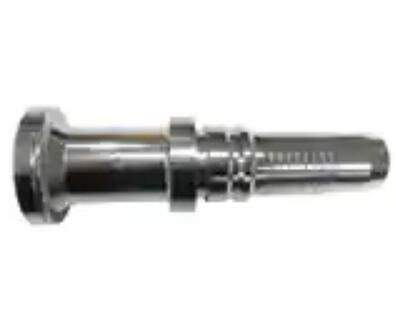

Parkrimp No-Skive Fittings 2piece - Series IF
Parker Medium Pressure Fittings - IF Series - are permanent two piece crimp style hydraulic fittings that allow a quick assembly with our family adjustable crimpers.
Parker's Parkrimp No-Skive two piece medium pressure fittings IF series are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of adjustable crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hydraulic hose failure caused by skiving too long or short. IF series fittings have chromium-6-free plating and are used with Parker suction and return line hoses such as hoses 811 & 811S.
Parkrimp No-Skive Fittings 2piece - Series IF
Markets:
Mobile
Features/Benefits:
- Matched hose und fitting system guarantees an approved and safe combination and the highest quality and safety combined with the longest service life of the final product to the end-users.
- No-Skive technology offers the easiest and most efficient and safe production process to the assemblers.
Applications:
- Construction Equipment
- Transportation
- Forestry and Agriculture
- Materials Handling
Technical Specifications
| Application: |
Hydraulic |
| Maximum Operating Temperature: |
various by part, various by part °F |
| Minimum Operating Temperature: |
various by part, various by part °F |
| Maximum Operating Pressure: |
various by part, various by part MPa, various by part bar |
| Banjo Port Diameter: |
na |
| Connection Type: |
Flange, shell |
| Port Size: |
various |
| Shape: |
various |
| Materials of Construction: |
steel |
| Connection Thread Size: |
na, na |
| Nominal Hose Inside Diameter: |
63 to 152 mm |
| Hose Inside Diameter: |
2 1/2 to 6 inch, 63.5 - 152.4 mm |
Parkrimp No-Skive Fittings 2piece - Series IF 型号
| Part |
Port Type |
Hose I.D. (size) |
Style |
Port Size |
Shape |
| 100IF-40 |
na |
-40 |
na |
na |
straight |
| 100IF-48 |
na |
-48 |
na |
na |
straight |
| 100IF-56 |
na |
-56 |
na |
na |
straight |
| 100IF-64 |
na |
-64 |
na |
na |
straight |
| 100IF-80 |
na |
-80 |
na |
na |
straight |
| 100IF-96 |
na |
-96 |
na |
na |
straight |
| K15IF-32-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 |
straight |
| K15IF-40-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 1/2 |
straight |
| K15IF-40-48 |
SFL |
-48 |
SAE Code 61 Flange Head |
2 1/2 |
straight |
| K15IF-48-48 |
SFL |
-48 |
SAE Code 61 Flange Head |
3 |
straight |
| K15IF-56-56 |
SFL |
-56 |
SAE Code 61 Flange Head |
3 1/2 |
straight |
| K15IF-64-64 |
SFL |
-64 |
SAE Code 61 Flange Head |
4 |
straight |
| K15IF-80-80 |
SFL |
-80 |
SAE Code 61 Flange Head |
5 |
straight |
| K15IF-80-96 |
SFL |
-96 |
SAE Code 61 Flange Head |
5 |
straight |
| K17IF-40-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 1/2 |
45° Elbow |
| K17IF-48-48 |
SFL |
-48 |
SAE Code 61 Flange Head |
3 |
45° Elbow |
| K17IF-56-56 |
SFL |
-56 |
SAE Code 61 Flange Head |
3 1/2 |
45° Elbow |
| K17IF-64-64 |
SFL |
-64 |
SAE Code 61 Flange Head |
4 |
45° Elbow |
| K17IF-80-80 |
SFL |
-80 |
SAE Code 61 Flange Head |
5 |
45° Elbow |
| K17IF-80-96 |
SFL |
-96 |
SAE Code 61 Flange Head |
5 |
45° Elbow |
| K19IF-32-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 |
90° Elbow |
| K19IF-40-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 1/2 |
90° Elbow |
| K19IF-48-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
3 |
90° Elbow |
| K19IF-48-48 |
SFL |
-48 |
SAE Code 61 Flange Head |
3 |
90° Elbow |
| K19IF-56-56 |
SFL |
-56 |
SAE Code 61 Flange Head |
3 1/2 |
90° Elbow |
| K19IF-64-64 |
SFL |
-64 |
SAE Code 61 Flange Head |
4 |
90° Elbow |
| K19IF-80-80 |
SFL |
-80 |
SAE Code 61 Flange Head |
5 |
90° Elbow |
| K19IF-80-96 |
SFL |
-96 |
SAE Code 61 Flange Head |
5 |
90° Elbow |
| K26IF-40-40 |
SFL |
-40 |
SAE Code 61 Flange Head |
2 1/2 |
30° Elbow |
|
