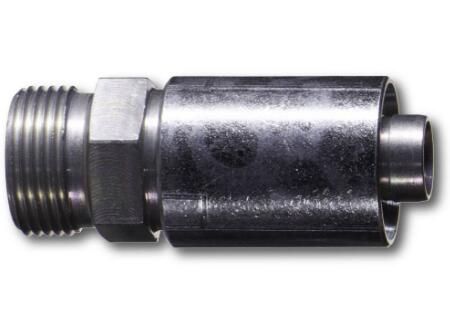

Crimped Thermoplastic Hydraulic Hose Fittings, PC Series
Parker PC Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for PTFE hose types 2030T-CON and 2030TB-CON.
Parker PC Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.
Markets:
- Transportation
- Mobile
- Industrial
- Food & Beverage
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Mobile hydraulics
- Chemical industry
- Media transfer
- Handling
- Industrial hydraulics
- Pneumatics
- Suitable for PTFE hose types 2030T-CON and 2030TB-CON with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
6, 8, 10, 12, 16, 20, 25, 5 mm |
| Hose I.D. (size): |
-4, -5, -6, -8, -10, -12, -16, -3 |
| Hose Inside Diameter: |
1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 3/16 inch |
| Connection Type: |
NPTF, UNF, NPSM, Metric, NA, BSP |
| Tube Outside Diameter: |
NA |
| Length: |
2,2, 2,3, 2,5, 2,4, 2,6, 2,8, 3, 3,1, 1,7, 1,8, 1,9, 2, 2,1, 2,9, 3,3, 3,9, 3,2, 3,8, 4,5, 4,4, 2,7, 3,4, 4,6, 4,7 inch |
| Maximum Operating Pressure: |
34,5, 27,5, 24, 21, 17, 41, 20, 63, 42, 25, 16, 10, 55, 43, 35, 28, 31,5, 42,5, 40, 31 MPa |
| Shape: |
Straight, 45° Elbow, 90° Elbow |
| Fitting Type: |
01, 03, 06, 07, 0C, 1C, 1D, 37, 39, 3B, 92, B1, B2, C3, C9, CA, CE, CF, D0, D2, D9, U0 |
| Materials of Construction: |
Galvanised steel |
Crimped Thermoplastic Hydraulic Hose Fittings, PC Series 型号
| Part |
Hose I.D. (mm) |
Style |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Length (mm) |
Tube O.D. (mm) |
| 101PC-16-12 |
19 |
National Pipe Tapered (NPT) male |
1 - 11 1/2 |
NA |
77 |
NA |
| 101PC-4-04 |
6.4 |
National Pipe Tapered (NPT) male |
1/4 - 18 |
NA |
55 |
NA |
| 101PC-6-04 |
6.4 |
National Pipe Tapered (NPT) male |
3/8 - 18 |
NA |
57 |
NA |
| 101PC-6-05 |
7.9 |
National Pipe Tapered (NPT) male |
3/8 - 18 |
NA |
57 |
NA |
| 101PC-6-06 |
9.5 |
National Pipe Tapered (NPT) male |
3/8 - 18 |
NA |
59 |
NA |
| 101PC-8-08 |
12.7 |
National Pipe Tapered (NPT) male |
1/2 - 14 |
NA |
66 |
NA |
| 103PC-6-05 |
7.9 |
SAE (JIC) 37° male |
9/16 - 18 |
NA |
57 |
NA |
| 103PC-8-06 |
9.5 |
SAE (JIC) 37° male |
3/4 - 16 |
NA |
62 |
NA |
| 106PC-10-08 |
12.7 |
SAE (JIC) 37° female swivel |
7/8 - 20 |
NA |
49 |
NA |
| 106PC-12-10 |
15.9 |
SAE (JIC) 37° female swivel |
1 1/16 - 12 |
NA |
50 |
NA |
| 106PC-16-12 |
19 |
SAE (JIC) 37° female swivel |
1 5/16 - 12 |
NA |
56 |
NA |
| 106PC-4-04 |
6.4 |
SAE (JIC) 37° female swivel |
7/16 - 20 |
NA |
43 |
NA |
| 106PC-5-04 |
6.4 |
SAE (JIC) 37° female swivel |
1/2 - 20 |
NA |
43 |
NA |
| 106PC-6-05 |
7.9 |
SAE (JIC) 37° female swivel |
9/16 - 18 |
NA |
45 |
NA |
| 106PC-6-06 |
9.5 |
SAE (JIC) 37° female swivel |
9/16 - 18 |
NA |
47 |
NA |
| 106PC-8-06 |
9.5 |
SAE (JIC) 37° female swivel |
3/4 - 16 |
NA |
48 |
NA |
| 107PC-4-04 |
6.4 |
NPSM female swivel |
1/4 - 18 |
NA |
47 |
NA |
| 107PC-6-06 |
9.5 |
NPSM female swivel |
3/8 - 18 |
NA |
50 |
NA |
| 10CPC-10-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
74 |
10 |
| 11CPC-10-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
59 |
10 |
| 11CPC-12-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
20x1.5 |
59 |
12 |
| 11CPC-16-08 |
12.7 |
Metric female swivel 24° with O-ring |
NA |
24x1.5 |
74 |
16 |
| 11CPC-6-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
14x1.5 |
59 |
6 |
| 11DPC-10-05 |
7.9 |
Metric standpipe |
NA |
NA |
59 |
10 |
| 11DPC-10-06 |
9.5 |
Metric standpipe |
NA |
NA |
79 |
10 |
| 11DPC-12-06 |
9.5 |
Metric standpipe |
NA |
NA |
79 |
12 |
| 11DPC-15-08 |
12.7 |
Metric standpipe |
NA |
NA |
65 |
15 |
| 11DPC-18-10 |
15.9 |
Metric standpipe |
NA |
NA |
66 |
18 |
| 11DPC-8-04 |
6.4 |
Metric standpipe |
NA |
NA |
58 |
8 |
| 139PC-12-10 |
15.9 |
SAE (JIC) 37° female swivel |
1 1/16 - 12 |
NA |
84 |
NA |
| 139PC-5-04 |
6.4 |
SAE (JIC) 37° female swivel |
1/2 - 20 |
NA |
59 |
NA |
| 139PC-6-05 |
7.9 |
SAE (JIC) 37° female swivel |
9/16 - 18 |
NA |
59 |
NA |
| 13BPC-12-10 |
15.9 |
BSP male 60° flare |
3/4 |
NA |
69 |
NA |
| 13BPC-12-12 |
19 |
BSP male 60° flare |
3/4 |
NA |
73 |
NA |
| 13BPC-16-12 |
19 |
BSP male 60° flare |
1 |
NA |
82 |
NA |
| 13BPC-16-16 |
25.4 |
BSP male 60° flare |
1 |
NA |
82 |
NA |
| 13BPC-20-16 |
25.4 |
BSP male 60° flare |
1 1/4 |
NA |
84 |
NA |
| 13BPC-4-04 |
6.4 |
BSP male 60° flare |
1/4 |
NA |
54 |
NA |
| 13BPC-6-05 |
7.9 |
BSP male 60° flare |
3/8 |
NA |
57 |
NA |
| 13BPC-6-06 |
9.5 |
BSP male 60° flare |
3/8 |
NA |
59 |
NA |
| 13BPC-8-06 |
9.5 |
BSP male 60° flare |
1/2 |
NA |
64 |
NA |
| 13BPC-8-08 |
12.7 |
BSP male 60° flare |
1/2 |
NA |
66 |
NA |
| 192PC-12-10 |
15.9 |
BSP female swivel 60° cone |
3/4 |
NA |
50 |
NA |
| 192PC-12-12 |
19 |
BSP female swivel 60° cone |
3/4 |
NA |
56 |
NA |
| 192PC-16-16 |
25.4 |
BSP female swivel 60° cone |
1 |
NA |
57 |
NA |
| 192PC-4-04 |
6.4 |
BSP female swivel 60° cone |
1/4 |
NA |
45 |
NA |
| 192PC-6-05 |
7.9 |
BSP female swivel 60° cone |
3/8 |
NA |
45 |
NA |
| 192PC-6-06 |
9.5 |
BSP female swivel 60° cone |
3/8 |
NA |
48 |
NA |
| 192PC-8-06 |
9.5 |
BSP female swivel 60° cone |
1/2 |
NA |
48 |
NA |
| 192PC-8-08 |
12.7 |
BSP female swivel 60° cone |
1/2 |
NA |
53 |
NA |
| 1B2PC-12-12 |
19 |
BSP female swivel 60° cone |
3/4 |
NA |
100 |
NA |
| 1B2PC-4-04 |
6.4 |
BSP female swivel 60° cone |
1/4 |
NA |
59 |
NA |
| 1B2PC-6-06 |
9.5 |
BSP female swivel 60° cone |
3/8 |
NA |
60 |
NA |
| 1B2PC-8-06 |
9.5 |
BSP female swivel 60° cone |
1/2 |
NA |
60 |
NA |
| 1B2PC-8-08 |
12.7 |
BSP female swivel 60° cone |
1/2 |
NA |
74 |
NA |
| 1C3PC-10-04 |
6.4 |
Metric female swivel 24°/60° |
NA |
16x1.5 |
46 |
10 |
| 1C3PC-10-05 |
7.9 |
Metric female swivel 24°/60° |
NA |
16x1.5 |
46 |
10 |
| 1C3PC-10-06 |
9.5 |
Metric female swivel 24°/60° |
NA |
16x1.5 |
49 |
10 |
| 1C3PC-12-06 |
9.5 |
Metric female swivel 24°/60° |
NA |
18x1.5 |
48 |
12 |
| 1C3PC-15-08 |
12.7 |
Metric female swivel 24°/60° |
NA |
22x1.5 |
51 |
15 |
| 1C3PC-8-04 |
6.4 |
Metric female swivel 24°/60° |
NA |
14x1.5 |
46 |
8 |
| 1C9PC-10-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
55 |
10 |
| 1C9PC-12-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
20x1.5 |
56 |
12 |
| 1C9PC-12-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
20x1.5 |
54 |
12 |
| 1C9PC-14-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
22x1.5 |
59 |
14 |
| 1C9PC-16-08 |
12.7 |
Metric female swivel 24° with O-ring |
NA |
24x1.5 |
65 |
16 |
| 1C9PC-20-10 |
15.9 |
Metric female swivel 24° with O-ring |
NA |
30x2 |
68 |
20 |
| 1CAPC-10-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
50 |
10 |
| 1CAPC-10-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
50 |
10 |
| 1CAPC-10-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
51 |
10 |
| 1CAPC-12-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
50 |
12 |
| 1CAPC-12-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
52 |
12 |
| 1CAPC-15-08 |
12.7 |
Metric female swivel 24° with O-ring |
NA |
22x1.5 |
59 |
15 |
| 1CAPC-18-10 |
15.9 |
Metric female swivel 24° with O-ring |
NA |
26x1.5 |
56 |
18 |
| 1CAPC-22-12 |
19 |
Metric female swivel 24° with O-ring |
NA |
30x2 |
62 |
22 |
| 1CAPC-28-16 |
25.4 |
Metric female swivel 24° with O-ring |
NA |
36x2 |
64 |
28 |
| 1CAPC-6-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
12x1.5 |
48 |
6 |
| 1CAPC-8-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
14x1.5 |
51 |
8 |
| 1CEPC-10-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
72 |
10 |
| 1CEPC-10-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
70 |
10 |
| 1CEPC-12-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
70 |
12 |
| 1CEPC-15-08 |
12.7 |
Metric female swivel 24° with O-ring |
NA |
22x1.5 |
83 |
15 |
| 1CEPC-18-10 |
15.9 |
Metric female swivel 24° with O-ring |
NA |
26x1.5 |
96 |
18 |
| 1CEPC-22-12 |
19 |
Metric female swivel 24° with O-ring |
NA |
30x2 |
114 |
22 |
| 1CEPC-28-16 |
25.4 |
Metric female swivel 24° with O-ring |
NA |
36x2 |
112 |
28 |
| 1CEPC-8-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
14x1.5 |
72 |
8 |
| 1CFPC-10-05 |
7.9 |
Metric female swivel 24° with O-ring |
NA |
16x1.5 |
59 |
10 |
| 1CFPC-12-06 |
9.5 |
Metric female swivel 24° with O-ring |
NA |
18x1.5 |
60 |
12 |
| 1CFPC-15-08 |
12.7 |
Metric female swivel 24° with O-ring |
NA |
22x1.5 |
74 |
15 |
| 1CFPC-18-10 |
15.9 |
Metric female swivel 24° with O-ring |
NA |
26x1.5 |
84 |
18 |
| 1CFPC-22-12 |
19 |
Metric female swivel 24° with O-ring |
NA |
30x2 |
100 |
22 |
| 1CFPC-8-04 |
6.4 |
Metric female swivel 24° with O-ring |
NA |
14x1.5 |
59 |
8 |
| 1D0PC-10-05 |
7.9 |
Metric male 24° |
NA |
16x1.5 |
54 |
10 |
| 1D0PC-10-06 |
9.5 |
Metric male 24° |
NA |
16x1.5 |
57 |
10 |
| 1D0PC-12-06 |
9.5 |
Metric male 24° |
NA |
18x1.5 |
56 |
12 |
| 1D0PC-15-08 |
12.7 |
Metric male 24° |
NA |
22x1.5 |
59 |
15 |
| 1D0PC-22-12 |
19 |
Metric male 24° |
NA |
30x2 |
67 |
22 |
| 1D0PC-8-04 |
6.4 |
Metric male 24° |
NA |
14x1.5 |
51 |
8 |
| 1D0PC-8-05 |
7.9 |
Metric male 24° |
NA |
14x1.5 |
53 |
8 |
| 1D2PC-12-05 |
7.9 |
Metric male 24° |
NA |
20x1.5 |
55 |
12 |
| 1D2PC-12-06 |
9.5 |
Metric male 24° |
NA |
22x1.5 |
57 |
12 |
| 1D2PC-14-05 |
7.9 |
Metric male 24° |
NA |
22x1.5 |
57 |
14 |
| 1D2PC-8-04 |
6.4 |
Metric male 24° |
NA |
16x1.5 |
56 |
8 |
| 1D9PC-4-04 |
6.4 |
BSP male |
1/4 |
NA |
57 |
NA |
| 1D9PC-6-05 |
7.9 |
BSP male |
3/8 |
NA |
58 |
NA |
| 1D9PC-6-06 |
9.5 |
BSP male |
3/8 |
NA |
60 |
NA |
| 1D9PC-8-06 |
9.5 |
BSP male |
1/2 |
NA |
62 |
NA |
| 1D9PC-8-08 |
12.7 |
BSP male |
1/2 |
NA |
64 |
NA |
| 1U0PC-4-04 |
6.4 |
BSP female swivel (ballnose) |
1/4 |
NA |
45 |
NA |
| 1U0PC-6-05 |
7.9 |
BSP female swivel (ballnose) |
3/8 |
NA |
45 |
NA |
| 1U0PC-6-06 |
9.5 |
BSP female swivel (ballnose) |
3/8 |
NA |
48 |
NA |
|
