Parker 流量控制阀
Parker Flow Control Valves

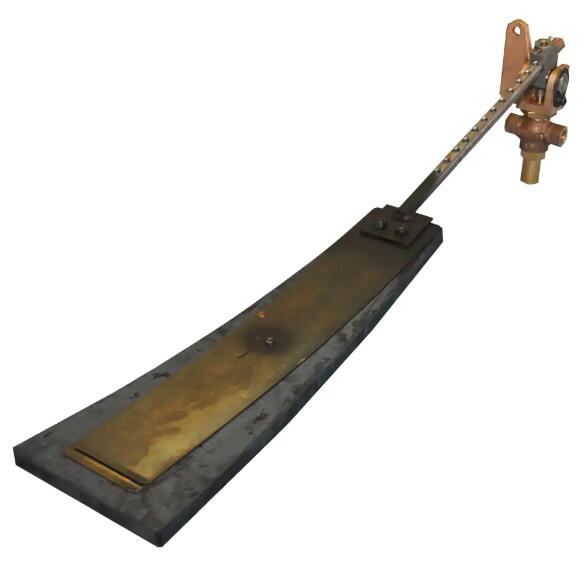

Pendulum Valves - Code 15

Parker Conflow's Code 15 pendulum dust suppression valve is used on conveyor belts to regulate the flow of liquid through a simple cam operation, therefore minimising water usage.





Parker Conflow's Code 15 pendulum dust suppression valve is used on conveyor belts to regulate the flow of liquid through a simple cam operation, therefore minimising water usage. It operates in conjunction with Parker Conflow's spray heads to regulate the flow of liquid by movement of a vertically hanging paddle. The valve opens only when the pendulum is moved from the vertical position, allowing the fluid to flow.

Code 15 is available in 1/2” to a maximum working pressure of 105 bar.



Pendulum Valves - Code 15



Markets:
- Quarrying
- Mining
- Anything with a conveyed load which creates dust.

Features/Benefits:
- Simple method of dust suppression, low maintenance and mechanically operated.
- Only sprays when necessary, saving water.
- Adjustable cam for greater flexibility.
- Manufactured from fire resistant paddle material.
- Easy to install and maintain.
- Adjustable pendulum length.
- Heavy duty construction ideal for mineral processing.
- Can be used in a sequence.

Applications:
- Supplying dust suppression water at belt conveyor transfer points, chutes and bunkers and feeder breakers in mining and quarrying.



Technical Specifications

Application: Dust Supression
Industry: Mining
Maximum Operating Pressure: 1,523 psi, 105 bar
Connection Size: 1/2" NPT, 1/2" BSP
Options: With paddle, Without paddle



Pendulum Valves - Code 15 型号

Part Connection Options
CODE-15-A-NPT-V1 1/2" NPT With paddle
CODE-15-A-V1 1/2" BSP Without paddle
CODE-15-A-V2 1/2" BSP With paddle
