Barbed Fittings
Plastic Barbed Fittings, Parker Par-Barbs
Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.
Parker's Par-Barb fittings are injection molded from high strength chemically inert white nylon and black polypropylene materials. Both materials are FDA and NSF-51 compliant. Par-Barb fittings are specially engineered with a four barb design that generates the maximum gripping and sealing power when combined with a hose clamp. Available in barbed, pipe and garden hose configurations ranging in sizes from 1/8” to 1 ?”.
Use with a variety of rubber tubing and hoses and the following Parker Parflex Division tubing.
- Polyurethane 90-95 Durometer Shore A
- Vinyl
Markets:
- Water
- Beverage
- Semi-conductor
- Filtration
- Food
Features/Benefits:
- Molded from high strength chemically inert thermoplastic materials
- Multiple barb design generates maximum gripping and sealing
- Meets FDA and NSF-51 requirements for food contact
- White Nylon and Black Polypropylene material
- 1/8" I.D. - 1 1/2" I.D.
Applications:
- Water
- Irrigation
- Reverse Osmosis
- Deionized water systems
- Pollution control
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
Connection Type: |
Barb, Thread and Swivel Nut |
Materials of Construction: |
Nylon, Polypropylene |
Shape: |
Various |
Minimum Operating Temperature: |
-40 (Nylon), 0 (Polypropylene) °F, -40 (Nylon), -12 (Polypropylene) °C |
Maximum Operating Temperature: |
200 (Nylon), 212 (Polypropylene) °F, 93 (Nylon), 100 (Polypropylene) °C |
Maximum Operating Pressure: |
125 psi, 8.5 bar |
Tube Material: |
Vinyl, Polyurethane, Rubber Hose |
Media: |
Water, Air, Other Compatible Fluids |
Application: |
Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing |
Specifications Met: |
FDA, NSF-51 |
Plastic Barbed Fittings, Parker Par-Barbs型号
Part |
Shape |
Style |
Fitting Material |
Connection 1 Hose I.D. (inch) |
Connection 1 Thread Size (inch) |
Connection 1 Style |
Connection 2 Hose I.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Style |

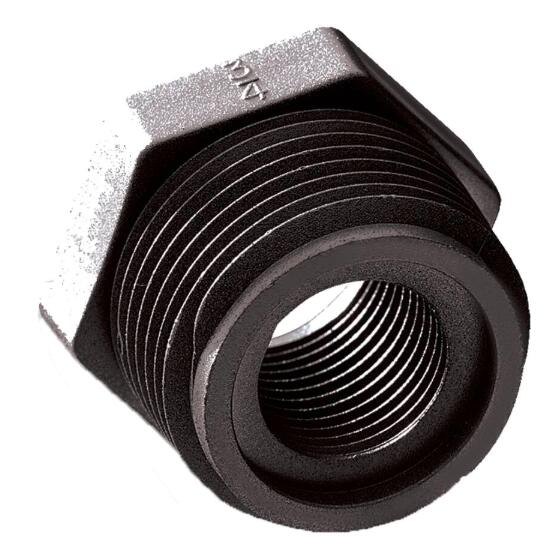

309P-12-2PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-12-4N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-12-4PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-12-6N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
3/8 |
Female Pipe |
309P-12-6PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
3/8 |
Female Pipe |
309P-12-8N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
1/2 |
Female Pipe |
309P-12-8PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
1/2 |
Female Pipe |
309P-4-2N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
1/4 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-4-2PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
1/4 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-6-2N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-6-2PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-6-4N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-6-4PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-8-2N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-8-2PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
1/8 |
Female Pipe |
309P-8-4N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-8-4PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
1/4 |
Female Pipe |
309P-8-6N |
Bushing |
Female Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
3/8 |
Female Pipe |
309P-8-6PP |
Bushing |
Female Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
3/8 |
Female Pipe |
30GH-12 |
Garden HoseWasher |
Garden Hose Thread |
White Nylon |
na |
3/4 |
Female Garden Hose |
na |
na |
na |
313GH-12N |
Garden Hose Cap |
Garden Hose Thread |
White Nylon |
na |
3/4 |
Female Garden Hose |
na |
na |
na |
316GH-12-12N |
Male Pipe Adapter |
Male Garden Hose to Male Pipe |
White Nylon |
na |
3/4 |
Male Garden Hose |
na |
3/4 |
Male Pipe |
316GH-12-6N |
Male Pipe Adapter |
Male Garden Hose to Male Pipe |
White Nylon |
na |
3/4 |
Male Garden Hose |
na |
3/8 |
Male Pipe |
316GH-12-8N |
Male Pipe Adapter |
Male Garden Hose to Male Pipe |
White Nylon |
na |
3/4 |
Male Garden Hose |
na |
1/2 |
Male Pipe |
316P-12-6N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-12-6PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-12-8N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
1/2 |
Male Pipe |
316P-12-8PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
1/2 |
Male Pipe |
316P-12N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
3/4 |
Male Pipe |
316P-12PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
3/4 |
Male Pipe |
316P-16N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1 |
Male Pipe |
na |
1 |
Male Pipe |
316P-16PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1 |
Male Pipe |
na |
1 |
Male Pipe |
316P-2N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/8 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-2PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/8 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-4-2N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/4 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-4-2PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/4 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-4N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/4 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-4PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/4 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-6-2N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-6-2PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-6-4N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-6-4PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-6N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-6PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-8-2N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-8-2PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
1/8 |
Male Pipe |
316P-8-4N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-8-4PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
1/4 |
Male Pipe |
316P-8-6N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-8-6PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
3/8 |
Male Pipe |
316P-8N |
Hex Nipple |
Male Pipe to Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
1/2 |
Male Pipe |
316P-8PP |
Hex Nipple |
Male Pipe to Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
1/2 |
Male Pipe |
318P-12N |
Hex Plug |
Male Pipe |
White Nylon |
na |
3/4 |
Male Pipe |
na |
na |
na |
318P-12PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
3/4 |
Male Pipe |
na |
na |
na |
318P-16N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1 |
Male Pipe |
na |
na |
na |
318P-16PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1 |
Male Pipe |
na |
na |
na |
318P-20N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1 1/4 |
Male Pipe |
na |
na |
na |
318P-20PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1 1/4 |
Male Pipe |
na |
na |
na |
318P-24N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1 1/2 |
Male Pipe |
na |
na |
na |
318P-24PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1 1/2 |
Male Pipe |
na |
na |
na |
318P-2N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1/8 |
Male Pipe |
na |
na |
na |
318P-2PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1/8 |
Male Pipe |
na |
na |
na |
318P-4N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1/4 |
Male Pipe |
na |
na |
na |
318P-4PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1/4 |
Male Pipe |
na |
na |
na |
318P-6N |
Hex Plug |
Male Pipe |
White Nylon |
na |
3/8 |
Male Pipe |
na |
na |
na |
318P-6PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
3/8 |
Male Pipe |
na |
na |
na |
318P-8N |
Hex Plug |
Male Pipe |
White Nylon |
na |
1/2 |
Male Pipe |
na |
na |
na |
318P-8PP |
Hex Plug |
Male Pipe |
Black Polypropylene |
na |
1/2 |
Male Pipe |
na |
na |
na |
31GH-12N |
Garden Hose Nut |
Garden Hose Thread |
White Nylon |
na |
3/4 |
Female Garden Hose |
na |
na |
na |
31HB-4N |
Hose Barb Swivel Nut |
Female Pipe |
White Nylon |
na |
1/4 |
Female Pipe |
na |
na |
na |
31HB-4PP |
Hose Barb Swivel Nut |
Female Pipe |
Black Polypropylene |
na |
1/4 |
Female Pipe |
na |
na |
na |
31HB-6N |
Hose Barb Swivel Nut |
Female Pipe |
White Nylon |
na |
3/8 |
Female Pipe |
na |
na |
na |
31HB-6PP |
Hose Barb Swivel Nut |
Female Pipe |
Black Polypropylene |
na |
3/8 |
Female Pipe |
na |
na |
na |
31HB-8N |
Hose Barb Swivel Nut |
Female Pipe |
White Nylon |
na |
1/2 |
Female Pipe |
na |
na |
na |
31HB-8PP |
Hose Barb Swivel Nut |
Female Pipe |
Black Polypropylene |
na |
1/2 |
Female Pipe |
na |
na |
na |
322HB-10-6N |
Union |
Barb to Barb |
White Nylon |
5/8 |
na |
Barb |
3/8 |
na |
Barb |
322HB-10-6PP |
Union |
Barb to Barb |
Black Polypropylene |
5/8 |
na |
Barb |
3/8 |
na |
Barb |
322HB-10-8N |
Union |
Barb to Barb |
White Nylon |
5/8 |
na |
Barb |
1/2 |
na |
Barb |
322HB-10-8PP |
Union |
Barb to Barb |
Black Polypropylene |
5/8 |
na |
Barb |
1/2 |
na |
Barb |
322HB-10N |
Union |
Barb to Barb |
White Nylon |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
322HB-10PP |
Union |
Barb to Barb |
Black Polypropylene |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
322HB-12-8N |
Union |
Barb to Barb |
White Nylon |
3/4 |
na |
Barb |
1/2 |
na |
Barb |
322HB-12-8PP |
Union |
Barb to Barb |
Black Polypropylene |
3/4 |
na |
Barb |
1/2 |
na |
Barb |
322HB-12N |
Union |
Barb to Barb |
White Nylon |
3/4 |
na |
Barb |
3/4 |
na |
Barb |
322HB-12PP |
Union |
Barb to Barb |
Black Polypropylene |
3/4 |
na |
Barb |
3/4 |
na |
Barb |
322HB-16N |
Union |
Barb to Barb |
White Nylon |
1 |
na |
Barb |
1 |
na |
Barb |
322HB-20N |
Union |
Barb to Barb |
White Nylon |
1 1/4 |
na |
Barb |
1 1/4 |
na |
Barb |
322HB-24N |
Union |
Barb to Barb |
White Nylon |
1 1/2 |
na |
Barb |
1 1/2 |
na |
Barb |
322HB-2N |
Union |
Barb to Barb |
White Nylon |
1/8 |
na |
Barb |
1/8 |
na |
Barb |
322HB-2PP |
Union |
Barb to Barb |
Black Polypropylene |
1/8 |
na |
Barb |
1/8 |
na |
Barb |
322HB-3N |
Union |
Barb to Barb |
White Nylon |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
322HB-3PP |
Union |
Barb to Barb |
Black Polypropylene |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
322HB-4-2N |
Union |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
1/8 |
na |
Barb |
322HB-4-2PP |
Union |
Barb to Barb |
Black Polypropylene |
1/4 |
na |
Barb |
1/8 |
na |
Barb |
322HB-4-3N |
Union |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
3/16 |
na |
Barb |
322HB-4-3PP |
Union |
Barb to Barb |
Black Polypropylene |
1/4 |
na |
Barb |
3/16 |
na |
Barb |
322HB-4N |
Union |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
322HB-4PP |
Union |
Barb to Barb |
Black Polypropylene |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
322HB-5N |
Union |
Barb to Barb |
White Nylon |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
322HB-5PP |
Union |
Barb to Barb |
Black Polypropylene |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
322HB-6-4N |
Union |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
1/4 |
na |
Barb |
322HB-6-4PP |
Union |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
1/4 |
na |
Barb |
322HB-6-5N |
Union |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
5/16 |
na |
Barb |
322HB-6-5PP |
Union |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
5/16 |
na |
Barb |
322HB-6N |
Union |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
322HB-6PP |
Union |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
322HB-8-4N |
Union |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/4 |
na |
Barb |
322HB-8-4PP |
Union |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
1/4 |
na |
Barb |
322HB-8-6N |
Union |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
322HB-8-6PP |
Union |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
322HB-8N |
Union |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
322HB-8PP |
Union |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
325GH-10-12N |
Connector |
Barb to Garden Hose |
White Nylon |
5/8 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GH-12-12N |
Connector |
Barb to Garden Hose |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GH-4-12N |
Connector |
Barb to Garden Hose |
White Nylon |
1/4 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GH-6-12N |
Connector |
Barb to Garden Hose |
White Nylon |
3/8 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GH-8-12N |
Connector |
Barb to Garden Hose |
White Nylon |
1/2 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GHSV-10-12BN |
Garden Hose Swivel Hose Barb Stem |
Barb to Garden Hose Swivel |
White Nylon |
5/8 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GHSV-12-12BN |
Garden Hose Swivel Hose Barb Stem |
Barb to Garden Hose Swivel |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GHSV-4-12BN |
Garden Hose Swivel Hose Barb Stem |
Barb to Garden Hose Swivel |
White Nylon |
1/4 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GHSV-6-12BN |
Garden Hose Swivel Hose Barb Stem |
Barb to Garden Hose Swivel |
White Nylon |
3/8 |
na |
Barb |
na |
3/4 |
Garden Hose |
325GHSV-8-12BN |
Garden Hose Swivel Hose Barb Stem |
Barb to Garden Hose Swivel |
White Nylon |
1/2 |
na |
Barb |
na |
3/4 |
Garden Hose |
325HB-10-12N |
Connector |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-10-12PP |
Connector |
Barb to Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-10-6N |
Connector |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-10-6PP |
Connector |
Barb to Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-10-8N |
Connector |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-10-8PP |
Connector |
Barb to Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-12-12N |
Connector |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-12-12PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-12-16N |
Connector |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 |
Male Pipe |
325HB-12-20N |
Connector |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
325HB-12-24N |
Connector |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
325HB-12-8N |
Connector |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-12-8PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-16-12N |
Connector |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-16-16N |
Connector |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 |
Male Pipe |
325HB-16-20N |
Connector |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
325HB-16-24N |
Connector |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
325HB-16-8N |
Connector |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-20-20N |
Connector |
Barb to Pipe |
White Nylon |
1 1/4 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
325HB-20-24N |
Connector |
Barb to Pipe |
White Nylon |
1 1/4 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
325HB-24-20N |
Connector |
Barb to Pipe |
White Nylon |
1 1/2 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
325HB-24-24N |
Connector |
Barb to Pipe |
White Nylon |
1 1/2 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
325HB-3-2N |
Connector |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-3-2PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-3-4N |
Connector |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-3-4PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/16 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-4-12N |
Connector |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-4-2N |
Connector |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-4-2PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-4-4N |
Connector |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-4-4PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-4-6N |
Connector |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-4-8N |
Connector |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-4-8PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-5-2N |
Connector |
Barb to Pipe |
White Nylon |
5/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-5-4N |
Connector |
Barb to Pipe |
White Nylon |
5/16 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-5-6N |
Connector |
Barb to Pipe |
White Nylon |
5/16 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-5-6PP |
Connector |
Barb to Pipe |
Black Polypropylene |
5/16 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-6-12N |
Connector |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-6-12PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-6-2N |
Connector |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-6-2PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/8 |
Male Pipe |
325HB-6-4N |
Connector |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-6-4PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-6-6N |
Connector |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-6-6PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-6-8N |
Connector |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-6-8PP |
Connector |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-8-12N |
Connector |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-8-12PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/4 |
Male Pipe |
325HB-8-4N |
Connector |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-8-4PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
325HB-8-6N |
Connector |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-8-6PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
325HB-8-8N |
Connector |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
325HB-8-8PP |
Connector |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
326HB-10-6N |
Connector |
Barb to Female Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-10-6PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-10-8N |
Connector |
Barb to Female Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-10-8PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-12-12N |
Connector |
Barb to Female Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Female Pipe |
326HB-12-12PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
3/4 |
Female Pipe |
326HB-12-8N |
Connector |
Barb to Female Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-12-8PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-3-2N |
Connector |
Barb to Female Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-3-2PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/16 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-3-4N |
Connector |
Barb to Female Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-3-4PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/16 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-4-2N |
Connector |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-4-2PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-4-4N |
Connector |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-4-4PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-4-6N |
Connector |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-4-6PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-4-8N |
Connector |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-4-8PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-6-2N |
Connector |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-6-2PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/8 |
Female Pipe |
326HB-6-4N |
Connector |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-6-4PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-6-6N |
Connector |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-6-6PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-6-8N |
Connector |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-6-8PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-8-4N |
Connector |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-8-4PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/4 |
Female Pipe |
326HB-8-6N |
Connector |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-8-6PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/8 |
Female Pipe |
326HB-8-8N |
Connector |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Female Pipe |
326HB-8-8PP |
Connector |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
Female Pipe |
328HB-4-8BN |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
White Nylon |
1/4 |
na |
Barb |
na |
1/2 |
Swivel Nut NPT |
328HB-4-8BPP |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/2 |
NPT Swivel Nut |
328HB-4BN |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Swivel Nut NPT |
328HB-4BPP |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
NPT Swivel Nut |
328HB-6BN |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Swivel Nut NPT |
328HB-6BPP |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
NPT Swivel Nut |
328HB-8BN |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Swivel Nut NPT |
328HB-8BPP |
Ball Nose Hose Barb Stem |
Barb to Ball Nose |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
NPT Swivel Nut |
329HB-10-12N |
90° Elbow |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-10-12PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-10-6N |
90° Elbow |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-10-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
5/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-10-8PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
5/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-12-12N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-12-12PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-12-16N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 |
Male Pipe |
329HB-12-20N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
329HB-12-24N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
329HB-12-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-12-8PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-16-12N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-16-16N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 |
Male Pipe |
329HB-16-20N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
329HB-16-24N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
329HB-16-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-20-20N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 1/4 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
329HB-20-24N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 1/4 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
329HB-24-20N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 1/2 |
na |
Barb |
na |
1 1/4 |
Male Pipe |
329HB-24-24N |
90° Elbow |
Barb to Pipe |
White Nylon |
1 1/2 |
na |
Barb |
na |
1 1/2 |
Male Pipe |
329HB-3-2N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-3-2PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-3-4N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-4-2N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-4-2PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-4-4N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-4-4PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-4-6N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-4-6PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-4-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-4-8PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-5-2N |
90° Elbow |
Barb to Pipe |
White Nylon |
5/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-6-2N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-6-2PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/8 |
Male Pipe |
329HB-6-4N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-6-4PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-6-6N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-6-6PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-6-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-6-8PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-8-12N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-8-12PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/4 |
Male Pipe |
329HB-8-4N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-8-4PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
329HB-8-6N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-8-6PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
329HB-8-8N |
90° Elbow |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
329HB-8-8PP |
90° Elbow |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
362HB-4N |
Union Y |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
362HB-6N |
Union Y |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
362HB-8N |
Union Y |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
364HB-10N |
Tee |
Barb to Barb |
White Nylon |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
364HB-10PP |
Tee |
Barb to Barb |
Black Polypropylene |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
364HB-12N |
Tee |
Barb to Barb |
White Nylon |
3/4 |
na |
Barb |
3/4 |
na |
Barb |
364HB-16N |
Tee |
Barb to Barb |
White Nylon |
1 |
na |
Barb |
1 |
na |
Barb |
364HB-20N |
Tee |
Barb to Barb |
White Nylon |
1 1/4 |
na |
Barb |
1 1/4 |
na |
Barb |
364HB-24N |
Tee |
Barb to Barb |
White Nylon |
1 1/2 |
na |
Barb |
1 1/2 |
na |
Barb |
364HB-3N |
Tee |
Barb to Barb |
White Nylon |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
364HB-3PP |
Tee |
Barb to Barb |
Black Polypropylene |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
364HB-4-6N |
Tee |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
3/8 |
na |
Barb |
364HB-4N |
Tee |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
364HB-4PP |
Tee |
Barb to Barb |
Black Polypropylene |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
364HB-5N |
Tee |
Barb to Barb |
White Nylon |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
364HB-5PP |
Tee |
Barb to Barb |
Black Polypropylene |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
364HB-6-3N |
Tee |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
3/16 |
na |
Barb |
364HB-6-3PP |
Tee |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
3/16 |
na |
Barb |
364HB-6-4N |
Tee |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
1/4 |
na |
Barb |
364HB-6-4PP |
Tee |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
1/4 |
na |
Barb |
364HB-6-8N |
Tee |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
1/2 |
na |
Barb |
364HB-6-8PP |
Tee |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
1/2 |
na |
Barb |
364HB-6N |
Tee |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
364HB-6PP |
Tee |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
364HB-8-6N |
Tee |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
364HB-8-6PP |
Tee |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
364HB-8N |
Tee |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
364HB-8PP |
Tee |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
364HBM-2N |
Tee |
Barb to Barb |
White Nylon |
1/8 |
na |
Barb |
1/8 |
na |
Barb |
365HB-10N |
90° Elbow |
Barb to Barb |
White Nylon |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
365HB-10PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
5/8 |
na |
Barb |
5/8 |
na |
Barb |
365HB-12N |
90° Elbow |
Barb to Barb |
White Nylon |
3/4 |
na |
Barb |
3/4 |
na |
Barb |
365HB-12PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
3/4 |
na |
Barb |
3/4 |
na |
Barb |
365HB-16N |
90° Elbow |
Barb to Barb |
White Nylon |
1 |
na |
Barb |
1 |
na |
Barb |
365HB-20N |
90° Elbow |
Barb to Barb |
White Nylon |
1 1/4 |
na |
Barb |
1 1/4 |
na |
Barb |
365HB-24N |
90° Elbow |
Barb to Barb |
White Nylon |
1 1/2 |
na |
Barb |
1 1/2 |
na |
Barb |
365HB-3N |
90° Elbow |
Barb to Barb |
White Nylon |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
365HB-3PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
3/16 |
na |
Barb |
3/16 |
na |
Barb |
365HB-4N |
90° Elbow |
Barb to Barb |
White Nylon |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
365HB-4PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
1/4 |
na |
Barb |
1/4 |
na |
Barb |
365HB-5N |
90° Elbow |
Barb to Barb |
White Nylon |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
365HB-5PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
5/16 |
na |
Barb |
5/16 |
na |
Barb |
365HB-6N |
90° Elbow |
Barb to Barb |
White Nylon |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
365HB-6PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
3/8 |
na |
Barb |
3/8 |
na |
Barb |
365HB-8-4N |
90° Elbow |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/4 |
na |
Barb |
365HB-8-4PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
1/4 |
na |
Barb |
365HB-8-6N |
90° Elbow |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
365HB-8-6PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
3/8 |
na |
Barb |
365HB-8N |
90° Elbow |
Barb to Barb |
White Nylon |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
365HB-8PP |
90° Elbow |
Barb to Barb |
Black Polypropylene |
1/2 |
na |
Barb |
1/2 |
na |
Barb |
370HB-12-12N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Female Pipe |
370HB-12-12PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
3/4 |
Female Pipe |
370HB-4-2N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/8 |
Female Pipe |
370HB-4-2PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/8 |
Female Pipe |
370HB-4-4N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-4-4PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-4-6N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-4-6PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-4-8N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
370HB-4-8PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/2 |
Female Pipe |
370HB-6-2N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/8 |
Female Pipe |
370HB-6-2PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/8 |
Female Pipe |
370HB-6-4N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-6-4PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-6-6N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-6-6PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-6-8N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
370HB-6-8PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/2 |
Female Pipe |
370HB-8-12N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/4 |
Female Pipe |
370HB-8-12PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/4 |
Female Pipe |
370HB-8-4N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-8-4PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/4 |
Female Pipe |
370HB-8-6N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-8-6PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/8 |
Female Pipe |
370HB-8-8N |
90° Elbow |
Barb to Female Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Female Pipe |
370HB-8-8PP |
90° Elbow |
Barb to Female Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
Female Pipe |
372HB-12-12N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
372HB-12-12PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
3/4 |
na |
Barb |
na |
3/4 |
Male Pipe |
372HB-16-12N |
Branch Tee |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
3/4 |
Male Pipe |
372HB-16-16N |
Branch Tee |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1 |
Male Pipe |
372HB-16-8N |
Branch Tee |
Barb to Pipe |
White Nylon |
1 |
na |
Barb |
na |
1/2 |
Male Pipe |
372HB-3-2N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/8 |
Male Pipe |
372HB-3-4N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/16 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-4-2N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
372HB-4-2PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/8 |
Male Pipe |
372HB-4-4N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-4-4PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-4-6N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/4 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-4-6PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/4 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-6-4N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-6-4PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-6-6N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-6-6PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-6-8N |
Branch Tee |
Barb to Pipe |
White Nylon |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
372HB-6-8PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
3/8 |
na |
Barb |
na |
1/2 |
Male Pipe |
372HB-8-4N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-8-4PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/4 |
Male Pipe |
372HB-8-6N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-8-6PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
3/8 |
Male Pipe |
372HB-8-8N |
Branch Tee |
Barb to Pipe |
White Nylon |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
372HB-8-8PP |
Branch Tee |
Barb to Pipe |
Black Polypropylene |
1/2 |
na |
Barb |
na |
1/2 |
Male Pipe |
P2HPL |
hex plug |
na |
Polyethylene |
na |
na |
hex plug |
na |
1/8 |
na |
P2UCB2 |
Union Connector |
na |
Polyethylene |
na |
1/8 |
Barb |
na |
1/8 |
Barb |
P3MCB2 |
Connector |
na |
Polyethylene |
na |
3/16 |
Barb |
na |
1/8 |
mnpt |
P3MCB4 |
Connector |
na |
Polyethylene |
na |
3/16 |
Barb |
na |
1/4 |
mnpt |
P3TUB3 |
Tee Union |
na |
Polyethylene |
na |
3/16 |
Barb |
na |
3/16 |
Barb |
P3UCB3 |
Union Connector |
na |
Polyethylene |
na |
3/16 |
Barb |
na |
3/16 |
Barb |
P4EUB4 |
Elbow Union |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/4 |
Barb |
P4HPL |
Hex Plug |
na |
Polyethylene |
na |
1/4 |
na |
na |
na |
na |
P4MCB2 |
Male Connector |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/8 |
mnpt |
P4MCB4 |
Male Connector |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/4 |
mnpt |
P4MCB8 |
Male Connector |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/2 |
mnpt |
P4MEB4 |
Male Elbow |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/4 |
Barb |
P4TUB4 |
Tee Union |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/4 |
Barb |
P4UCB4 |
Union Connector |
na |
Polyethylene |
na |
1/4 |
Barb |
na |
1/4 |
Barb |
P6MCB4 |
Male Connector |
na |
Polyethylene |
na |
3/8 |
Barb |
na |
1/4 |
mnpt |
P6MCB8 |
Male Connector |
na |
Polyethylene |
na |
3/8 |
Barb |
na |
1/2 |
mnpt |
P6MEB4 |
Male Elbow |
na |
Polyethylene |
na |
3/8 |
Barb |
na |
1/4 |
Barb |
P6TUB6 |
Tee Union |
na |
Polyethylene |
na |
3/8 |
Barb |
na |
3/8 |
Barb |
P6UCB4 |
Union Connector |
na |
Polyethylene |
na |
3/8 |
Barb |
na |
1/4 |
Barb |
P8EUB8 |
Elbow Union |
na |
Polyethylene |
na |
1/2 |
Barb |
na |
1/2 |
Barb |
P8MCB4 |
Male Connector |
na |
Polyethylene |
na |
1/2 |
Barb |
na |
1/4 |
mnpt |
P8MCB6 |
Male Connector |
na |
Polyethylene |
na |
1/2 |
Barb |
na |
3/8 |
mnpt |
P8MCB8 |
Male Connector |
na |
Polyethylene |
na |
1/2 |
Barb |
na |
1/2 |
mnpt |
P8MEB8 |
Male Elbow |
na |
Polyethylene |
na |
1 |
Barb |
na |
1/4 |
Barb |
P8TUB8 |
Tee Union |
na |
Polyethylene |
na |
1/2 |
Barb |
na |
1/2 |
Barb |
|
