PMH Low pressure hydraulic fittings

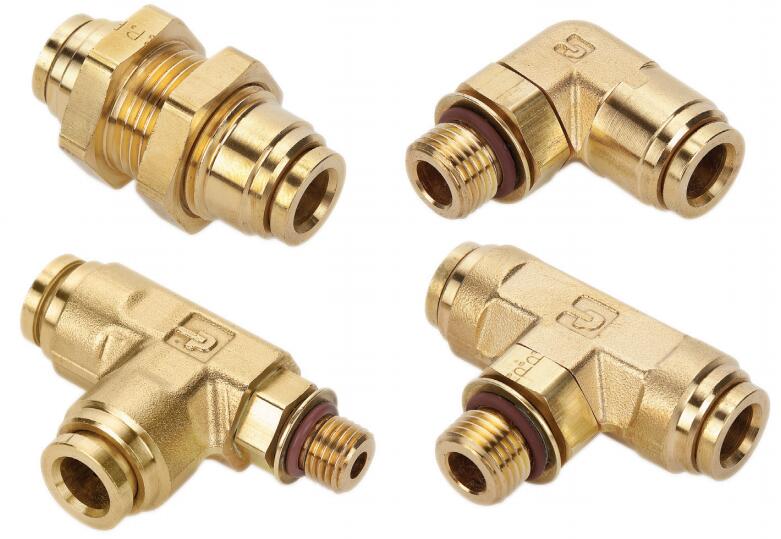

PMH push-to-connect hydraulic fittings are designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports.
Parker PMH hydraulic fittings are an ideal solution and include excellent corrosion resistance, a compact envelope, fewer potential leak points and are lightweight. This push to connect hydraulic fitting is designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports.
PMH low pressure hydraulic fittings, partnered with XDT tubing from Parflex Division, are for use with low pressure hydraulics (<435 psi) in the Industrial and Mobile Hydraulic Markets. The all brass construction can eliminate corrosion, extending the life of the equipment. PMH hydraulic fittings have been engineered with fewer potential leak points which reduce future warranty costs. PMH fittings offer a smaller envelop, allowing for tighter routings and reducing the complexity of the assembly process.
With the PMH push-to-connect fittings system, an assembler simply needs to push the tubing into the pre-installed adapter. PMH low pressure fittings significantly reduce assembly time by 60 seconds per connection. Along with accelerating the assembly, the PMH/XDT system is 60% lighter than traditional pilot line hose assemblies, reducing annual shipping costs and vehicle weight.
PMH Low pressure hydraulic fittings
Markets:
- Industrial
- Mobile hydraulic
Features/Benefits:
- Brass body & collet
- Nitrile O-ring
- Corrosion resistant
- Weighs 60% less than standard hydraulic fittings
- Reduces assembly time by 60 seconds per connection
- Compact allowing for tighter routing
Applications:
- Pilot lines
- Hydraulic joystick
- Case drain
Technical Specifications
|
| Application: |
Hydraulic joystick, Pilot lines and Case drain |
| Connection Type: |
Push-to-Connect, Thread, SAE Straight Thread |
| Maximum Operating Pressure: |
30 bar, 435 psi, 435 psi, 30 bar |
| Shape: |
Tee, Connector and 90° Elbow |
| Materials of Construction: |
Brass |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
200 °F, 93 °C |
| Tube Material: |
XDT Tubing |
| O-Ring Material: |
Nitrile |
| Connection 1 Size: |
Push-to-connect |
PMH Low pressure hydraulic fittings 型号
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
Connection 3 Tube O.D. (inch) |
Connection 3 Thread Size (inch) |
Connection 3 Style |
| 1695PMH-6-4 |
Male Elbow |
Tube to Straight thread |
3/8 |
1/4 |
na |
SAE Straight Thread |
na |
na |
na |
| 1695PMH-6-6 |
Male Elbow |
Tube to Straight thread |
3/8 |
3/8 |
na |
SAE Straight Thread |
na |
na |
na |
| 1695PMH-6-8 |
Male Elbow |
Tube to Straight thread |
3/8 |
1/2 |
na |
SAE Straight Thread |
na |
na |
na |
| 1715PMH-6-4 |
Male Run Tee |
Tube to Straight thread |
3/8 |
1/4 |
na |
SAE Straight Thread |
3/8 |
na |
Push-to-connect |
| 1715PMH-6-6 |
Male Run Tee |
Tube to Straight thread |
3/8 |
3/8 |
na |
SAE Straight Thread |
3/8 |
na |
Push-to-connect |
| 1725PMH-6-4 |
Male Branch Tee |
Tube to Straight thread |
3/8 |
na |
3/8 |
Push-to-connect |
na |
1/4 |
SAE Straight Thread |
| 1725PMH-6-6 |
Male Branch Tee |
Tube to Straight thread |
3/8 |
na |
3/8 |
Push-to-connect |
na |
3/8 |
SAE Straight Thread |
| 685PMH-6-4 |
Male Connector |
Tube to Straight thread |
3/8 |
1/4 |
na |
SAE Straight Thread |
na |
na |
na |
| 685PMH-6-6 |
Male Connector |
Tube to Straight thread |
3/8 |
3/8 |
na |
SAE Straight Thread |
na |
na |
na |
|
