Push to Connect Fittings
Pneumatic Pressure Regulators

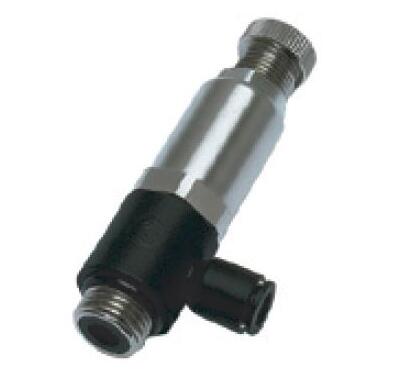

Parker Legris pressure regulators stabilise at the maximum determined value of the pressure delivered to the pneumatic equipment at any given fluctuations of the pressure upstream.
Parker Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.
Features/Benefits:
- Improved Productivity
- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption- Accuracy & Performance
- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long-term stability of flow
- Reduced weight (polymer version)
- Mechanical strength and corrosion resistance with nickel-plated brass version - Ergonomics & Large Range
- External adjustment screw: easy to adjust without tooling and lockable
- Recessed adjustment screw: more compact and protects the adjustment mechanism
- Uni-directional: exhaust or inlet
- Bi-directional: adjustment of air flow in both directions
- 360° positioning- NPT version on request
Markets:
- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail
Applications:
- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation
Technologies:
- Flow control
- Bi-directional regulator
- Uni-directional regulator
- Pneumatic controls
- Swivel OutletTechnical

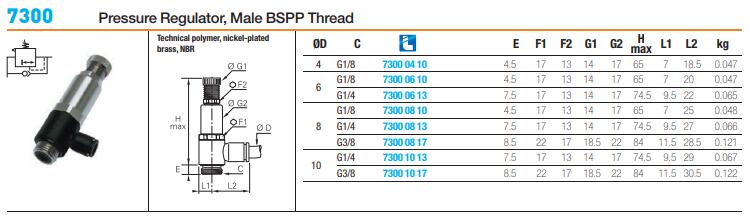

Technical Specifications
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
| Minimum Operating Temperature: |
-10 °C, 14 °F |
| Maximum Operating Pressure: |
16 bar, 232 psi, 1,6 MPa |
| Maximum Operating Temperature: |
158 °F, 70 °C |
| Tube Outside Diameter: |
4 to 10 mm |
| Shape: |
90° |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Materials of Construction: |
Nickel Plated Brass, Rubber, Technical Polymer |
| Connection Type: |
Push-to-Connect/Thread |
| Quantity per Box: |
1 |
| Weight: |
0,047 to 0,122 kg |
| Media: |
Compressed air |
