Pneumatic Sensor Fittings

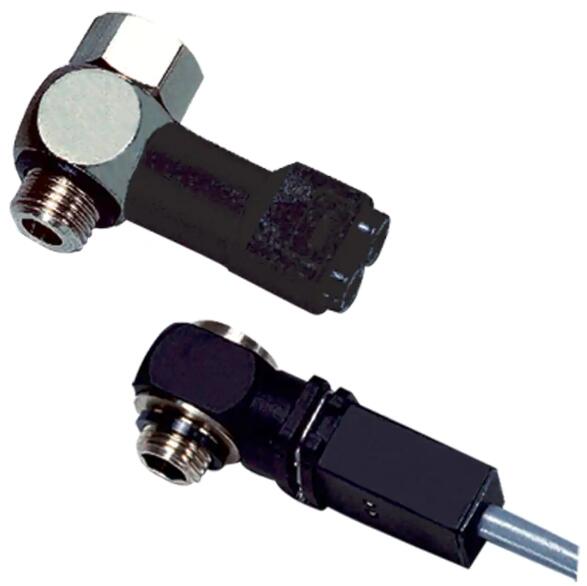

The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke.
They produce a pneumatic or electric output signal when the pressure drop below their back pressure threshold.
The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke.
They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.
Pneumatic Sensor Fittings
Features/Benefits:
- Easy-to-Use
- Suited to changes of series: no adjustment to position detectors is necessary
- With Pneumatic Output
- Totally pneumatic installation
- 2 possible installations:
Supplied with permanent pressure (P1): produces a pneumatic signal when the back pressure threshold is reached
Supplied from the control valve-cylinder circuit on the opposite side: no unexpected pneumatic signal (S) can appear during pressurisation due to the actuating pressure which supplies the sensor fitting (P1)
- With Electrical Output
- Combined electrical and pneumatic installation
- Installation with continuous electrical supply only (BU)
- Guarantees an electrical signal when the back pressure threshold is reached
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Pneumatic Circuits Pressure Drop Detection
Technologies:
- Pressure sensor
- Electric sensor
- Pneumatic sensors
- Pneumatic installation
- Pressure regulator
- Pneumatic system
- Pneumatic fittings
Technical Characteristics:
- Fluids: Compressed air
- Materials: brass, technical polymer, NBR, silicone free
- Pressure: 3 to 8 bar
- Temperature: -15°C to +60°C
- Back pressure: 0.85 to 1 bar
- Switching time: Model 7818: 3ms
Regulations:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
Product Types:
- Pneumatic Sensor Fitting, Male BSPP and Metric Thread
- Pneumatic Sensor, Male/Female BSPP Thread
- Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread
Technical Specifications
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
| Minimum Operating Temperature: |
-15 °C, 5 °F |
| Tube Outside Diameter: |
0.16 inch, 4 mm |
| Maximum Operating Pressure: |
8 bar, 116 psi, 0,8 MPa |
| Maximum Operating Temperature: |
140 °F, 60 °C |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer, Brass, Rubber |
| Connection Type: |
Thread |
| Quantity per Box: |
1 |
| Weight: |
0,025 to 0,206 kg |
| Media: |
Compressed air |
Pneumatic Sensor Fittings 型号
| Part |
Shape |
Gripping Ring |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (inch) |
Connection 2 Tube O.D. (mm) |
| 7818 04 10 |
Pneumatic sensor male |
STAINLESS STEEL |
BSPP |
G1/8 |
na |
4 |
| 7818 04 13 |
Pneumatic sensor male |
STAINLESS STEEL |
BSPP |
G1/4 |
na |
4 |
| 7818 04 17 |
Pneumatic sensor male |
STAINLESS STEEL |
BSPP |
G3/8 |
na |
4 |
| 7818 04 19 |
Pneumatic sensor male |
STAINLESS STEEL |
Metric |
M5x0,8 |
na |
4 |
| 7818 04 20 |
Pneumatic sensor male |
STAINLESS STEEL |
UNF |
10-32 |
5/32 |
na |
| 7818 04 21 |
Pneumatic sensor male |
STAINLESS STEEL |
BSPP |
G1/2 |
na |
4 |
| 7818 19 10 |
Pneumatic sensor female |
na |
BSPP |
G1/8 |
na |
na |
| 7818 19 13 |
Pneumatic sensor female |
na |
BSPP |
G1/4 |
na |
na |
| 7828 00 10 |
Pneumatic / electric sensor female |
na |
BSPP |
G1/8 |
na |
na |
| 7828 00 13 |
Pneumatic / electric sensor female |
na |
BSPP |
G1/4 |
na |
na |
| 7828 00 17 |
Pneumatic / electric sensor female |
na |
BSPP |
G3/8 |
na |
na |
| 7828 00 19 |
Pneumatic / electric sensor female |
na |
Metric |
M5x0,8 |
na |
na |
|
