Push to Connect Fittings

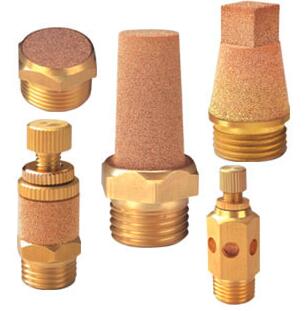

Pneumatic Silencers
Silencers are designed for installation on exhaust circuits to reduce the noise levels of equipment while operating, thus improving user comfort.
Silencers are designed for installation on exhaust circuits to reduce the noise levels of equipment while operating, thus improving user comfort.
Features/Benefits:
- Variety of Applications
- 2 versions incorporating flow control regulation
- Extremely compact models available
- Polyethylene: excellent balance between exhaust flow rate and noise reduction
- Sintered bronze: robust and economic
- 316L stainless steel: increased chemical resistance and mechanical strength
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Pneumatic Equipment Noise Reducing
Technologies:
- Noise reduction
- Function fitting
- Pneumatic silencer
- Flow control regulator
Technical Characteristics:
- Fluids: Compressed air
- Materials: brass, polymer, stainless steel, sintered bronze, 316L stainless steel, silicone free
- Pressure:
Polyethylene: 0 to 10 bar
Sintered bronze: 0 to 12 bar
316L stainless steel: 0 to 12 bar
- Temperature:
Polyethylene: -10°C to +80°C
Sintered bronze: -20°C to +150°C
316L stainless steel: -20°C to +180°C
Regulations:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
- DI: 2003/10/EC (Noise Directive)
Requirement to use ear protection if exposure > 8 hours (85 dBA)
- RG: 1910.95(b) (OSHA)
Requirement to use ear protection if exposure > 8 hours (90 dBA)
Product Types:
- Polymer Silencer, Male BSPP and Metric Thread
- Flow Control Polymer Silencer, Male BSPP and Metric Thread
- Threaded Silencer, Male BSPP Thread
- Compact Silencer, Male BSPP and Metric Thread
- Threaded Silencer, Male BSPP and Metric Thread
- Push-In Silencer
- Miniature Silencer, Male BSPP Thread
- Flow Control Silencer, Male BSPP Thread
- Compact Silencer, Male BSPP Thread
- Compact Silencer, Male NPT Thread
Technical Specifications
Maximum Operating Temperature: |
180 °C, 356 °F |
Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
Minimum Operating Temperature: |
-20 °C, -4 °F |
Maximum Operating Pressure: |
12 bar, 174 psi, 1,2 MPa |
Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH) - DI: 2003/10/EC (Noise Directive) - RG: 1910.95(b) (OSHA), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED), DI: 2003/10/EC (Noise Directive) Requirement to use ear protection if exposure > 8 hours (85 dBA), RG: 1910.95(b) (OSHA) Requirement to use ear protection if exposure > 8 hours (90 dBA) |
Connection Type: |
Push-to-Connect/Plug-in, Push-to-Connect/Thread |
Shape: |
Straight |
Materials of Construction: |
Technical Polymer, Brass, 316 Stainless Steel |
Quantity per Box: |
2 to 10 |
Weight: |
0,007 to 0,042 kg |
Media: |
Compressed air |
Pneumatic Silencers 型号
Part |
Shape |
Body Material |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
0670 00 10 |
Silencer male |
SINTERED BRONZE |
BSPP |
G1/8 |
na |
0670 00 13 |
Silencer male |
SINTERED BRONZE |
BSPP |
G1/4 |
na |
0670 00 17 |
Silencer male |
SINTERED BRONZE |
BSPP |
G3/8 |
na |
0670 00 21 |
Silencer male |
SINTERED BRONZE |
BSPP |
G1/2 |
na |
0670 00 27 |
Silencer male |
SINTERED BRONZE |
BSPP |
G3/4 |
na |
0670 00 34 |
Silencer male |
SINTERED BRONZE |
BSPP |
G1 |
na |
0671 04 00 |
Push-in silencer |
na |
na |
na |
4 |
0671 06 00 |
Push-in silencer |
na |
na |
na |
6 |
0671 08 00 |
Push-in silencer |
na |
na |
na |
8 |
0671 10 00 |
Push-in silencer |
na |
na |
na |
10 |
0671 12 00 |
Push-in silencer |
na |
na |
na |
12 |
0672 00 10 |
Flow control silencer male |
na |
BSPP |
G1/8 |
na |
0672 00 13 |
Flow control silencer male |
na |
BSPP |
G1/4 |
na |
0672 00 17 |
Flow control silencer male |
na |
BSPP |
G3/8 |
na |
0672 00 21 |
Flow control silencer male |
na |
BSPP |
G1/2 |
na |
0673 00 10 |
Silencer compact male |
BRASS |
BSPP |
G1/8 |
na |
0673 00 13 |
Silencer compact male |
BRASS |
BSPP |
G1/4 |
na |
0673 00 17 |
Silencer compact male |
BRASS |
BSPP |
G3/8 |
na |
0673 00 19 |
Silencer compact male |
BRASS |
Metric |
M5x0,8 |
na |
0673 00 20 |
Silencer compact male |
BRASS |
UNF |
10-32 |
na |
0673 00 21 |
Silencer compact male |
BRASS |
BSPP |
G1/2 |
na |
0674 00 10 |
Polymer silencer male |
na |
BSPP |
G1/8 |
na |
0674 00 13 |
Polymer silencer male |
na |
BSPP |
G1/4 |
na |
0674 00 17 |
Polymer silencer male |
na |
BSPP |
G3/8 |
na |
0674 00 19 |
Polymer silencer male |
na |
Metric |
M5x0,8 |
na |
0674 00 21 |
Polymer silencer male |
na |
BSPP |
G1/2 |
na |
0674 00 27 |
Polymer silencer male |
na |
BSPP |
G3/4 |
na |
0674 00 34 |
Polymer silencer male |
na |
BSPP |
G1 |
na |
0675 00 10 |
Silencer sub-base male |
na |
BSPP |
G1/8 |
na |
0675 00 13 |
Silencer sub-base male |
na |
BSPP |
G1/4 |
na |
0675 00 17 |
Silencer sub-base male |
na |
BSPP |
G3/8 |
na |
0675 00 19 |
Silencer sub-base male |
na |
Metric |
M5x0,8 |
na |
0675 00 21 |
Silencer sub-base male |
na |
BSPP |
G1/2 |
na |
0675 00 55 |
Silencer sub-base male |
na |
Metric |
M7x1 |
na |
0676 00 10 |
Flow control polymer silencer male |
na |
BSPP |
G1/8 |
na |
0676 00 13 |
Flow control polymer silencer male |
na |
BSPP |
G1/4 |
na |
0676 00 17 |
Flow control polymer silencer male |
na |
BSPP |
G3/8 |
na |
0676 00 19 |
Flow control polymer silencer male |
na |
Metric |
M5x0,8 |
na |
0676 00 21 |
Flow control polymer silencer male |
na |
BSPP |
G1/2 |
na |
0677 00 10 |
Miniature silencer male |
na |
BSPP |
G1/8 |
na |
0677 00 13 |
Miniature silencer male |
na |
BSPP |
G1/4 |
na |
0677 00 17 |
Miniature silencer male |
na |
BSPP |
G3/8 |
na |
0677 00 21 |
Miniature silencer male |
na |
BSPP |
G1/2 |
na |
0677 00 27 |
Miniature silencer male |
na |
BSPP |
G3/4 |
na |
0677 00 34 |
Miniature silencer male |
na |
BSPP |
G1 |
na |
0682 00 10 |
Compact silencer stainless steel male |
na |
BSPP |
G1/8 |
na |
0682 00 13 |
Compact silencer stainless steel male |
na |
BSPP |
G1/4 |
na |
0682 00 17 |
Compact silencer stainless steel male |
na |
BSPP |
G3/8 |
na |
0682 00 21 |
Compact silencer stainless steel male |
na |
BSPP |
G1/2 |
na |
0682 00 27 |
Compact silencer stainless steel male |
na |
BSPP |
G3/4 |
na |
0682 00 34 |
Compact silencer stainless steel male |
na |
BSPP |
G1 |
na |
0683 00 11 |
Compact silencer stainless steel male |
STAINLESS STEEL 316L |
NPT |
NPT1/8 |
na |
0683 00 14 |
Compact silencer stainless steel male |
STAINLESS STEEL 316L |
NPT |
NPT1/4 |
na |
0683 00 18 |
Compact silencer stainless steel male |
STAINLESS STEEL 316L |
NPT |
NPT3/8 |
na |
0683 00 22 |
Compact silencer stainless steel male |
STAINLESS STEEL 316L |
NPT |
NPT1/2 |
na |
|
