Parker Fittings接头
Push to Connect Fittings

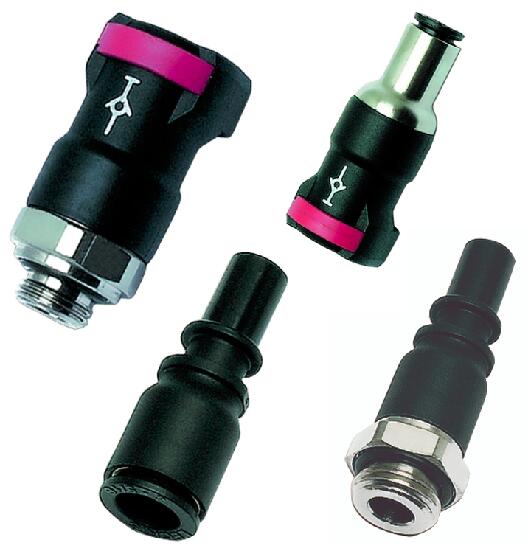

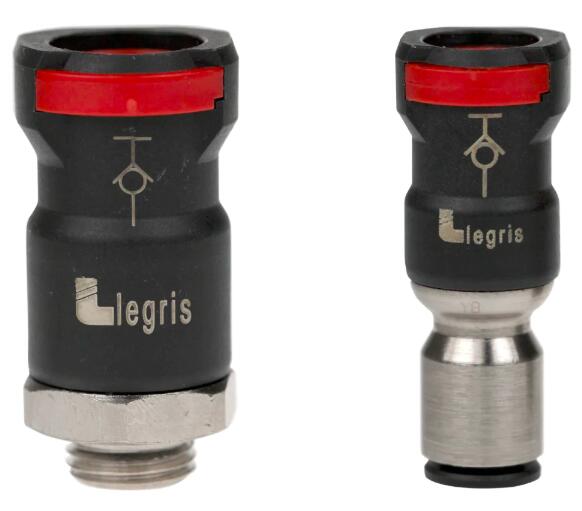

Pneumatic Snap Fittings
The snap fittings enable a circuit to be isolated without the need to vent the complete system.
They are designed to facilitate repeated connections and disconnections in total safety.
The snap fittings enable a circuit to be isolated without the need to vent the complete system.
They are designed to facilitate repeated connections and disconnections in total safety.
Features/Benefits:
- Performance & Safety
- Partial venting of systems while work is carried out
- Energy and time saving during maintenance operations
- Protection of individuals by maintaining pressure if necessary
- Audible click indicates connection
- Circuit identification by coloured rings (on request)
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Repeated Connections and Disconnections on Pneumatic Control Panels
- Pneumatic Circuits Isolation without Fully Venting
Technologies:
- Snap connectors
- Snap fitting
- Pneumatic fittings
- Air fittings
- Function fitting
- Pneumatic system
Technical Characteristics:
- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 0 to 10 bar
- Temperature: -20°C to +80°C
Regulations:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
Product Types:
- Body with Push-In Connection
- Body with Male BSPP Thread
- Straight Probe, Push-In Connection
- Straight Probe, Male BSPP Thread
Technical Specifications
| Maximum Operating Temperature: |
80 °C, 176 °F |
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment |
| Minimum Operating Temperature: |
-20 °C, -4 °F |
| Maximum Operating Pressure: |
1 MPa, 10 bar, 145 psi |
| Tube Outside Diameter: |
6 to 10 mm |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Connection Type: |
Push-to-Connect, Push-to-Connect/Plug-in, Push-to-Connect/Thread |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer, Nickel Plated Brass, Rubber |
| O-Ring Material: |
NBR |
| Quantity per Box: |
10 |
| Weight: |
0,003 to 0,034 kg |
| Media: |
Compressed air |
Pneumatic Snap Fittings 型号
| Part |
Shape |
Gripping Ring |
Sleeve Material |
Diameter Nominal (DN) |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
| 7921 05 10 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
5 |
BSPP |
G1/8 |
na |
| 7921 05 13 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
5 |
BSPP |
G1/4 |
na |
| 7921 07 13 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
7,3 |
BSPP |
G1/4 |
na |
| 7921 07 17 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
7,3 |
BSPP |
G3/8 |
na |
| 7926 05 06 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
5 |
na |
na |
6 |
| 7926 05 08 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
5 |
na |
na |
8 |
| 7926 07 10 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
7,3 |
na |
na |
10 |
| 7960 05 06 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
5 |
na |
na |
6 |
| 7960 05 08 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
5 |
na |
na |
8 |
| 7960 07 10 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
7,3 |
na |
na |
10 |
| 7961 05 10 |
Snap fitting straight probe male |
na |
na |
5 |
BSPP |
G1/8 |
na |
| 7961 05 13 |
Snap fitting straight probe male |
na |
na |
5 |
BSPP |
G1/4 |
na |
| 7961 07 13 |
Snap fitting straight probe male |
na |
na |
7,3 |
BSPP |
G1/4 |
na |
| 7961 07 17 |
Snap fitting straight probe male |
na |
na |
7,3 |
BSPP |
G3/8 |
na |
|
