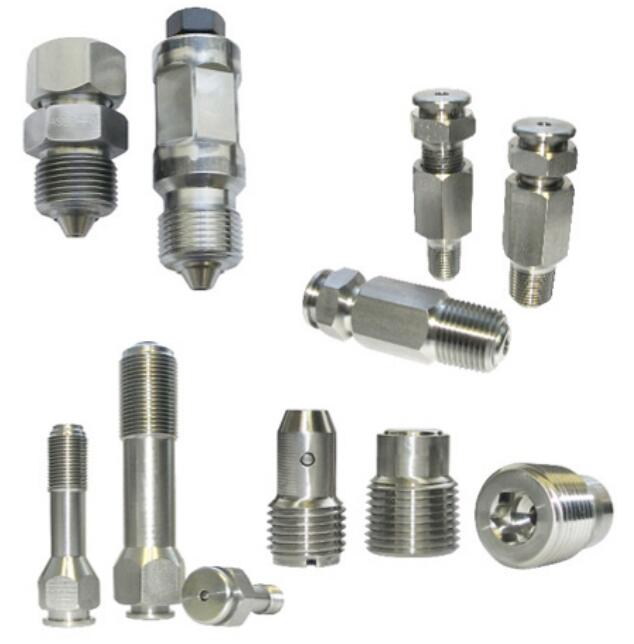

Wellhead Grease Fittings, Pressure Relief Tools & Plugs Series
Parker PGI's Pressure Relief Tools and Plugs were developed to properly connect to installed fittings to allow body cavity pressure to be vented to the atmosphere.
Parker PGI's Pressure Relief Tools and Plugs are offered in three styles to fit a variety of applications. These Pressure Relief Tools properly connect to fittings to allow body cavity pressure to be vented to atmosphere.
The standard Pressure Relief Tool PR11S8 connects to 1”-14 UNS thread sized Body Grease capped fittings and Giant Button Head capped fittings and has a 1/2” female NPT vent port to bleed to atmosphere. This PR tool has no pressure rating.
Wellhead Grease Fittings, Pressure Relief Tools & Plugs Series
The Pressure Relief Tool with Bleeder PR12S8 is standard with a bleeder valve attached. It also connects to 1”-14 UNS thread sized Body Grease capped fittings and Giant Button Head capped fittings and has a 1/2” female NPT vent port. This PR tool is rated for 10,000 psi service and has a port available for mounting a pressure gage (supplied by others).
The Pressure Relief Tool for Packing Injection Fittings F2-021-10 is only used to bleed pressure through a packing injection fitting. It is compatible with all Parker PGI packing injectors with 1/2"-20 UNF I.D. threads.
Parker PGI also offers a Packing Injection / Bleeder Plug which is also used to relieve pressure in McEvoy style wellheads. It is offered in 7/8”-9 or 1/2”-13 UNC thread sizes.
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- Service up to 10,000 PSI
- Compact Designs
- Available gauge port
Applications:
- Wellhead Equipment maintenance
- Packing injection fittings
Technical Specifications
| Application: |
Vent Capped Fittings | Packing Injector Fittings | Bleeder Plugs |
| Valve Option: |
Bleeder Valve | N/A |
| Body Material: |
1215 | 4140 | 17-4 Ph | Consult factory for additional materials |
| Connection Thread Size: |
1 (14 UNS) | 1/2 (20 UNF) | 7/8 (9 UNC) | 1/2 (13 UNC) inch |
| Plating Type: |
Zinc | N/A |
| Maximum Operating Pressure: |
10,000 | N/A psi, 689 | N/A bar |
| Heat Treatment: |
Rc 22 Max (NACE) | HH1150 (NACE) |
Wellhead Grease Fittings, Pressure Relief Tools & Plugs Series型号
| Part |
Application |
Valve Option |
Connection Thread Size (inch) |
Body Material |
| F2-021-10 |
Packing Injection Fittings |
N/A |
1/2" - 20 UNF |
1215 |
| PIBP12 |
Bleeder Plugs |
N/A |
1/2" - 13 UNC |
1215 |
| PIBP12-17 |
Bleeder Plugs |
N/A |
1/2" - 13 UNC |
17-4 pH |
| PIBP12-3 |
Bleeder Plugs |
N/A |
1/2" - 13 UNC |
4140 |
| PIBP78 |
Bleeder Plugs |
N/A |
7/8" - 9 UNC |
1215 |
| PIBP78-17 |
Bleeder Plugs |
N/A |
7/8" - 9 UNC |
17-4 pH |
| PIBP78-3 |
Bleeder Plugs |
N/A |
7/8" - 9 UNC |
4140 |
| PR11S8-10 |
Vent Capped Fittings |
N/A |
1" - 14 UNS |
1215 |
| PR11S8-80 |
Vent Capped Fittings |
Bleeder Valve |
1" - 14 UNS |
4140 |
| PR12S8-10 |
Vent Capped Fittings |
Bleeder Valve |
1" - 14 UNS |
1215 |
|
