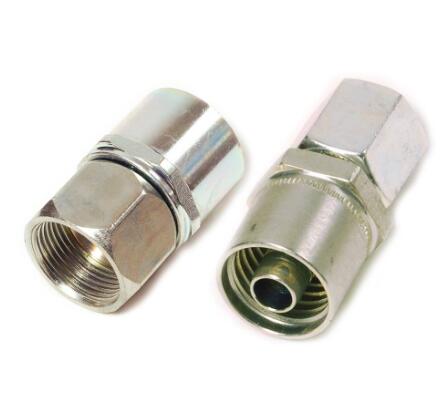

High Pressure Fittings for PTFE High Pressure Hose - 94/95N Series
94/95N Series Fittings are permanent, crimp style, steel fittings used with Parflex high pressure PTFE hoses 943B, 944B, 950B and 955B
94/95N Series Fittings are permanent, crimp style, steel fittings that are used with Parflex high pressure PTFE hoses 943B, 944B, 950B and 955B. These fittings are designed to withstand the conditions presented in high temperature hydraulics, chemical transfer and compressed air and gas applications. For a complete fitting overview, please refer to the literature on the Product Support tab.
High Pressure Fittings for PTFE High Pressure Hose - 94/95N Series
Markets:
- Fluid Handling
- Industrial
- Chemical
- Mobile Equipment
Features/Benefits:
- Capable of withstanding high pressures and temperatures for successful use in a wide range of applications
- Lead-in design
- Parkalign dies
- Available in stainless steel
Applications:
- High temperature hydraulics
- Chemical transfer
- Compressed air/gases
- Paint
Technical Specifications
| Port Size: |
0.250 - 1.000 inch |
| Shape: |
Straight |
| Application: |
Various |
| Connection Type: |
Crimped, 37° Flare |
| Hose Inside Diameter: |
15/64, 5/16, 7/16, 13/32, 1/2, 5/8, 29/32 inch, 6, 8, 9, 10, 11, 13, 16, 19, 23 mm |
| Materials of Construction: |
Steel, Stainless Steel |
| Connection Thread Size: |
Varies |
| Length: |
1.76 - 2.72 inch |
| Fitting Material: |
Steel |
| Product Style: |
Crimp (Permanent) |
High Pressure Fittings for PTFE High Pressure Hose - 94/95N Series 型号
| Part |
Compatible Hose |
Style |
Hose I.D. (inch) |
| 10694-10-10 |
943B or 944B |
Female JIC 37° - Swivel - Straight |
0.5 |
| 10694-12-12 |
943B or 944B |
Female JIC 37° - Swivel - Straight |
0.625 |
| 10694-16-16 |
943B or 944B |
Female JIC 37° - Swivel - Straight |
0.906 |
| 10694-6-6 |
943B or 944B |
Female JIC 37° - Swivel - Straight |
0.313 |
| 10694-8-8 |
943B or 944B |
Female JIC 37° - Swivel - Straight |
0.406 |
| 10695-12-12 |
950B or 955B |
Female JIC 37° - Swivel - Straight |
0.625 |
| 10695-4-4 |
950B or 955B |
Female JIC 37° - Swivel - Straight |
0.234 |
| 10695-6-6 |
950B or 955B |
Female JIC 37° - Swivel - Straight |
0.313 |
| 10695-8-8 |
950B or 955B |
Female JIC 37° - Swivel - Straight |
0.438 |
|
