Pneumatic Fittings

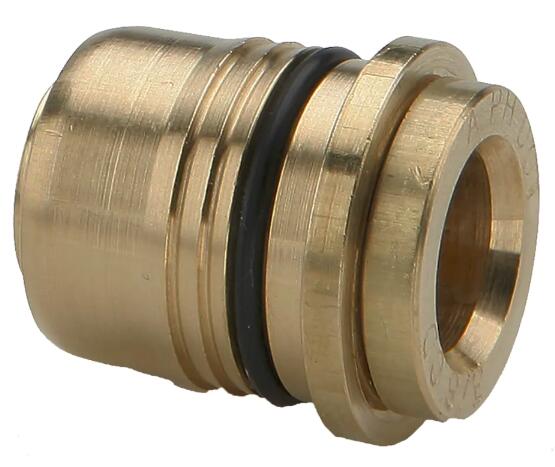

Push-to-Connect Cartridges, Transportation

Parker's SAE encapsulated cartridge allows the user to eliminate the space and labor required to install and assemble a conventional pipe thread fitting.

Parker has developed an SAE encapsulated cartridge guaranteeing the integrity of the sealing system before and after assembly in non-threaded cavities. The compact design of the one –piece cartridge enables automation of your manufacturing process and improves the reliability of your system. The cartridge becomes an integral of the component, eliminating threaded connections and the possibility of spiral leakage along the mating threads. Cartridges eliminate the tightening of compression nuts allowing for more compact assemblies and reduced assembly times. Cartridges reduce costly rework due to cross threading and over/under torqueing of the fitting. The SAE encapsulated cartridge meets performance requirements of D.O.T. FMVSS571.106 and SAE J2231 and the proposed dimensional standards of SAE J2494-4 in 6061-T6 aluminum. Cavity dimensions specified by SAE J2494-4 need to be adjusted slightly for optimum performance in material other than 6061-T.

Markets:
- Industrial
- Pneumatic
- Filtration
- Semi-conductor
- Life Science
- Automation
- Heavy Duty Truck

Features/Benefits:
- Self-centering of the cartridge in the cavity
- Push-in connection
- No thread to be machined for inserting the fitting into its cavity
- Seal pre-assembled, greased and protected
- Product protected against contamination, from manufacture to installation
- Packaging designed for automation assembly process
- SAE & NSF cartridges available

Applications:
- Air lines
- Water lines
- Beverage dispensing
- Cab controls
- Packaging
- Labeling
- Robotics

Technical Specifications

Push-to-Connect Cartridges, Transportation 型号
