Parker Fittings接头
Pneumatic Fittings

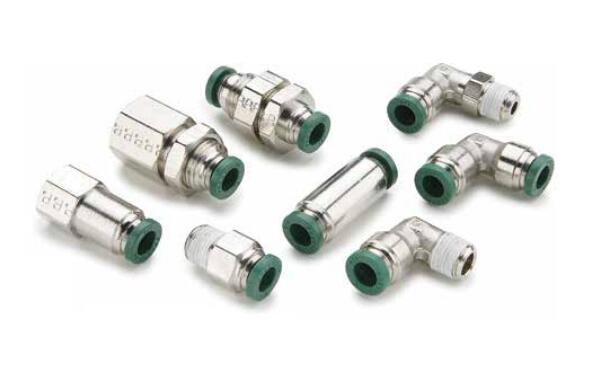

Push-to-Connect nickel plated instant fittings, Prestolok PLP

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.





Being the world's leader in push-to-connect fitting technology Parker's Prestolok PLP nickel plated brass fittings provide a simple way of connecting tubes to a fitting in order to create a fluid distribution network. Prestolok PLP push in metal fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.



Push-to-Connect nickel plated instant fittings, Prestolok PLP



Use with the following Parker Parflex Division tubing.
- Polyethylene
- Polypropylene
- Flexible Nylon
- Semi-rigid Nylon
- Polyurethane 90 Durometer Shore A
- Polyurethane >95 Durometer Shore A

Markets:
- Industrial
- Automotive
- Semi-conductor
- Packaging
- Robotics
- Climate control
- Textile
- Vacuum

Features and Benefits:
- Compact one-piece tube fitting
- Swivels on all male threaded shapes for assembly in tight places and for precise positioning
- Pre-applied white acrylic sealant
- NPT, UNF, BSPT, BSPP and Metric threads
- Corrosion resistance
- Push-to-Connect for fast assembly and disassembly
- 1/8" - 1/2", 4mm - 14mm

Applications:
- Air lines
- Inert gases
- Oil lines
- Vacuum lines

Technical Specifications:
- NPT Threads
- Stainless steel grab ring
- Nitrile seal
- Nickel plated brass body
- Polyacetal release button

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Application: Industrial, Automotive, Packaging, Air Lines, Inert Gases, Oil Lines and Vacuum
Connection Type: Push-to-Connect, Thread, NPTF, UNF, BSPT, BSPP
Shape: Various
Materials of Construction: Nickel Plated Brass
Minimum Operating Temperature: Tot 1910 °F, -18 °C
Maximum Operating Temperature: 200 °F, 93 °C
Maximum Operating Pressure: 300 psi, 20 bar
Tube Material: Polyethylene, Polypropylene, Nylon, Rigid Nylon, Polyurethane 90-95 Durometer
Seal Material: Nitrile
Gripping Ring Material: Stainless Steel
Button Material: Polyacetal
Vacuum Pressure Rating: Dependent on temperature and type of tubing Inch-Hg



Push-to-Connect nickel plated instant fittings, Prestolok PLP 型号

Part Shape Style Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Thread Size (mm) Connection 2 Style Internal Hex
164PLP-2 Tee Tube to Tube 2020/1/8 Push-to-Connect na 1/8 na Push-to-Connect No
164PLP-3 Tee Tube to Tube 2020/3/16 Push-to-Connect na 3/16 na Push-to-Connect No
164PLP-4 Tee Tube to Tube 2020/1/4 Push-to-Connect na 1/4 na Push-to-Connect No
164PLP-5 Tee Tube to Tube 2020/5/16 Push-to-Connect na 5/16 na Push-to-Connect No
164PLP-5/32 Tee Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
164PLP-6 Tee Tube to Tube 2020/3/8 Push-to-Connect na 3/8 na Push-to-Connect No
164PLP-8 Tee Tube to Tube 2020/1/2 Push-to-Connect na 1/2 na Push-to-Connect No
165PLP-2 90? Elbow Tube to Tube 2020/1/8 Push-to-Connect na 1/8 na Push-to-Connect No
165PLP-4 90? Elbow Tube to Tube 2020/1/4 Push-to-Connect na 1/4 na Push-to-Connect No
165PLP-5 90? Elbow Tube to Tube 2020/5/16 Push-to-Connect na 5/16 na Push-to-Connect No
165PLP-5/32 90? Elbow Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
165PLP-6 90? Elbow Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
165PLP-8 90? Elbow Tube to Tube 2020/1/2 Push-to-Connect na 1/2 na Push-to-Connect No
169PLP-2-0 90? Elbow Tube to Pipe 2020/1/8 Push-to-Connect 10-32 na na UNF No
169PLP-4-0 90? Elbow Tube to Pipe 2020/1/4 Push-to-Connect 10-32 na na UNF No
169PLP-5/32-0 90? Elbow Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
169PLPNS532-4LT 90? Elbow Tube to Pipe 5/32 Push-to-Connect 2001/4/28 na na SAE-LT No
172PLP-4-0 Branch Tee Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
4-1/4PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 1/4 BSPP No
4-1/8PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 1/8 BSPP No
4-3/8PLPHBF4-B Connector Tube to Pipe 1/4 Push-to-Connect na na 3/8 BSPP No
6-1/2PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect na na 1/2 BSPP No
6-1/4PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect na na 1/4 BSPP No
6-3/8PLPHBF4-B Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na BSPP No
62PLP-2 Union Tube to Tube 1/8 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-3 Union Tube to Tube 3/16 Push-to-Connect na 3/16 na Push-to-Connect No
62PLP-4 Union Tube to Tube 1/4 Push-to-Connect na 1/4 na Push-to-Connect No
62PLP-4-2 Union Tube to Tube 1/4 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-4-5/32 Union Tube to Tube 1/4 Push-to-Connect na 5/32 na Push-to-Connect No
62PLP-4-6 Union Tube to Tube 1/4 Push-to-Connect na 3/8 na Push-to-Connect No
62PLP-5 Union Tube to Tube 5/16 Push-to-Connect na 5/16 na Push-to-Connect No
62PLP-5/32 Union Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
62PLP-5/32-2 Union Tube to Tube 5/32 Push-to-Connect na 1/8 na Push-to-Connect No
62PLP-6 Union Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
62PLP-6-8 Union Tube to Tube 3/8 Push-to-Connect na 1/2 na Push-to-Connect No
62PLP-8 Union Tube to Tube 1/2 Push-to-Connect na 1/2 na Push-to-Connect No
62PLPBH-2 Bulkhead Tube to Tube 1/8 Push-to-Connect na 1/8 na Push-to-Connect No
62PLPBH-4 Bulkhead Tube to Tube 1/4 Push-to-Connect na 1/4 na Push-to-Connect No
62PLPBH-5 Bulkhead Tube to Tube 5/16 Push-to-Connect na 5/16 na Push-to-Connect No
62PLPBH-5/32 Bulkhead Tube to Tube 5/32 Push-to-Connect na 5/32 na Push-to-Connect No
62PLPBH-6 Bulkhead Tube to Tube 3/8 Push-to-Connect na 3/8 na Push-to-Connect No
62PLPBH-8 Bulkhead Tube to Tube 1/2 Push-to-Connect na 1/2 na Push-to-Connect No
66LF-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Female Pipe No
66LF-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Female Pipe No
66LF-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Female Pipe No
66LF-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Female Pipe No
66LF-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Female Pipe No
66LF-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66LF-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Female Pipe No
66LF-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Female Pipe No
66LF-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Female Pipe No
66LF-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66LF-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Female Pipe No
66LF-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Female Pipe No
66LF-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66LF-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Female Pipe No
66LF-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Female Pipe No
66LF-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Female Pipe No
66PLP-2-2 Connector Tube to Female Pipe 1/8 Push-to-Connect 1/8 na na Female Pipe No
66PLP-2-4 Connector Tube to Female Pipe 1/8 Push-to-Connect 1/4 na na Female Pipe No
66PLP-3-2 Connector Tube to Female Pipe 3/16 Push-to-Connect 1/8 na na Female Pipe No
66PLP-4-2 Connector Tube to Female Pipe 1/4 Push-to-Connect 1/8 na na Female Pipe No
66PLP-4-4 Connector Tube to Female Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66PLP-5-2 Connector Tube to Female Pipe 5/16 Push-to-Connect 1/8 na na Female Pipe No
66PLP-5-4 Connector Tube to Female Pipe 5/16 Push-to-Connect 1/4 na na Female Pipe No
66PLP-5/32-2 Connector Tube to Female Pipe 5/32 Push-to-Connect 1/8 na na Female Pipe No
66PLP-5/32-4 Connector Tube to Female Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66PLP-6-4 Connector Tube to Female Pipe 3/8 Push-to-Connect 1/4 na na Female Pipe No
66PLP-6-6 Connector Tube to Female Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66PLPBH-4-4 Bulkhead Tube to Female Pipe 1/4 Push-to-Connect 1/4 na na Female Pipe No
66PLPBH-5/32-4 Bulkhead Tube to Female Pipe 5/32 Push-to-Connect 1/4 na na Female Pipe No
66PLPBH-6-6 Bulkhead Tube to Female Pipe 3/8 Push-to-Connect 3/8 na na Female Pipe No
66PLPBH-8-6 Bulkhead Tube to Female Pipe 1/2 Push-to-Connect 3/8 na na Female Pipe No
68LFR-2-0 Round Body Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF Yes
68LFR-4-0 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF Yes
68LFR-4-1 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe Yes
68LFR-4-M5 Round Body Connector Tube to Pipe 1/4 Push-to-Connect na na M5x0.8 METRIC Yes
68LFR-4-M7 Round Body Connector Tube to Pipe 1/4 Push-to-Connect na na M7x1 METRIC Yes
68LFR-5/32-0 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF Yes
68PLP-2-0 Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF No
68PLP-4-0 Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
68PLP-5/32-0 Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
68PLP-5/32-4LT Connector Tube to Pipe 5/32 Push-to-Connect 1/4-28 na na SAE-LT No
68PLPR-2-0 Round Body Connector Tube to Pipe 1/8 Push-to-Connect 10-32 na na UNF No
68PLPR-4-0 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 10-32 na na UNF No
68PLPR-5/32-0 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 10-32 na na UNF No
8-1/2PLPHBF4-B Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na BSPP No
8-3/8PLPHBF4-B Connector Tube to Pipe 1/2 Push-to-Connect na na 3/8 BSPP No
W169PLP-2-1 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-2-2 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-2-4 90° Elbow Swivel Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-3-2 90° Elbow Swivel Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-4-1 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-4-2 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-4-4 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-4-6 90° Elbow Swivel Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-5-2 90° Elbow Swivel Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-5-4 90° Elbow Swivel Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-5/32-1 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W169PLP-5/32-2 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-5/32-4 90° Elbow Swivel Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-6-2 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLP-6-4 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-6-6 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-6-8 90° Elbow Swivel Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W169PLP-8-4 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W169PLP-8-6 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W169PLP-8-8 90° Elbow Swivel Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS-2-2 90? Elbow Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-4-2 90? Elbow Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-4-4 90? Elbow Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-5-2 90? Elbow Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS-5-4 90? Elbow Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-6-4 90? Elbow Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W169PLPNS-6-6 90? Elbow Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W169PLPNS-6-8 90? Elbow Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS-8-6 90? Elbow Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W169PLPNS-8-8 90? Elbow Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W169PLPNS5/32-2 90? Elbow Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W169PLPNS5/32-4 90? Elbow Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-2-2 Run Tee Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-4-2 Run Tee Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-4-4 Run Tee Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-4-6 Run Tee Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-5-2 Run Tee Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-5-4 Run Tee Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-5/32-2 Run Tee Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W171PLP-6-4 Run Tee Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W171PLP-6-6 Run Tee Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-8-6 Run Tee Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W171PLP-8-8 Run Tee Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W172PLP-2-2 Branch Tee Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-3-2 Branch Tee Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-4-2 Branch Tee Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-4-4 Branch Tee Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-4-6 Branch Tee Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-5-2 Branch Tee Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-5-4 Branch Tee Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-5/32-2 Branch Tee Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W172PLP-6-4 Branch Tee Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-6-6 Branch Tee Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-6-8 Branch Tee Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W172PLP-8-4 Branch Tee Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W172PLP-8-6 Branch Tee Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W172PLP-8-8 Branch Tee Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W68LF-2-1 Connector Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe Yes
W68LF-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-2-2R Connector Tube to Pipe 1/8 Push-to-Connect na na 1/8 BSPT Yes
W68LF-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-3-2R Connector Tube to Pipe 3/16 Push-to-Connect na na 1/8 BSPT Yes
W68LF-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-3-4R Connector Tube to Pipe 3/16 Push-to-Connect na na 1/4 BSPT Yes
W68LF-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-4-2R Connector Tube to Pipe 1/4 Push-to-Connect na na 1/8 BSPT Yes
W68LF-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-4-4R Connector Tube to Pipe 1/4 Push-to-Connect na na 1/4 BSPT Yes
W68LF-4-6 Connector Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-5-2R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/8 BSPT Yes
W68LF-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-5-4R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/4 BSPT Yes
W68LF-5-6 Connector Tube to Pipe 5/16 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-5-6R Connector Tube to Pipe 5/16 Push-to-Connect na na 3/8 BSPT Yes
W68LF-5-8R Connector Tube to Pipe 5/16 Push-to-Connect na na 1/2 BSPT Yes
W68LF-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-5/32-2R Connector Tube to Pipe 5/32 Push-to-Connect na na 1/8 BSPT Yes
W68LF-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-5/32-4R Connector Tube to Pipe 5/32 Push-to-Connect na na 1/4 BSPT Yes
W68LF-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe Yes
W68LF-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-6-4R Connector Tube to Pipe 3/8 Push-to-Connect na na 1/4 BSPT Yes
W68LF-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-6-6R Connector Tube to Pipe 3/8 Push-to-Connect na na 3/8 BSPT Yes
W68LF-6-8 Connector Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe Yes
W68LF-6-8R Connector Tube to Pipe 3/8 Push-to-Connect na na 1/2 BSPT Yes
W68LF-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe Yes
W68LF-8-4R Connector Tube to Pipe 1/2 Push-to-Connect na na 1/4 BSPT Yes
W68LF-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe Yes
W68LF-8-6R Connector Tube to Pipe 1/2 Push-to-Connect na na 3/8 BSPT Yes
W68LF-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe Yes
W68LF-8-8R Connector Tube to Pipe 1/2 Push-to-Connect na na 1/2 BSPT Yes
W68PLP-2-1 Connector Tube to Pipe 1/8 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-2-2 Connector Tube to Pipe 1/8 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-2-4 Connector Tube to Pipe 1/8 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-3-2 Connector Tube to Pipe 3/16 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-3-4 Connector Tube to Pipe 3/16 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-4-1 Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-4-2 Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-4-4 Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-4-6 Connector Tube to Pipe 1/4 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-5-2 Connector Tube to Pipe 5/16 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-5-4 Connector Tube to Pipe 5/16 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-5-6 Connector Tube to Pipe 5/16 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-5/32-1 Connector Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W68PLP-5/32-2 Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-5/32-4 Connector Tube to Pipe 5/32 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-6-2 Connector Tube to Pipe 3/8 Push-to-Connect 1/8 na na Male Pipe No
W68PLP-6-4 Connector Tube to Pipe 3/8 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-6-6 Connector Tube to Pipe 3/8 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-6-8 Connector Tube to Pipe 3/8 Push-to-Connect 1/2 na na Male Pipe No
W68PLP-8-4 Connector Tube to Pipe 1/2 Push-to-Connect 1/4 na na Male Pipe No
W68PLP-8-6 Connector Tube to Pipe 1/2 Push-to-Connect 3/8 na na Male Pipe No
W68PLP-8-8 Connector Tube to Pipe 1/2 Push-to-Connect 1/2 na na Male Pipe No
W68PLPR-4-1 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/16 na na Male Pipe No
W68PLPR-4-2 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/8 na na Male Pipe No
W68PLPR-4-4 Round Body Connector Tube to Pipe 1/4 Push-to-Connect 1/4 na na Male Pipe No
W68PLPR-5/32-1 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 1/16 na na Male Pipe No
W68PLPR-5/32-2 Round Body Connector Tube to Pipe 5/32 Push-to-Connect 1/8 na na Male Pipe No









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
