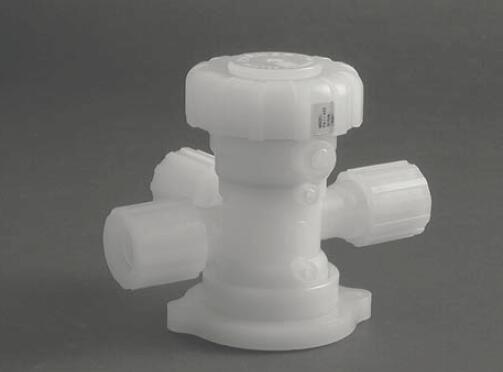

UHP PFA Air-operated Diaphragm (1/2 inch) 3 Way Valve – PV-11 Series
The PV-11 Series PFA Valve offers high leak integrity and excellent resistance to corrosion. It is available in 2-way and 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 100 psig).
The PV-11 Series is a 1/2 inch air-operated (AOP) PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those used in semiconductor manufacturing and clean-area operations. The valve is available in 2-way and 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance. With a multi-position mounting base, the 3-way configurations allow for increased mounting flexibility and connector fitting reduction, making them advantageous in areas where workable space is limited.
PV-11 Series PFA valves feature a Fluoropolymer-coated stainless steel spring which reduces the effects of corrosive environments and ensures compatibility with a wide range of aggressive process media. The valves are also equipped with a one-piece modified PTFE diaphragm, which provides higher cycle life when compared to conventional PTFE. For increased flexibility, the PV-11 Series can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly time and installation costs, while ensuring a leak-tight seal for reliability in applications where cleanliness is critical.
The tongue and groove seal of the PV-11 Series valve ensures a positive diaphragm to body seal, resulting in high cycle life. Its full 1/2 inch orifice offers maximum flow capability in a compact package. Flow capacities vary depending on port size and configuration type (up to 3.7 C?v).
The PV-11 Series is available with a submergible option, which isolates all valve components from the external environment and allows the valve to remain functional while operating in wet or gaseous corrosive environments.
UHP PFA Air-operated Diaphragm (1/2 inch) 3 Way Valve – PV-11 Series
Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Available in 2-way or 3-way configuration
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Full 1/2 inch orifice provides maximum flow capability in a compact package
- Fully functional from vacuum to 100 psig
- Actuation pressure: 60 – 100 psig
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)
Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)
Technical Specifications
| Wetted Material: |
PFA, Modified PTFE |
| Non-Wetted Material: |
PFA, PVDF, Viton Seals, PTFE Coated SS Springs |
| Pressure Rating: |
27" HG vacuum (913 mbar) to 80 psig (5.5 bar) (COM to NO) (NO to COM)27" HG vacuum (913 mbar) to 80 psig (5.5 bar) with 20 psig (1.4 bar) maximum back pressure (COM to NC) 27" HG vacuum (913 mbar) to 80 psig (5.5 bar) with 50 psig (3.4 bar) maximum back pressure (NC to COM) |
| Actuation Pressure: |
60 psig (4.2 bar) to 100 psig (7 bar) |
| Maximum Ambient Temperature: |
66 °C, 150 °F |
| Minimum Ambient Temperature: |
-17 °C, 0 °F |
| Maximum Fluid Temperature: |
130 °C, 266 °F |
| Minimum Fluid Temperature: |
-17 °C, 0 °F |
| Port 2 Size: |
1/2 (Parflare), 3/4 (Parflare), 1/2 (Parbond), 3/4 (Parbond), 1/2 (FNPT) inch |
| Port 3 Size: |
1/2 (Parflare), 3/4 (Parflare), 1/2 (Parbond), 3/4 (Parbond), 1/2 (FNPT) inch |
| Flow Rate: |
Cv: 1.9, 2.8 |
| Flow Coefficient: |
Kv: 27.1 to 40.0 L/min |
UHP PFA Air-operated Diaphragm (1/2 inch) 3 Way Valve – PV-11 Series 型号
|
