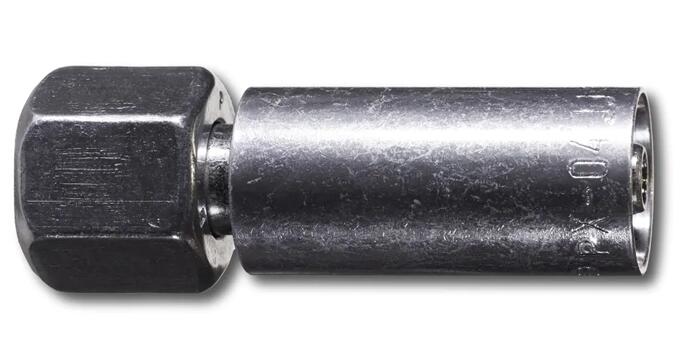

Crimped Thermoplastic Hydraulic Hose Fittings, PX Series
Parker PX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose types 2033T, 2040H and 2040N.
Parker PX Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.
Crimped Thermoplastic Hydraulic Hose Fittings, PX Series
Markets:
- Industrial
- Hydraulic
- Food & Beverage
Feature/Benefits:
- This fitting series perfectly matches the respective thermoplastic hose types for optimal product funktionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Industrial hydraulics
- Mobile hydraulics
- Media transfer
- Medium pressure paint spray applications
- Chemical industry
- Flexible connections between CO2 gas cylinder regulators and manifolds in CO2 fire extinguishing systems and for mobile or fixed CO2 extinguishers
- Pre-pressurisation lines for carbon dioxide, nitrogen and cabon dioxide - nitrogen mixtures in beverage dispensing equipment
- Suitable for hose types 2033T, 2040H and 2040N with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
5, 6, 8, 10, 12, 16, 20, 25, 3 mm |
| Hose I.D. (size): |
-3, -4, -5, -6, -8, -10, -12, -16, -2 |
| Hose Inside Diameter: |
3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1/8 inch |
| Connection Type: |
NPTF, UNF, NPSM, Metric, NA, BSP, BSPT, ? |
| Tube Outside Diameter: |
NA, 1/4, 3/8, 1/2, 3/4, 1 inch |
| Length: |
48, 52, 55, 57, 59, 64, 61, 66, 70, 77, 62, 71, 76, 78, 29, 40, 43, 45, 47, 49, 50, 56, 36, 44, 53, 74, 85, 99, 60, 84, 58, 79, 65, 72, 67, 81, 96, 114, 113, 100, 51, 54, 69, 73, 82, 26, 41, 42, 68, 86, 117, 120, 116, 32, 46, 83, 112, 38, 108, 63, 35 mm, 1,9, 2, 2,2, 2,3, 2,5, 2,4, 2,6, 2,8, 3, 3,1, 1,1, 1,6, 1,7, 1,8, 1,4, 2,1, 2,9, 3,3, 3,9, 3,2, 3,8, 4,5, 4,4, 2,7, 1, 3,4, 4,6, 4,7, 1,3, 1,5, 4,3 inch |
| Shape: |
Straight, 45° Elbow, 90° Elbow, 90° Compact Elbow |
| Product Style: |
National Pipe Tapered (NPT) male, SAE (JIC) 37° male, SAE (JIC) 37° female swivel, NPSM female swivel, Metric female swivel 24° with O-ring, Metric standpipe, BSP male 60° flare, BSP male taper pipe, BSP female swivel 60° cone, Metric female swivel 24°/60 |
