Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

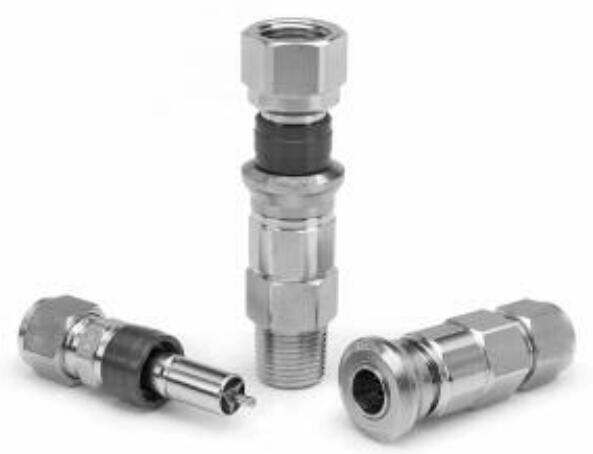

Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Nipples

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.





CPI Series Nipples (fluid or gas) vacuum to 3000 psi, connect with CPI Series Couplers.
Parker's CPI Series are stainless steel, push to connect quick couplings designed for use in process, power, and instrumentation applications. CPI Series nipples are available valved or unvalved. Valved nipples are color coded red for easy identification. Port ends include A-Lok and CPI tube fitting configurations.



Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Nipples





Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: 316 Stainless Steel
- Port Ends: Male NPT, Female NPT, A-Lok tube end, CPI tube end, Push-Lok hose barb
- Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene, Perfluoroelastomer

Markets:
- Instrumentation
- Chemical processing
- Laboratory testing
- Food processing
- Medical equipment
- Power Generation

Features/Benefits:
- Vacuum service to 50 millitorr or .05mm of Hg absolute pressure
- Fluorocarbon O-rings are compatible with many chemicals
- Positive valve stop prevents flow checking for smooth performance
- Push to connect with simple push pull disconnection
- Valved nipples are colored red for easy identification
- Valved guide aligns valve with seat to prevent leakage

Applications:
- Laboratory equipment
- Control panels
- Calibration systems
- Portable analyzers
- Gas chromatographs
- Micro-contamination devices



Technical Specifications

Body Size: 1/4, 3/8, 1/2 inch
Application: Fluids and gases, vacuum to medium pressure
Maximum Operating Pressure: Up to 3000 psi, Up to 207 bar
Brand: Parker
Fitting Connection Type: various
Materials of Construction: Stainless steel
Maximum Operating Temperature: 204 °C, 3000 °F
Vacuum Pressure Rating: Yes, 3000 mm-Hg
Valve Type: Poppet
Media: 3000
Coupling Half: Nipple
Minimum Operating Temperature: 3000 °F
Seal Material: Fluorocarbon
Hose Inside Diameter: 3000 inch



Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Nipples 型号

Part Maximum Working Pressure (psi) Body Size (inch) Valve Style Connection Type Thread Style Connection Thread Size (inch) Tube Size (inch)
2A-Q4P-SS 3000 1/4 Unvalved A-Lok tube end na na 1/8
2A-Q4VY-SS 3000 1/4 Poppet A-Lok tube end na na 1/8
2F-Q4P-SS 3000 1/4 Unvalved NPT Female 1/8 - 27 na
2F-Q4VY-SS 3000 1/4 Poppet NPT Female 1/8 - 27 na
2M-Q4P-SS 3000 1/4 Unvalved NPT Male 1/8 - 27 na
2M-Q4VY-SS 3000 1/4 Poppet NPT Male 1/8 - 27 na
2Z-Q4P-SS 3000 1/4 Unvalved CPI tube end na na 1/8
2Z-Q4VY-SS 3000 1/4 Poppet CPI tube end na na 1/8
4A-Q4P-SS 3000 1/4 Unvalved A-Lok tube end na na 1/4
4A-Q4VY-SS 3000 1/4 Poppet A-Lok tube end na na 1/4
4AH-Q4P-SS 3000 1/4 Unvalved A-Lok bulkhead tube end na na 1/4
4F-Q4P-SS 3000 1/4 Unvalved NPT Female 1/4 - 18 na
4F-Q4VY-SS 3000 1/4 Poppet NPT Female 1/4 - 18 na
4F-Q6P-SS 1500 3/8 Unvalved NPT Female 1/4 - 18 na
4F-Q6VY-SS 1500 3/8 Poppet NPT Female 1/4 - 18 na
4M-Q4P-SS 3000 1/4 Unvalved NPT Male 1/4 - 18 na
4M-Q4VY-SS 3000 1/4 Poppet NPT Male 1/4 - 18 na
4M-Q6P-SS 1500 3/8 Unvalved NPT Male 1/4 - 18 na
4M-Q6VY-SS 1500 3/8 Poppet NPT Male 1/4 - 18 na
4Z-Q4P-SS 3000 1/4 Unvalved CPI tube end na na 1/4
4Z-Q4VY-SS 3000 1/4 Poppet CPI tube end na na 1/4
4ZH-Q4VY-SS 3000 1/4 Poppet CPI bulkhead tube end na na 1/4
6A-Q6P-SS 1500 3/8 Unvalved A-Lok tube end na na 3/8
6A-Q6VY-SS 1500 3/8 Poppet A-Lok tube end na na 3/8
6F-Q6P-SS 1500 3/8 Unvalved NPT Female 3/8 - 18 na
6F-Q6VY-SS 1500 3/8 Poppet NPT Female 3/8 - 18 na
6M-Q6P-SS 1500 3/8 Unvalved NPT Male 3/8 - 18 na
6M-Q6VY-SS 1500 3/8 Poppet NPT Male 3/8 - 18 na
6PL-Q8VY-SS 750 1/2 Poppet Push-Lok hose barb na na na
6Z-Q6P-SS 1500 3/8 Unvalved CPI tube end na na 3/8
6Z-Q6VY-SS 1500 3/8 Poppet CPI tube end na na 3/8
8A-Q8P-SS 750 1/2 Unvalved A-Lok tube end na na 1/2
8A-Q8VY-SS 750 1/2 Poppet A-Lok tube end na na 1/2
8F-Q8P-SS 750 1/2 Unvalved NPT Female 1/2 - 14 na
8F-Q8VY-SS 750 1/2 Poppet NPT Female 1/2 - 14 na
8M-Q8P-SS 750 1/2 Unvalved NPT Male 1/2 - 14 na
8M-Q8VY-SS 750 1/2 Poppet NPT Male 1/2 - 14 na
8Z-Q8P-SS 750 1/2 Unvalved CPI tube end na na 1/2
8Z-Q8VY-SS 750 1/2 Poppet CPI tube end na na 1/2
