Parker Quick Couplings

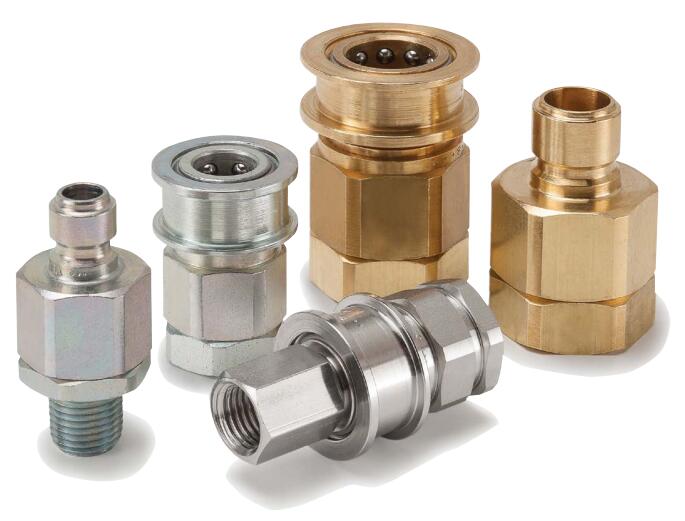

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Nipples

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

EA Series Nipples, (hydraulic, water, gas) vacuum up to 3,000 psi, connect with EA Series Couplers.
Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Nipples

Technical Characteristics:
- Sizes: 1/4” - 3/4”
- Materials: Steel, Brass, 316 Stainless Steel
- Port Ends: Female NPTF, Male NPT
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Other nipple options include: aluminum material, sizes up to 4", and additional port end configuration options

Markets:
- Industrial
- Construction
- Molding
- Testing

Features/Benefits:
- Multi-purpose coupling with vacuum capability
- Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
- Male and female port options

Applications:
- Test lab equipment
- Autoclave applications
- Aircraft fabrication
- Plastic molding
- Horizontal boring and dewatering

Technical Specifications

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Nipples 型号
