Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

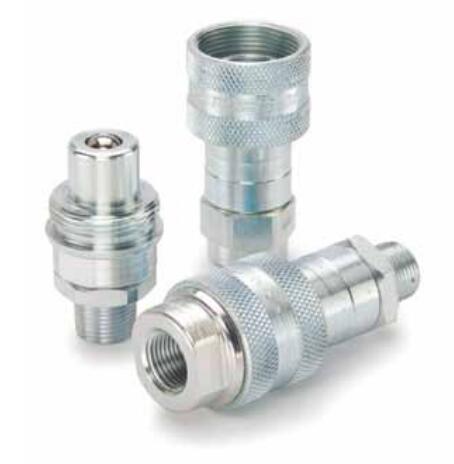

Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.





3000 Series Nipples (hydraulic) 10,000 psi, connect with 3000 Series Couplers. These rugged thread to connect, high pressure quick couplings are manually threaded together to open the ball valves and make the connection. The durable coupler interface seal is polyurethane.



Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples



Technical Characteristics:
- Sizes: 1/4” & 3/8”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF
- Seal: Polyurethane

Markets:
- Rescue Equipment
- Construction

Features/Benefits:
- Rugged and secure threaded connection interchanges with similar hand tool couplings
- Hard chrome alloy ball valves
- Polyurethane seal resists against high pressure extrusion
- Positive valve stop prevents flow checking for a smooth performance

Applications:
- High pressure rescue tools
- Hydraulic rams
- Portable hydraulic hand tools
- Crimping equipment



Technical Specifications

Body Size: 1/4, 3/8 inch
Maximum Operating Pressure: 10000 psi, 689 bar
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Materials of Construction: Steel
Maximum Operating Temperature: 110 °C, 230 °F
Vacuum Pressure Rating: No
Flow Rate: 3 to 6 Gal/min
Media: Hydraulic
Coupling Half: Nipple
Minimum Operating Temperature: -22 °F
Seal Material: Polyurethane
Valve Type: Ball
Application: Hydraulic, high pressure
Plating Type: Zinc with clear trivalent chromate



Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples 型号

Part Body Size (inch) Thread Style Connection Thread Size (inch) Connection Type
3010-2 1/4 Female 1/4 - 18 NPTF
3010-3 3/8 Female 3/8 - 18 NPTF
3010-3-230 3/8 Male 3/8 - 18 NPTF
