Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

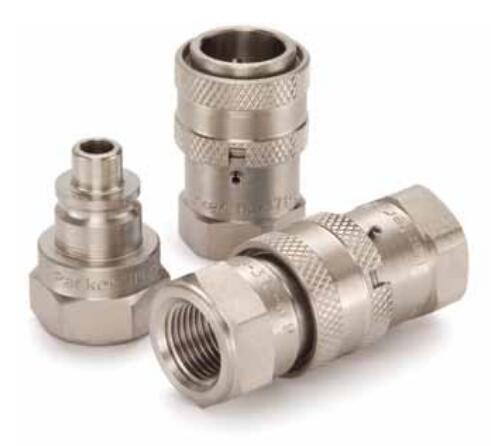

High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples

Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.





HO Series Nipples (hydraulic) up to 15,000 psi connect with HO Series Couplers.
Parker's HO Series are high pressure, steel, high flow quick couplings with manual sleeves. Couplers and nipples are unvalved, resulting in straight through, unrestricted flow. Electroless nickel plating provides corrosion resistance and sleeve lock guards against accidental disconnection.



High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples



Technical Characteristics:
- Sizes: 1/4”, 3/8"", 1/2”
- Material: Steel with electroless nickel plating
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Pulp and paper
- Oil and gas
- Testing

Features/Benefits:
- Sleeve lock guards against accidental disconnection
- Straight through, unvalved design provides full flow with minimal pressure drop
- Electroless nickel plating adds corrosion resistance

Applications:
- Paper and pulp processing
- Refinery systems
- Testing systems



Technical Specifications

Body Size: 1/4, 3/8, 1/2 inch
Maximum Operating Pressure: Up to 15000 psi, Up to 1034 bar
Valve Type: No Valve, Unvalved
Brand: Parker
Fitting Connection Type: Female Thread
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Flow Rate: 3 to 12 Gal/min
Media: Hydraulic
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Thread Size: Female
Connection Type: NPTF
Application: Hydraulic, high pressure, high flow
Plating Type: Electroless nickel



High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples 型号

Part Maximum Working Pressure (psi) Body Size (inch) Connection Thread Size (inch)
HO-252-4FP 15000 1/4 1/4 - 18
HO-372-6FP 15000 3/8 3/8 - 18
HO-502-8FP 10000 1/2 1/2 - 14
