Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

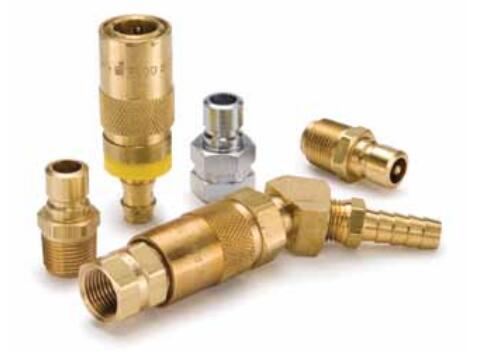

Mold Coolant Quick Couplings, Compact and Extension Thread Ends (water, oil, coolant) up to 200 psi - Moldmate Series Nipples

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.





Moldmate Series Nipples (water, oil, coolant) up to 200 psi connect with Moldmate Series Couplers.
Parker's Moldmate Series come in valved or unvalved styles and are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved nipples have fluorocarbon poppet seals and must be used with valved couplers.

Nipples are available in sizes, materials, and configurations to be compatible with molding systems. Steel or brass material options and compact or several extension lengths to choose from.



Mold Coolant Quick Couplings, Compact and Extension Thread Ends (water, oil, coolant) up to 200 psi - Moldmate Series Nipples



Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Brass, Steel
- Port Ends: Female NPTF, Male NPTF
- Valve Seal: Fluorocarbon
- Other Nipple options include: Extended lengths

Markets:
- Industrial die casting
- Injection molding

Features/Benefits:
- Compact nipples can be recessed below the mold surface, enabling efficient and space saving mold storage
- Fluorocarbon valve seal for oil based media
- Extension nipples are available in several thread sizes and lengths

Applications:
- Mold coolant lines
- Die casting equipment



Technical Specifications

Body Size: 1/4, 3/8, 1/2 inch
Maximum Operating Pressure: 200 psi, 14 bar
Application: Mold coolant
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Materials of Construction: Steel, Brass
Maximum Operating Temperature: 204 °C, 400 °F
Vacuum Pressure Rating: No
Valve Type: Poppet, No Valve
Flow Rate: 3 to 12 Gal/min
Media: Hydraulic, low pressure
Coupling Half: Nipple
Minimum Operating Temperature: -20 to -15 °F
Seal Material: Fluorocarbon
Connection Type: NPTF
Plating Type: Zinc with clear trivalent chromate



Mold Coolant Quick Couplings, Compact and Extension Thread Ends (water, oil, coolant) up to 200 psi - Moldmate Series Nipples 型号

Part Valve Style Body Size (inch) Body Material Thread Style Connection Thread Size (inch) Length (inch)
BPN251F Unvalved 1/4 Brass Female 1/8 - 27 0.97
BPN252F Unvalved 1/4 Brass Female 1/4 - 18 1.28
BPN253F Unvalved 1/4 Brass Female 3/8 - 18 1.41
BPN352F Unvalved 3/8 Brass Female 1/4 - 18 1.48
BPN353F Unvalved 3/8 Brass Female 3/8 - 18 1.58
BPV252 Poppet 1/4 Brass Male 1/4 - 18 1.21
BPV353 Poppet 3/8 Brass Male 3/8 - 18 1.48
PN250 Unvalved 1/4 Brass Male 1/16 - 27 0.94
PN250-25 Unvalved 1/4 Brass Male (extended length) 1/16 - 27 2.50
PN250-40 Unvalved 1/4 Brass Male (extended length) 1/16 - 27 4.00
PN250-55 Unvalved 1/4 Brass Male (extended length) 1/16 - 27 5.50
PN251 Unvalved 1/4 Brass Male 1/8 - 27 0.94
PN251-25 Unvalved 1/4 Brass Male (extended length) 1/8 - 27 2.50
PN251-40 Unvalved 1/4 Brass Male (extended length) 1/8 - 27 4.00
PN251-55 Unvalved 1/4 Brass Male (extended length) 1/8 - 27 5.50
PN251-70 Unvalved 1/4 Brass Male (extended length) 1/8 - 27 7.00
PN251-85 Unvalved 1/4 Brass Male (extended length) 1/8 - 27 8.50
PN251F Unvalved 1/4 Steel Female 1/8 - 27 0.97
PN251S Unvalved 1/4 Steel Male 1/8 - 27 0.94
PN252 Unvalved 1/4 Brass Male 1/4 - 18 1.13
PN252-25 Unvalved 1/4 Brass Male (extended length) 1/4 - 18 2.50
PN252-40 Unvalved 1/4 Brass Male (extended length) 1/4 - 18 4.00
PN252-55 Unvalved 1/4 Brass Male (extended length) 1/4 - 18 5.50
PN252-70 Unvalved 1/4 Brass Male (extended length) 1/4 - 18 7.00
PN252-85 Unvalved 1/4 Brass Male (extended length) 1/4 - 18 8.50
PN252F Unvalved 1/4 Steel Female 1/4 - 18 1.28
PN252S Unvalved 1/4 Steel Male 1/4 - 18 1.13
PN253 Unvalved 1/4 Brass Male 3/8 - 18 1.19
PN253F Unvalved 1/4 Steel Female 3/8 - 18 1.41
PN253S Unvalved 1/4 Steel Male 3/8 - 18 1.19
PN351-25 Unvalved 3/8 Brass Male (extended length) 1/8 - 27 2.50
PN351-40 Unvalved 3/8 Brass Male (extended length) 1/8 - 27 4.00
PN351-55 Unvalved 3/8 Brass Male (extended length) 1/8 - 27 5.50
PN351-70 Unvalved 3/8 Brass Male (extended length) 1/8 - 27 7.00
PN351-85 Unvalved 3/8 Brass Male (extended length) 1/8 - 27 8.50
PN352 Unvalved 3/8 Brass Male 1/4 - 18 1.34
PN352-25 Unvalved 3/8 Brass Male (extended length) 1/4 - 18 2.50
PN352-40 Unvalved 3/8 Brass Male (extended length) 1/4 - 18 4.00
PN352-55 Unvalved 3/8 Brass Male (extended length) 1/4 - 18 5.50
PN352-70 Unvalved 3/8 Brass Male (extended length) 1/4 - 18 7.00
PN352-85 Unvalved 3/8 Brass Male (extended length) 1/4 - 18 8.50
PN352F Unvalved 3/8 Steel Female 1/4 - 18 1.48
PN352S Unvalved 3/8 Steel Male 1/4 - 18 1.34
PN353 Unvalved 3/8 Brass Male 3/8 - 18 1.38
PN353-25 Unvalved 3/8 Brass Male (extended length) 3/8 - 18 2.50
PN353-40 Unvalved 3/8 Brass Male (extended length) 3/8 - 18 4.00
PN353-55 Unvalved 3/8 Brass Male (extended length) 3/8 - 18 5.50
PN353-70 Unvalved 3/8 Brass Male (extended length) 3/8 - 18 7.00
PN353-85 Unvalved 3/8 Brass Male (extended length) 3/8 - 18 8.50
PN353F Unvalved 3/8 Steel Female 3/8 - 18 1.58
PN353S Unvalved 3/8 Steel Male 3/8 - 18 1.38
PN354 Unvalved 3/8 Brass Male 1/2 - 14 1.59
PN553 Unvalved 1/2 Brass Male 3/8 - 18 1.53
PN554 Unvalved 1/2 Brass Male 1/2 - 14 1.70
PN556 Unvalved 1/2 Brass Male 3/4 - 14 1.75
