Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

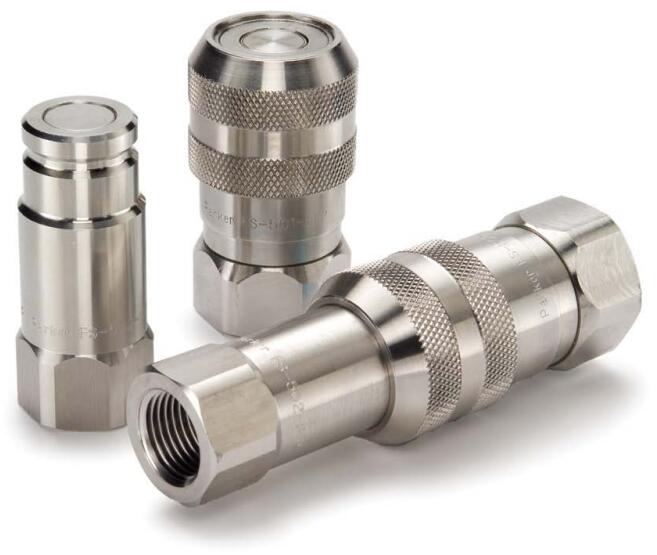

Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Couplers

Parker's stainless steel non-spill quick couplers and nipples are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.





FS Series Couplers (2000 psi), connect with FS Series Nipples.
Parker's FS Series are stainless steel non-spill quick couplings with flush face valves designed to minimize spillage and air inclusion when connecting or disconnecting to result in minimal environmental contamination. These quick couplings are ideal for closed system transfer and dispensing of chemicals and other fluids. FS Couplers and nipples are available in a range of sizes.



Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Couplers





Technical Characteristics:
- Sizes: 1/4” – 1”
- Materials: 316 Stainless Steel
- Port Ends: Male NPT, Female NPTF, Female UNF
- Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene

Markets:
- Chemical processing and handling
- Food processing
- Corrosive fluid handling
- Agriculture

Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- Corrosion resistant 316 stainless steel material
- Fluorocarbon seals are compatible with many chemicals
- Non-spill valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines

Applications:
- Chemical dispensing systems
- Chemical processing
- Food processing
- Corrosive media transfer



Technical Specifications

Body Size: 1/4, 3/8, 1/2, 3/4, 1 inch
Maximum Operating Pressure: 2000 psi, 138 bar
Application: Fluid and chemical transfer
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Materials of Construction: Stainless steel
Maximum Operating Temperature: 204 °C, 400 °F
Vacuum Pressure Rating: No
Flow Rate: 3 to 50 Gal/min
Media: Hydraulic
Coupling Half: Coupler
Minimum Operating Temperature: -15 °F
Seal Material: Fluorocarbon
Valve Type: Non-spill
Sleeve Type: Push to connect
Lock Type: Locking balls



Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Couplers 型号

Part Body Size (inch) Thread Style Connection Thread Size (inch) Connection Type
FS-1001-16FO 1 Female 1 5/16 - 12 UNF
FS-1001-16FP 1 Female 1 - 11 1/2 NPT
FS-251-4FP 1/4 Female 1/4 - 18 NPT
FS-251-4MP 1/4 Male 1/4 - 18 NPTF
FS-251-6FO 1/4 Female 9/16 - 18 UNF
FS-371-6FP 3/8 Female 3/8 - 18 NPT
FS-371-8FO 3/8 Female 3/4 - 16 UNF
FS-501-10FO 1/2 Female 7/8 - 14 UNF
FS-501-8FP 1/2 Female 1/2 - 14 NPT
FS-751-12FO 3/4 Female 1 1/16 - 12 UNF
FS-751-12FP 3/4 Female 3/4 - 14 NPT
