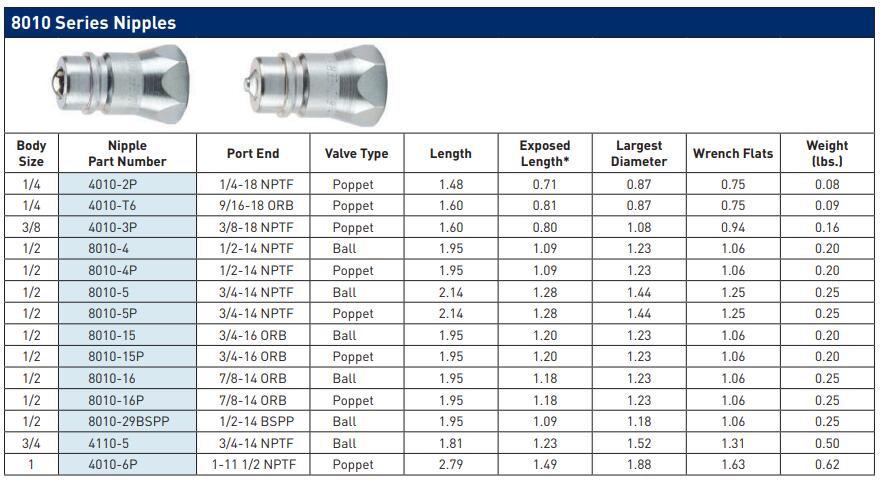

Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples
Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.
8010 Series Nipples (hydraulic) 3000 psi, connect with 1/2 "" size 4000, 4200, 5000, 8200, 9200,Series Couplers and are interchangeable with other products complying with ISO 5675 requirements. Parker's 8010 Nipples are available with a ball valve, poppet valve, or pressure relieving (connect under pressure) valve. They are the universal standard male tip of the agricultural industry, commonly referred to as the Pioneer tip.
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Agriculture
- Industrial
- Construction
Features/Benefits:
- Globally interchanges with any other nipples or tips conforming to ISO 5675
- Valve option styles include ball, poppet, and connect under pressure (DC) poppet
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Shielded valve and positive valve stop prevents flow checking for smooth performance
- DC valve version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side
Applications:
- Tractor attachments
- Agricultural farm equipment
- Hydraulic Loaders
- Add-on hydraulic circuits
- Hydraulic tools
- Ag/mobile attachments
Technical Specifications
| Application: |
Hydraulic, general purpose |
| Maximum Operating Pressure: |
3000 psi, 207 bar |
| Brand: |
Pioneer |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
ISO 5675 |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Valve Type: |
Poppet, Ball, Connect under pressure poppet |
| Body Size: |
1/2 inch |
| Flow Rate: |
12 Gal/min |
| Seal Material: |
Nitrile | na |
| Media: |
Hydraulic |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Thread Size: |
Female |
| Plating Type: |
Zinc with clear trivalent chromate |
| Specifications Met: |
ISO 5675 |
Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples 型号
|
